WIRING & CLAMP

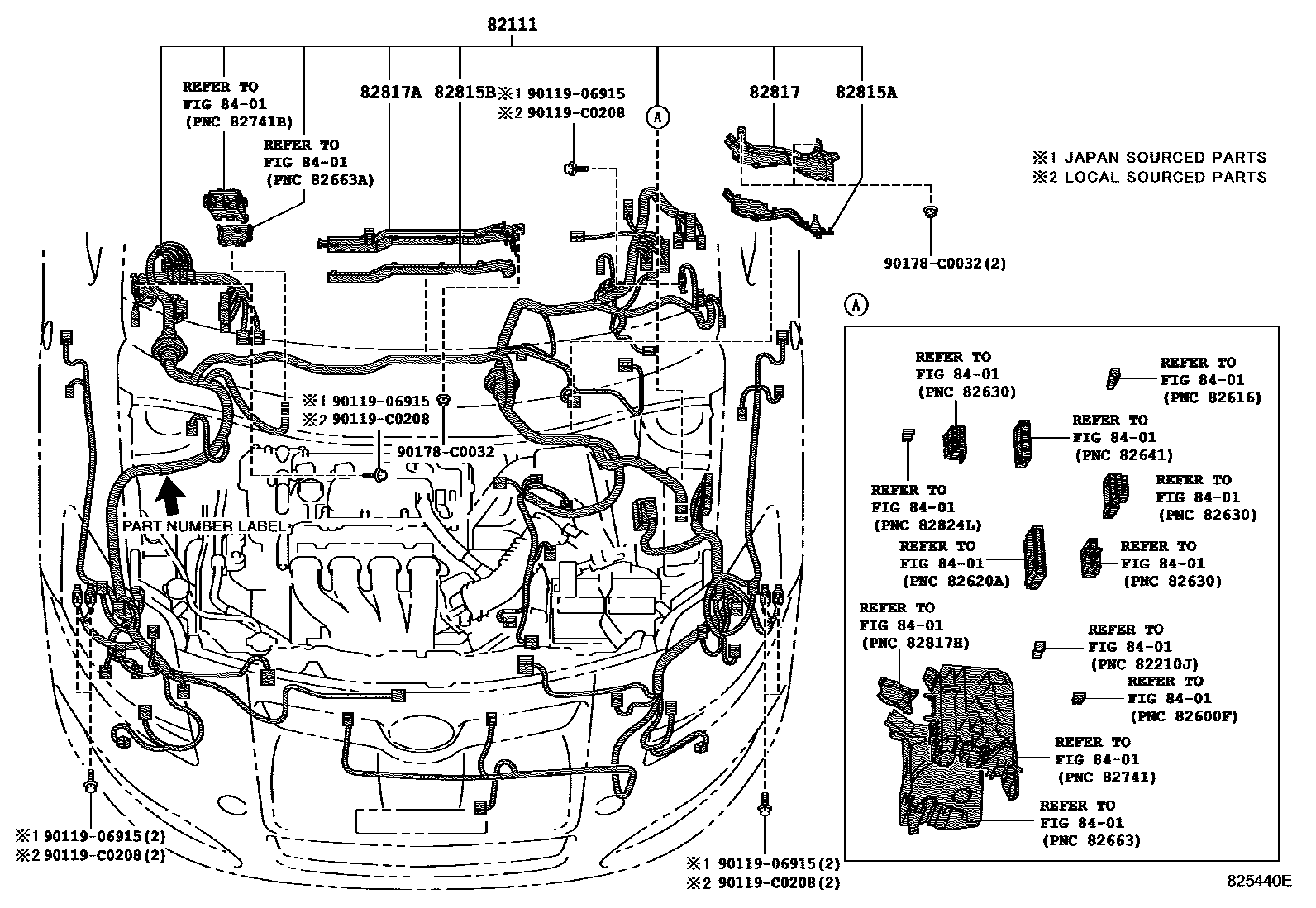

Parts diagram

82111WIRE, ENGINE ROOM MAIN

main82111-0Z750i200705-201005

main82111-0Z751i201005-201009

main82115-02U20i200705-201005

main82115-02U21i201005-201009

main82115-02U30i200802-201005

main82115-02U31i201005-201009

main82115-02U50i200705-201005

main82115-02U51i201005-201009

main82116-02E10i201009-201203

main82116-02E11i201203

main82116-02E30i201009

main82116-02E60i201009-201104

main82116-02E61i201104

main82116-02F00i201009-201203

main82116-02F01i201203-201301

main82116-02F10i201009-201203

main82116-02F11i201203-201301

main82111-0Z350supersedes 82115-02U70i200802-201005

W(NAVI,*BGM,*CRC,*CRS & HEATER MIRROR)

main82111-0Z351supersedes 82115-02U71i201005-201009

W(NAVI,*BGM,*CRC,*CRS & HEATER MIRROR)

main82115-02U40supersedes 82116-02S72i200705-201005

W(NAVI,*BGM,*CRC,*CRS & HEATER MIRROR); WITH(*CRC,*CRS & HEATER MIRROR)

main82115-02U41supersedes 82116-02S72i201005-201009

W(NAVI,*BGM,*CRC,*CRS & HEATER MIRROR); WITH(*CRC,*CRS & HEATER MIRROR)

main82115-02U60supersedes 82115-02U61i200705-201005

W(NAVI,*BGM,*CRC,*CRS & HEATER MIRROR); WITH(*CRC,*CRS & HEATER MIRROR)

main82115-02U61i201005-201009

W(NAVI,*BGM,*CRC,*CRS & HEATER MIRROR); WITH(*CRC,*CRS & HEATER MIRROR)

main82116-02E20i201009-201104

A PACKAGE&OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED)W/HEATER; B PACKAGE&OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED)W/HEATER

main82116-02E90i201009-201104

A PACKAGE&OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED)W/HEATER; B PACKAGE&OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED)W/HEATER

main82116-02S70i201009-201104

OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED)W/HEATER

main82116-02S71i201104-201203

OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED)W/HEATER

main82116-02S72i201203

OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED)W/HEATER

main82116-02S80i201009-201104

OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED)W/HEATER

main82116-02S81i201104-201203

OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED)W/HEATER

main82116-02S82i201203

OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED)W/HEATER

82815ACOVER, WIRING HARNESS PROTECTOR

main82815-12130i200705-201009

82815BCOVER, WIRING HARNESS PROTECTOR

main82815-12140i201009-201203

82817PROTECTOR, WIRING HARNESS, NO.1

main82817-12A90i201009

82817APROTECTOR, WIRING HARNESS, NO.2

main82817-12B00i201009

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9011906915

main90119-06915

90119C0208

main90119-C0208

90178C0032

main90178-C0032

9 parts on this diagram · 11 diagrams in section
