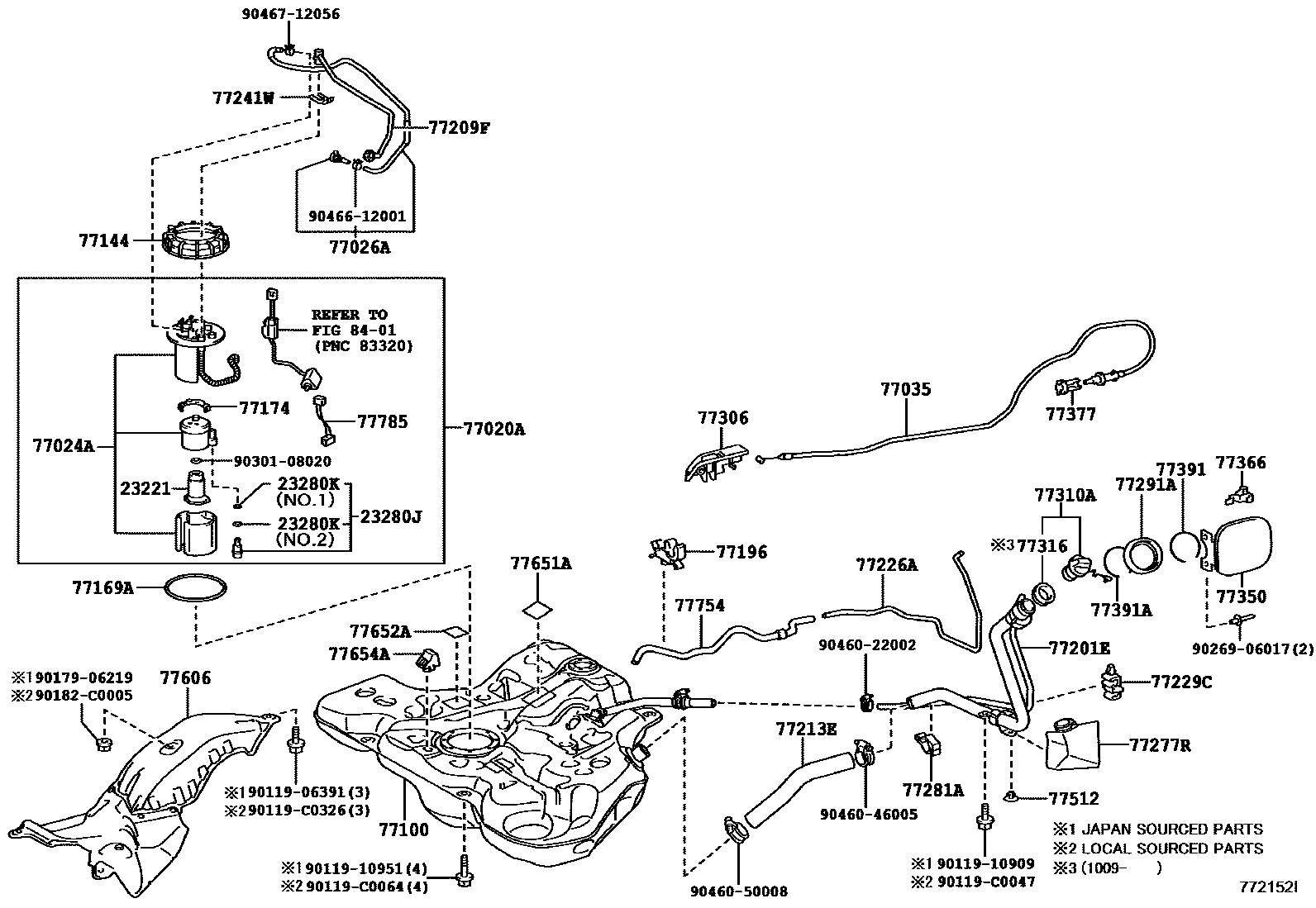

FUEL TANK & TUBE

0001 1FUEL TANK 0002 1FUEL TUBE

23221PUMP, FUEL

main23220-0T030i1ZRFE..ZRE151200705-201009

main23220-0T031i1ZRFE..ZRE151201203

main23220-0T040i2ZRFE..ZRE152200705-200708

main23220-0T090i2ZRFE..ZRE152200709-201009

main23220-0T091i2ZRFE,3ZRFE..ZRE152,153..GLI,GLX,GLXI201203

23280JREGULATOR ASSY, FUEL PRESSURE

main23280-21010i1ZRFE,2ZRFE..ZRE15#200705-201009

23280KRING, O(FOR FUEL PRESSURE REGULATOR)

main90301-04013i1ZRFE,2ZRFE..ZRE15#200705-201009

NO.1:REFER ILLUST.

main90301-15024i1ZRFE,2ZRFE,3ZRFE..ZRE15#..GL,GLI,GLX,GLXI201009

NO.2:REFER ILLUST.

77020ATUBE ASSY, FUEL SUCTION W/PUMP & GAGE

main77020-02240iZRE151200705-201009

77024APLATE SUB-ASSY, FUEL SUCTION

main77024-02120iZRE15#200705-201009

77026ATUBE SUB-ASSY, FUEL EVAPORATION, NO.1

main77026-02030iZRE15#200705-201009

77035CABLE SUB-ASSY, FUEL LID LOCK CONTROL

main77035-02240iZRE15#200705-201009

main77035-02241iZRE15#..GL,GLI,GLXI201305

77100TANK ASSY, FUEL

main77001-02310iZRE15#200705-201009

77144RETAINER, FUEL PUMP GAUGE

main77144-0H010iZRE15#..GL,GLI,GLX,GLXI201009

77169AGASKET, FUEL SUCTION TUBE SET

main77169-0D030iZRE15#200705-201009

77174SUPPORT, FUEL SUCTION, NO.1

main77174-02060iZRE15#200705-201009

77196CLAMP, EVAPORATION VENT TUBE, NO.1

main77196-02080iZRE15#200705-201009

77201EPIPE SUB-ASSY, FUEL TANK FILLER

main77201-02220iZRE15#200705-201009

77209FTUBE SUB-ASSY, FUEL TANK MAIN

main77209-02170iZRE15#200705-201009

77213EHOSE, FUEL TANK TO FILLER PIPE

main77213-02100iZRE15#200705-201009

77226ATUBE, FUEL TANK BREATHER, NO.6

main77226-02030iZRE15#200705-201009

77229CCLAMP, BREATHER TUBE

main77229-12070iZRE15#200705-201009

77241WCLIP, TUBE JOINT

main77241-32060iZRE15#200705-201009

77277RPROTECTOR, FUEL TANK FILLER PIPE

main77277-12180iZRE152..GLS,GLXS201009-201203

77281ACLAMP, FUEL FILLER PIPE

main77281-12100iZRE152..GLS,GLXS201009-201203

77291ASHIELD, FUEL TANK FILLER PIPE

main77291-02100iZRE15#200705-201009

77306LEVER SUB-ASSY, FUEL LID LOCK OPEN

main64606-06100iZRE15#200705-201009

77310ACAP ASSY, FUEL TANK

main77300-0F010iZRE15#..GL,GLI,GLX,GLXI201201

main77300-52030iZRE15#201009-201112

77316GASKET, FUEL TANK CAP

main77316-0F020iZRE15#..GL,GLI,GLX,GLXI201201

main77316-52040iZRE15#201009-201201

77350LID ASSY, FUEL FILLER OPENING

main77350-02050iZRE15#..GL,GLI,GLX,GLXI201009

77366SPRING, FUEL FILLER OPENING LID HINGE

main77360-30080iZRE152..GLS,GLXS201009-201203

77377RETAINER, FUEL FILLER OPENING LID LOCK

main77377-06040iZRE152..GLS,GLXS201009-201203

77391RING, FUEL INLET BOX

main77391-0R030iZRE15#201402-201406

(L)

main77391-12020iZRE15#200705-201009

77391ARING, FUEL INLET BOX

main77391-53010iZRE15#200705-201009

77512BRACKET, FUEL TANK, REAR

main77512-35140iZRE15#200705-201009

77606PROTECTOR SUB-ASSY, FUEL TANK, NO.1

main77606-02050iZRE15#200705-201009

77651ACUSHION, FUEL TANK, NO.1

main77651-12070iZRE15#200705-201009

77652ACUSHION, FUEL TANK, NO.2

main77652-45020×3iZRE15#200705-201009

77654ACUSHION, FUEL TANK, NO.4

main77654-12090iZRE15#200705-201009

77754HOSE, CHARCOAL CANISTER OUTLET, NO.1

main77754-02060iZRE15#200705-201009

77785HARNESS, FUEL PUMP

main77785-02140iZRE15#..GL,GLI,GLXI201309

main77785-12020iZRE15#200705-201009

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9011906391

main90119-06391

9011910909

main90119-10909

9011910951

main90119-10951

90119C0047

main90119-C0047

90119C0064

main90119-C0064

90119C0326

main90119-C0326

9017906219

main90179-06219

90182C0005

main90182-C0005

9026906017

main90269-06017

9030108020

main90301-08020

9046022002

main90460-22002

9046046005

main90460-46005

9046050008

main90460-50008

9046612001

main90466-12001

9046712056

main90467-12056

52 parts on this diagram · 2 diagrams in section
