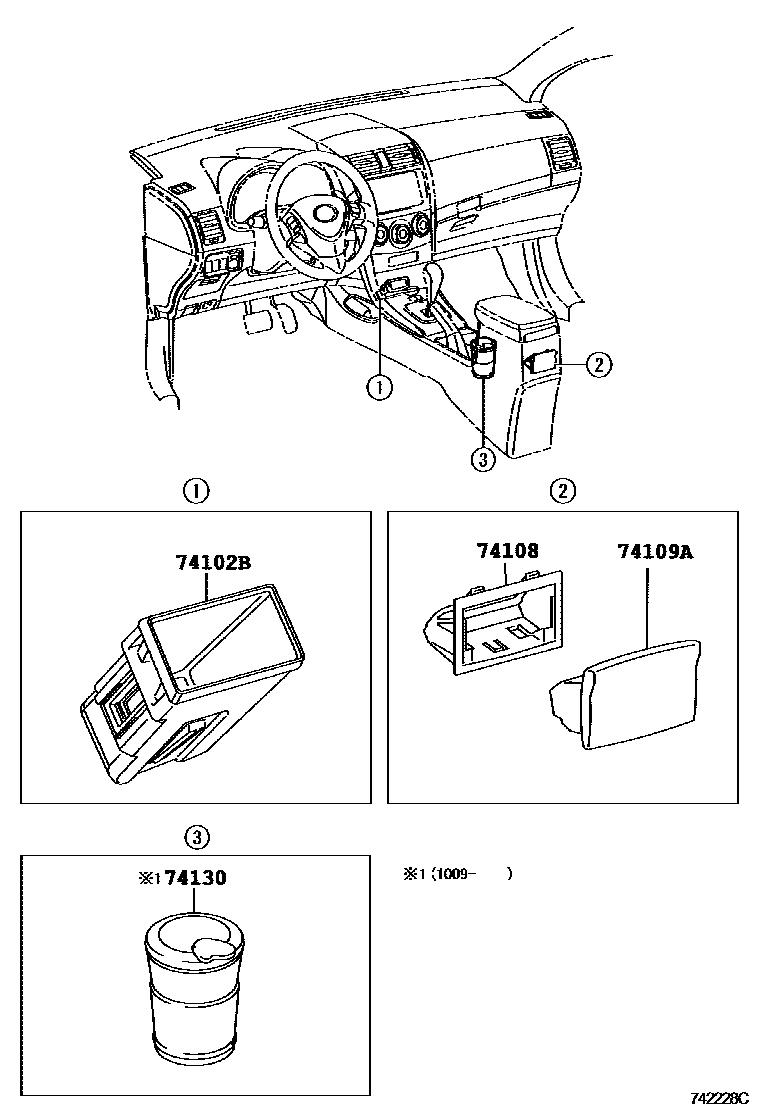

ASH RECEPTACLE

74102BBOX SUB-ASSY, FRONT ASH RECEPTACLE

74108RETAINER SUB-ASSY, REAR ASH RECEPTACLE

74109ABOX SUB-ASSY, ASH RECEPTACLE

main74109-20100-B2i201009-201203

DK.GRAY,TRIM1#

main74109-20100-E2i201009-201406

GREGE,TRIM4#

74130RECEPTACLE ASSY, REAR ASH

main74130-02060i201009-201202

AUDIO (OVERSEAS MARKET)-AM/FM CD/BLUETOOTH 6SPEAKER; AUDIO (OVERSEAS MARKET)-AVN 6SPEAKER

main74130-02070i201202-201203

AUDIO (OVERSEAS MARKET)-AM/FM CD/BLUETOOTH 6SPEAKER; AUDIO (OVERSEAS MARKET)-AVN 6SPEAKER

AUDIO (OVERSEAS MARKET)-AM/FM CD/BLUETOOTH 6SPEAKER

4 parts on this diagram · 1 diagram in section
