FRONT SEAT & SEAT TRACK

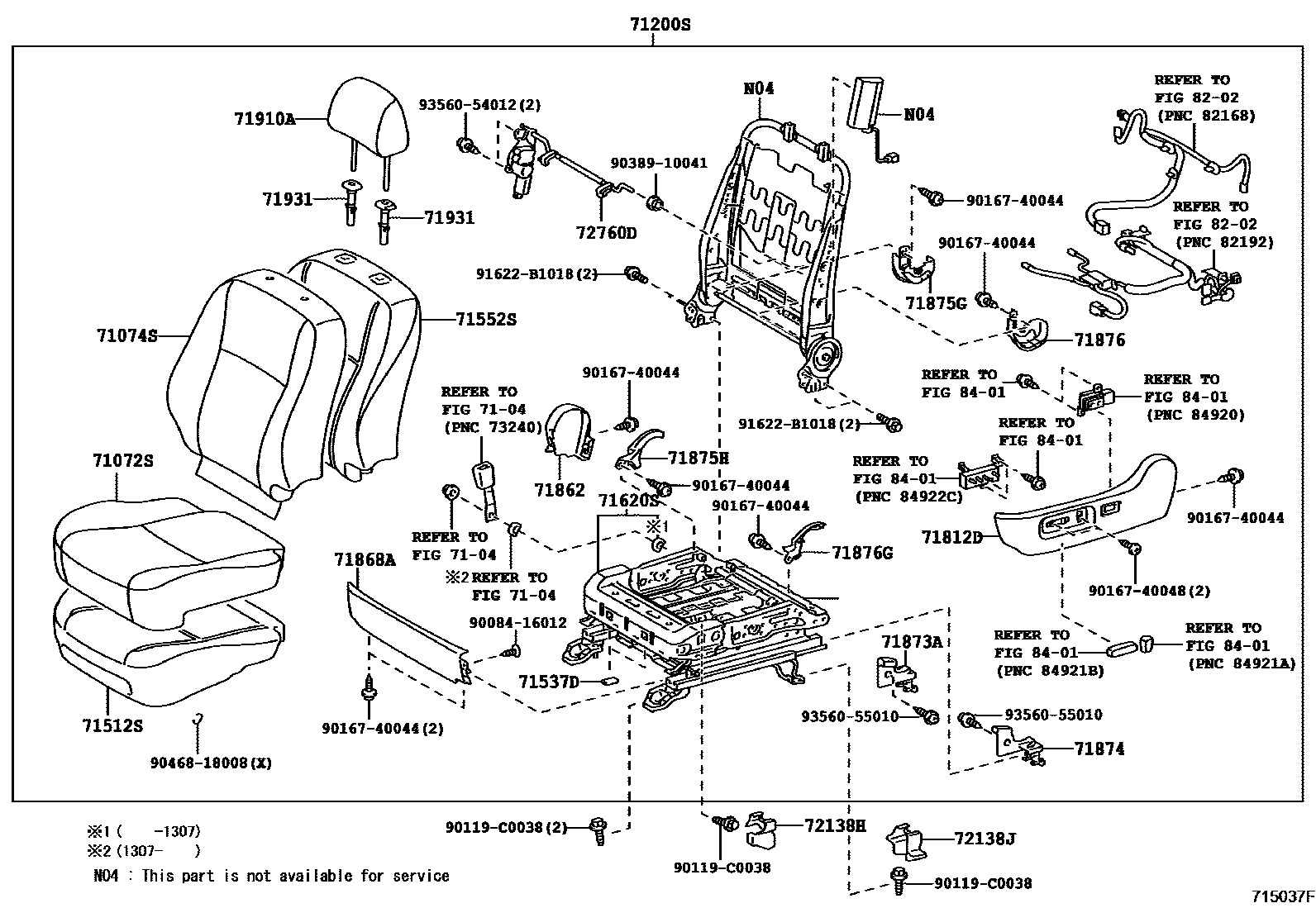

Parts diagram
7104SEAT BELT & CHILD RESTRAINT SEAT
→ Go to FIG 71-04
71072SCOVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)
main71072-02F90-E2i200705-201007
GREGE,TRIM4#
main71072-02F91-E2i201008-201009
GREGE,TRIM4#
main71072-02L20-B0i200802-201009
DK.GRAY,TRIM1#
main71072-02L20-E0i200705-201009
GREGE,TRIM4#
main71072-02N70-B0i200802-201007
DK.GRAY,TRIM1#
main71072-02N71-B1i201008-201009
DK.GRAY,TRIM1#
main71072-02Z90-B1i201009-201203
DK.GRAY,TRIM1#
main71072-0Z020-B0i201009-201203
DK.GRAY,TRIM1#
main71072-0Z020-E0i201009-201406
GREGE,TRIM4#
main71072-02X60-B2i201303-201406
LIMITED'13(1.8 LEATHER SEAT),DK.GRAY,TRIM1#; LIMITED'13(LEATHER SEAT),DK.GRAY,TRIM1#
main71072-02X60-E2supersedes 71072-02X50-E2i201303-201406
LIMITED'13(1.8 LEATHER SEAT),GREGE,TRIM4#; LIMITED'13(LEATHER SEAT),GREGE,TRIM4#
71074SCOVER, FRONT SEATBACK, LH(FOR SEPARATE TYPE)
main71074-02N40-E4i200705-201007
GREGE,TRIM4#
main71074-02N41-E4i201008-201009
GREGE,TRIM4#
main71074-02S60-B0i200802-201009
DK.GRAY,TRIM1#
main71074-02S60-E0i200705-201009
GREGE,TRIM4#
main71074-02V50-B0i200802-201007
DK.GRAY,TRIM1#
main71074-02V51-B0i201008-201009
DK.GRAY,TRIM1#
main71074-0Z270-B2i201009-201203
DK.GRAY,TRIM1#
main71074-0Z270-E3i201009-201406
GREGE,TRIM4#
main71074-0Z680-B3i201009-201203
DK.GRAY,TRIM1#
main71074-0Z550-B0i201009-201203
FRONT SEAT-MANUAL SEAT(DRIVER SEAT)&SRS AIR BAG-WITH(DRIVER & PASEENGER) & KNEE BOLSTER,DK.GRAY,TRIM1#
main71074-0Z550-B2i201303-201406
LIMITED'13(1.8 LEATHER SEAT),DK.GRAY,TRIM1#; LIMITED'13(LEATHER SEAT),DK.GRAY,TRIM1#
main71074-0Z550-E2supersedes 71074-0Z250-E5i201303-201406
LIMITED'13(1.8 LEATHER SEAT),GREGE,TRIM4#; LIMITED'13(LEATHER SEAT),GREGE,TRIM4#
71200SSEAT ASSY, FRONT LH
main71200-0Z641-B0i200802-201009
DK.GRAY,TRIM1#
main71200-0Z641-E0i200705-201009
GRAGE,TRIM4#
main71200-0ZJ80-B2i201009-201203
DARK.GRAY,TRIM1#
main71200-0ZJ80-E3i201009-201406
GREGE,TRIM4#
71512SPAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)
main71512-02220supersedes 71512-02170i200705-201009
main71512-02230i201009-201203
71537DPROTECTOR, FRONT SEAT CUSHION EDGE, LH
main71537-02020×2i200705-201009
71552SPAD, FRONT SEATBACK, LH(FOR SEPARATE TYPE)
main71552-02320i200705-201009
main71552-02580i201009-201203
FRONT SEAT-MANUAL SEAT(DRIVER SEAT)&SRS AIR BAG-WITH(DRIVER & PASEENGER) & KNEE BOLSTER
main71552-02590i201009
71620SSPRING ASSY, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)
main71620-02040supersedes 71620-02031i200705-201009
main71620-02041i201307
FRONT SEAT-MANUAL SEAT(DRIVER SEAT)&SRS AIR BAG-WITH(DRIVER & PASEENGER) & KNEE BOLSTER; LIMITED'13(LEATHER SEAT)
main71620-02050i201009-201307
main71620-02051i201307
71812DSHIELD, FRONT SEAT CUSHION, LH
main71812-02330-B0i201009-201203
DK.GRAY,TRIM1#
main71812-02330-E0i201009-201406
GREGE,TRIM4#
main71812-02350-B0i201009-201406
DK.GRAY,TRIM1#
main71812-02350-E0supersedes 71812-02340-E0i201009-201406
FRONT SEAT-MANUAL SEAT(DRIVER SEAT)&SRS AIR BAG-WITH(DRIVER & PASEENGER) & KNEE BOLSTER,GREGE,TRIM4#; GREGE,TRIM4#
71862SHIELD, FRONT SEAT CUSHION, INNER LH
main71862-06120-B0i200802-201009
DK.GRAY,TRIM1#
main71862-06120-E0i201009-201406
FRONT SEAT-MANUAL SEAT(DRIVER SEAT)&SRS AIR BAG-WITH(DRIVER & PASEENGER) & KNEE BOLSTER,GREGE,TRIM4#; GREGE,TRIM4#
main71862-06130-B0i200802-201009
DK.GRAY,TRIM1#
main71862-06130-E0i200705-201009
GREGE,TRIM4#
71868ASHIELD, FRONT SEAT CUSHION, INNER NO.1 LH
main71868-02010-B0i200802-201009
DK.GRAY,TRIM1#
main71868-02010-E0i200705-201009
GREGE,TRIM4#
71873ASHIELD, FRONT SEAT CUSHION, LOWER
main71873-06280i201009
71874SHIELD, FRONT SEAT CUSHION, LOWER LH
main71874-06240i200705-201009
71875GCOVER, RECLINING ADJUSTER INSIDE, RH (FOR LH SEAT)
main71875-06340i200705-201009
71875HCOVER, RECLINING ADJUSTER INSIDE, RH (FOR LH SEAT)
main71875-06220-B0i200802-201009
DK.GRAY,TRIM1#
main71875-06220-E0i201009-201406
FRONT SEAT-MANUAL SEAT(DRIVER SEAT)&SRS AIR BAG-WITH(DRIVER & PASEENGER) & KNEE BOLSTER,GREGE,TRIM4#; GREGE,TRIM4#
main71875-06240-B0i200802-201009
DK.GRAY,TRIM1#
main71875-06240-E0i201009-201406
GREGE,TRIM4#
71876COVER, RECLINING ADJUSTER INSIDE, LH
main71876-06230i201009-201203
main71876-06370i201009
FRONT SEAT-MANUAL SEAT(DRIVER SEAT)&SRS AIR BAG-WITH(DRIVER & PASEENGER) & KNEE BOLSTER
71876GCOVER, RECLINING ADJUSTER INSIDE, LH (FOR LH SEAT)
main71876-06270-B0i201009-201203
DK.GRAY,TRIM1#
main71876-06270-E0i200705-201009
GREGE,TRIM4#
main71876-06340-B0i201009-201406
DK.GRAY,TRIM1#
main71876-06340-E0i201009-201406
FRONT SEAT-MANUAL SEAT(DRIVER SEAT)&SRS AIR BAG-WITH(DRIVER & PASEENGER) & KNEE BOLSTER,GREGE,TRIM4#; GREGE,TRIM4#
71910AHEADREST ASSY, FRONT SEAT
main71910-02A70-E1×2i200705-201007
GREGE,TRIM4#
main71910-02A71-E4×2i201008-201009
GREGE,TRIM4#
main71910-02A80-B1×2i200802-201009
DK.GRAY,TRIM1#
main71910-02A80-B3i201009-201203
DK.GRAY,TRIM1#
main71910-02A80-E0×2i200705-201009
GREGE,TRIM4#
main71910-02A80-E1supersedes 71910-02F20-E0i201009-201406
GREGE,TRIM4#
main71910-02E00-B0×2i200802-201007
DARK GRAY,TRIM1#
main71910-02E01-B3×2i201008-201009
DARK GRAY,TRIM1#
main71910-02F40-B1×2i201009-201203
DARK GRAY,TRIM1#
71931SUPPORT, FRONT SEAT HEADREST
main71930-02350-E0×2i200705-200707
W(LOCK),GREGE,TRIM4#
main71930-02360-B0×2i200802-201009
W(LOCK),DK.GRAY,TRIM1#
main71930-02360-E0×2i200708-201009
W(LOCK),GREGE,TRIM4#
main71931-02120-B0×2i201009-201203
W/O(LOCK),DK.GRAY,TRIM1#
main71931-02120-E0×2i200705-201009
W/O(LOCK),GREGE,TRIM4#
72138HCOVER, FRONT SEAT TRACK, LH REAR INNER
main72158-02110-B0i200705-201009
DK.GRAY,TRIM1#
72138JCOVER, FRONT SEAT TRACK, LH REAR OUTER
main72138-02090-B0i200705-201009
DK.GRAY,TRIM1#
72760DADJUSTER ASSY, LUMBAR SUPPORT, LH
main72760-06050i200705-200906
main72760-06051i201009-201203
8202WIRING & CLAMP
→ Go to FIG 82-02
8401SWITCH & RELAY & COMPUTER
→ Go to FIG 84-01
9008416012
main90084-16012
90119C0038
main90119-C0038
9016740044
main90167-40044
9016740048
main90167-40048
9038910041
main90389-10041
9046818008
main90468-18008
91622B1018
main91622-B1018
9356054012
main93560-54012
9356055010
main93560-55010

33 parts on this diagram · 4 diagrams in section
