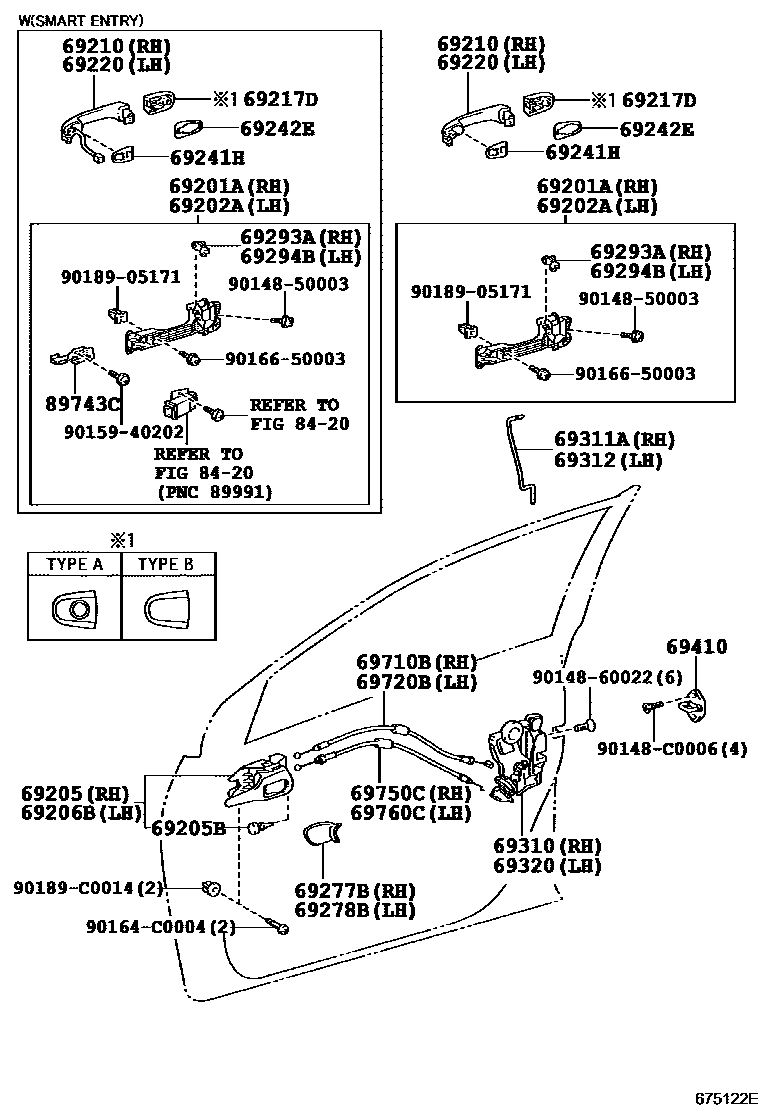

FRONT DOOR LOCK & HANDLE
69201AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, RH
69202AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, LH
69205HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH
SILVER,TRIM1#,4#
SILVER,TRIM4#
SILVER,TRIM1#
ORNAMENT SILVER,TRIM4#
ORNAMENT SILVER,TRIM1#
ORNAMENT SILVER,TRIM1#,4#
69205BCUSHION(FOR FRONT DOOR INSIDE HANDLE)
69206BHANDLE SUB-ASSY, FRONT DOOR INSIDE, LH
SILVER,TRIM1#,4#
SILVER,TRIM4#
SILVER,TRIM1#
ORNAMENT SILVER,TRIM1#,4#
ORNAMENT SILVER,TRIM1#
ORNAMENT SILVER,TRIM4#
69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH
PLATED
SUPER WHITE 2,040
SILVER ME.,1F7
SUPER CHROME ME. 2,040 ,1F7 ,1G3 ,209 ,3R3 ,4U3 ,8S6
BLACK MC.,209
RED M.M.,3R3
BEIGE M. M.,4Q2
DK.BLUE MC.,8S6
69217DCOVER, FRONT DOOR OUTSIDE HANDLE
*CR,TYPE A:REFER ILLUST.
SUPER WHITE 2,040,TYPE B:REFER ILLUST.
SILVER ME.,1F7,TYPE B:REFER ILLUST.
GRAY ME.,1G3,TYPE B:REFER ILLUST.
SUPER CHROME ME. 2,040 ,1F7 ,1G3 ,209 ,3R3 ,4U3 ,8S6,TYPE B:REFER ILLUST.
BLACK MC.,209,TYPE B:REFER ILLUST.
RED M.M.,3R3,TYPE B:REFER ILLUST.
BEIGE M. M.,4Q2,TYPE B:REFER ILLUST.
DK. BROWN M.M.,4U3,TYPE B:REFER ILLUST.
DK.BLUE MC.,8S6,TYPE B:REFER ILLUST.
*CR,TYPE B:REFER ILLUST.
SUPER WHITE 2,040,TYPE A:REFER ILLUST.
sub69217-02958
SILVER ME.,1F7,TYPE A:REFER ILLUST.
sub69217-02958
GRAY ME.,1G3,TYPE A:REFER ILLUST.
sub69217-02958
SUPER CHROME ME. 2,040 ,1F7 ,1G3 ,209 ,3R3 ,4U3 ,8S6,TYPE A:REFER ILLUST.
sub69217-02958
BLACK MC.,209,TYPE A:REFER ILLUST.
sub69217-02958
RED M.M.,3R3,TYPE A:REFER ILLUST.
sub69217-02958
BEIGE M. M.,4Q2,TYPE A:REFER ILLUST.
sub69217-02958
DK. BROWN M.M.,4U3,TYPE A:REFER ILLUST.
sub69217-02958
DK.BLUE MC.,8S6,TYPE A:REFER ILLUST.
sub69217-02958
69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH
PLATED
SUPER WHITE 2,040
SILVER ME.,1F7
SUPER CHROME ME. 2,040 ,1F7 ,1G3 ,209 ,3R3 ,4U3 ,8S6
BLACK MC.,209
RED M.M.,3R3
BEIGE M. M.,4Q2
DK.BLUE MC.,8S6
69241HPAD, FRONT DOOR OUTSIDE HANDLE, FRONT
69242EPAD, FRONT DOOR OUTSIDE HANDLE, REAR
69277BBEZEL, FRONT DOOR INSIDE HANDLE, RH
LIMITED'13(MANUAL AIR CONDITIONER),DK.GRAY,TRIM1#
DK.GRAY,TRIM1#
MEMORIAL3,DK.GRAY,TRIM1#
LIMITED'13(LEATHER SEAT)&SEAT COVER MATERIAL-NATURAL LEATHER,DK.GRAY,TRIM1#
GREGE,TRIM4#
69278BBEZEL, FRONT DOOR INSIDE HANDLE, LH
DK.GRAY,TRIM1#
MEMORIAL3,DK.GRAY,TRIM1#
LIMITED'13(MANUAL AIR CONDITIONER),DK.GRAY,TRIM1#
LIMITED'13(LEATHER SEAT)&SEAT COVER MATERIAL-NATURAL LEATHER,DK.GRAY,TRIM1#
GREGE,TRIM4#
69293ASNAP, FRONT DOOR OUTSIDE HANDLE
69294BSNAP, FRONT DOOR OUTSIDE HANDLE, LH
69310LOCK ASSY, FRONT DOOR, RH
69311AROD, FRONT DOOR LOCK OPEN, RH
69312ROD, FRONT DOOR LOCK OPEN, LH
69320LOCK ASSY, FRONT DOOR, LH
69410PLATE ASSY, FRONT DOOR LOCK STRIKER
69710BCABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, RH
69720BCABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, LH
69750CCABLE ASSY, FRONT DOOR INSIDE LOCKING, RH
69760CCABLE ASSY, FRONT DOOR INSIDE LOCKING LH
8420
89743CBRACKET, ELECTRICAL KEY WIRE HARNESS
RH
LH
9014850003
main90148-50003
9014860022
main90148-60022
90148C0006
main90148-C0006
9015940202
main90159-40202
90164C0004
main90164-C0004
9016650003
main90166-50003
9018905171
main90189-05171
90189C0014
main90189-C0014
33 parts on this diagram · 1 diagram in section
