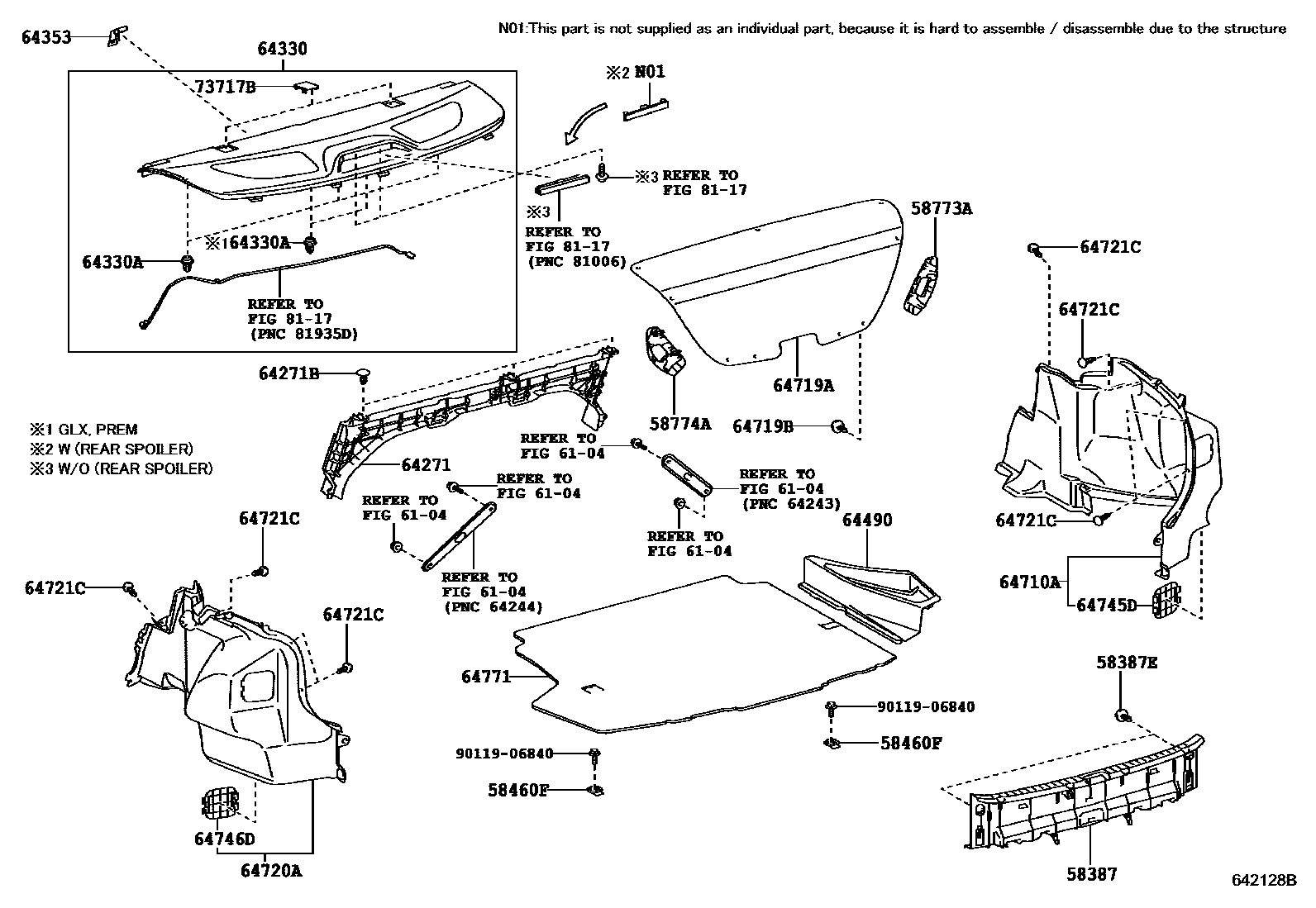

PACKAGE TRAY PANEL & LUGGAGE COMPARTMENT MAT

58387PLATE, REAR FLOOR FINISH

main58387-02090iZRE15#..GL,GLI,GLX,GLXI201009

58387ECLIP(FOR REAR FLOOR FINISH PLATE)

main90467-08186-C0×2iZRE15#200705-201009

BLACK

58460FSTRIKER ASSY, LUGGAGE HOLD BELT

main58460-13010×2iZRE152..GLS,GLXS201009-201203

58773ACOVER, LUGGAGE COMPARTMENT SIDE, RH

main58773-02080iZRE15#..GL,GLI,GLX,GLXI201009

58774ACOVER, LUGGAGE COMPARTMENT SIDE, LH

main58774-02080iZRE152..GLS,GLXS201009-201203

6104ROOF PANEL & BACK WINDOW GLASS

→ Go to FIG 61-04

64271BOARD, ROOM PARTITION, NO.1

main64271-02110iZRE15#200705-201009

64271BCLIP(FOR ROOM PARTITION BOARD)

main90467-08186-C0×3iZRE15#200705-201009

BLACK

64330PANEL ASSY, PACKAGE TRAY TRIM

main64330-02700-B0iZRE153201009-201301

DK.GRAY,TRIM1#,4#

main64330-02700-E0iZRE152..PREM200705-201009

ASH BROWN,TRIM4#

main64330-02710-B0iZRE151,152..GL,GLI; ZRE152..GLXI201009-201406

DK.GRAY,TRIM1#,4#; DK.GRAY,TRIM4#

main64330-02710-E0iZRE15#..GL,GLI,GLXI200705-201009

ASH BROWN,TRIM4#

64330ACLIP(FOR PACKAGE TRAY TRIM PANEL)

main90467-10161×3iZRE15#..GL,GLI,GLS,GLXI,GLXS; ZRE152..PREM200705-201009

64353COVER, PACKAGE TRAY TRIM BELT HOLE

main64353-02030-B0iZRE15#..GL,GLI,GLX; ZRE152..GLXI201009-201406

DK.GRAY,TRIM1#,4#; DK.GRAY,TRIM4#

main64353-02030-E0iZRE15#..GL,GLI,GLXI,PREM200705-201009

ASH BROWN,TRIM4#

64490TRAY ASSY, LUGGAGE COMPARTMENT SIDE

main64490-02020iZRE15#..GL,GLI,GLX,GLXI201009

64710ACOVER ASSY, LUGGAGE COMPARTMENT TRIM, RH

main64710-02130-C0iZRE15#..GL,GLI,GLX; ZRE152..GLXI201009-201406

BLACK,TRIM1#,4#; BLACK,TRIM4#

64719ACOVER, LUGGAGE COMPARTMENT DOOR

main64719-02090-C0iZRE152..GLS,GLXS201009-201203

BLACK,TRIM1#

64719BCLIP(FOR LUGGAGE COMPARTMENT DOOR)

main90467-08186-C0×9iZRE15#200705-201009

BLACK

64720ACOVER ASSY, LUGGAGE COMPARTMENT TRIM, LH

main64720-02130-C0iZRE15#200705-201009

BLACK,TRIM1#,4#

64721CCLIP(LUGGAGE COMPARTMENT)

main90467-08186-C0×8iZRE15#200705-201009

BLACK

64745DCOVER, REAR COMBINATION LAMP SERVICE, RH

main64745-02210iZRE15#200705-201009

64746DCOVER, REAR COMBINATION LAMP SERVICE, LH

main64745-02210iZRE15#200705-201009

64771COVER, SPARE WHEEL

main64771-02100-C0iZRE15#..GL,GLI,GLX; ZRE152..GLXI201009-201406

BLACK,TRIM1#,4#; BLACK,TRIM4#

73717BCOVER, CHILD RESTRAINT SEAT TETHER ANCHOR

main73717-02050-B0iZRE15#..GL,GLI,GLX; ZRE152..GLXI201009-201406

DK.GRAY,TRIM1#,4#,RH; DK.GRAY,TRIM4#,RH

main73717-02050-E1iZRE15#..GL,GLI,GLXI,PREM200705-201009

ASH BROWN,TRIM4#,RH

main73717-02060-B0iZRE15#..GL,GLI,GLX; ZRE152..GLXI201009-201406

DK.GRAY,TRIM1#,4#,LH; DK.GRAY,TRIM4#,LH

main73717-02060-E1iZRE15#..GL,GLI,GLXI,PREM200705-201009

ASH BROWN,TRIM4#,LH

8117CENTER STOP LAMP

→ Go to FIG 81-17

9011906840

main90119-06840

23 parts on this diagram · 1 diagram in section
