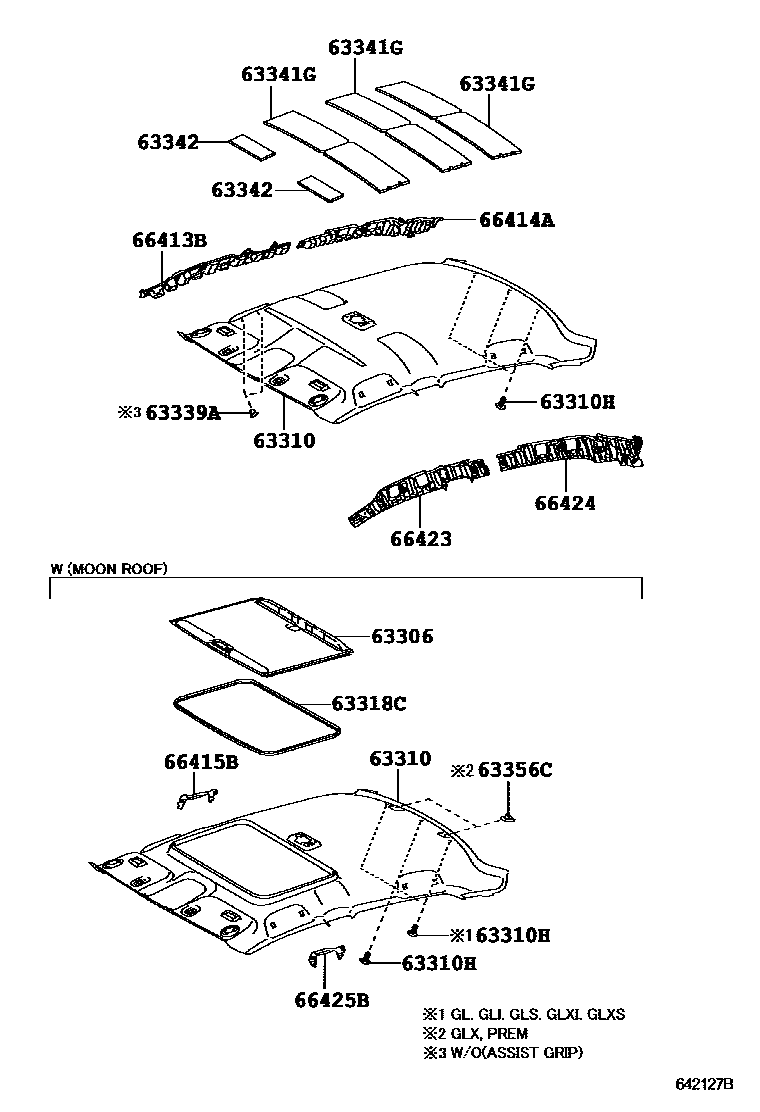

ROOF HEADLINING & SILENCER PAD
63306TRIM SUB-ASSY, SUNSHADE
LIGHT GRAY,TRIM1#
GREGE,TRIM4#
63310HEADLINING ASSY, ROOF
LIGHT GRAY,TRIM1#
GREGE,TRIM4#
LIGHT GRAY,TRIM1#
GREGE,TRIM4#
LIGHT GRAY,TRIM1#; LIMITED'13(LEATHER SEAT)&MOON ROOF-WITH,LIGHT GRAY,TRIM1#; LIMITED'13(MANUAL AIR CONDITIONER)&MOON ROOF-WITH,LIGHT GRAY,TRIM1#
GREGE,TRIM4#
GREGE,TRIM4#
GREGE,TRIM4#
63310HCLIP(FOR ROOF HEADLINING)
LT.GRAY,TRIM1#
GREGE,TRIM4#
LIMITED'13(LEATHER SEAT)&MOON ROOF-WITH,LT.GRAY,TRIM1#; LIMITED'13(MANUAL AIR CONDITIONER)&MOON ROOF-WITH,LT.GRAY,TRIM1#; LT.GRAY,TRIM1#
GREGE,TRIM4#
63318CMOULDING, SUN ROOF OPENING TRIM
L=2215,LT.GRAY,TRIM1#
L=2215,GREGE,TRIM4#
63339ACOVER, ROOF HEADLINING SERVICE HOLE
LT.GRAY,TRIM1#
GREGE,TRIM4#; SRS AIR BAG-WITH(DRIVER & PASEENGER) & KNEE BOLSTER,GREGE,TRIM4#
63341GPAD, ROOF SILENCER
63342PAD, ROOF SILENCER, NO.2
63356CHOLDER, SUNSHADE TRIM
GREGE,TRIM4#
66413BSPACER, SIDE RAIL, FRONT RH
66414ASPACER, SIDE RAIL, REAR RH
SRS AIR BAG-WITH(DRIVER & PASEENGER) & KNEE BOLSTER
66415BSPACER, SIDE RAIL, REAR NO.2 RH
66423SPACER, SIDE RAIL, FRONT LH
SRS AIR BAG-WITH(DRIVER & PASEENGER) & KNEE BOLSTER
66424SPACER, SIDE RAIL, REAR LH
SRS AIR BAG-WITH(DRIVER & PASEENGER) & KNEE BOLSTER
66425BSPACER, SIDE RAIL, REAR NO.2 LH
14 parts on this diagram · 1 diagram in section
