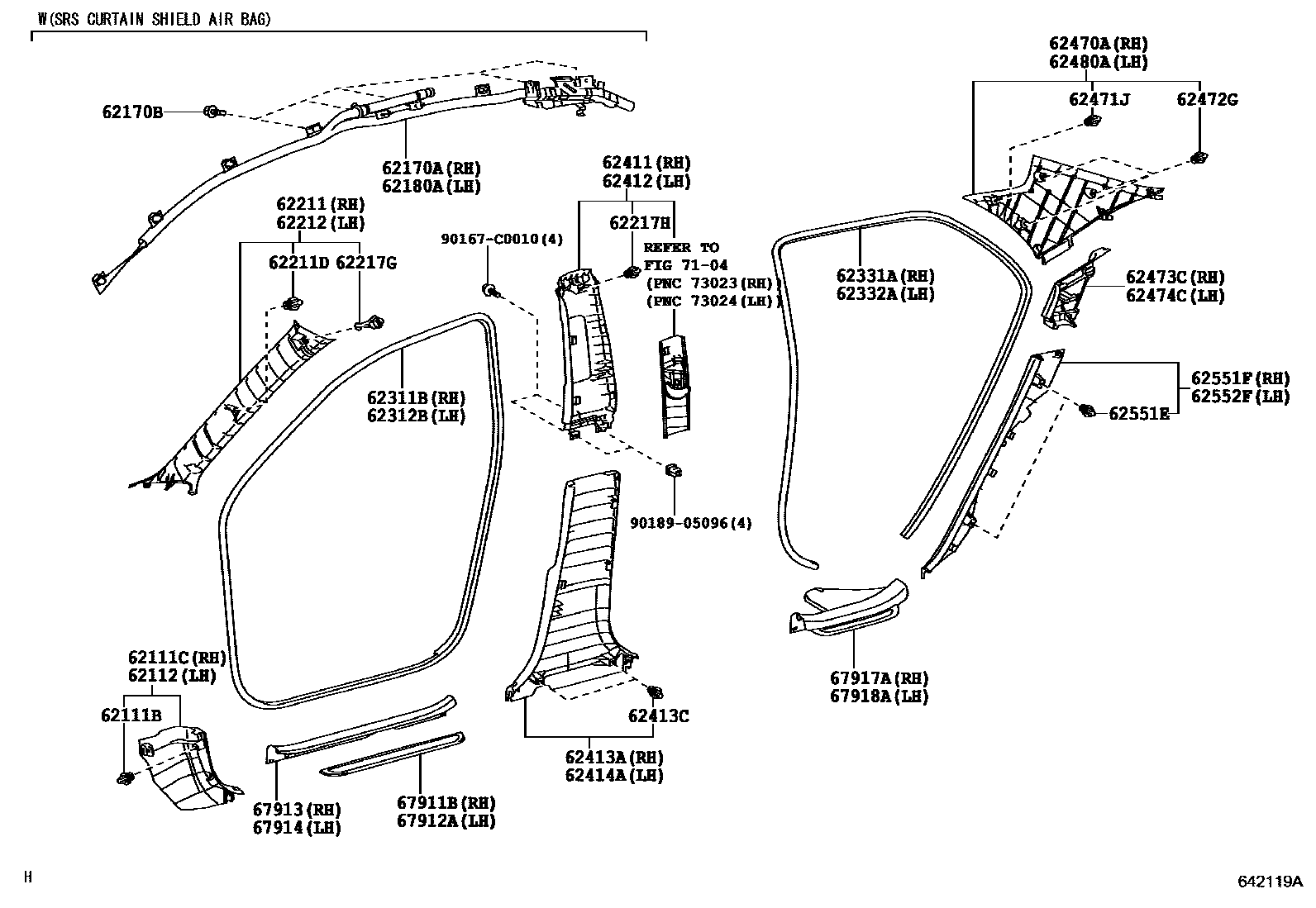

INSIDE TRIM BOARD & DOOR OPENING TRIM MOULDING

62111BCLIP(FOR COWL SIDE TRIM)

main90467-10161×2iZRE152..GLS,GLXS201009-201203

62111CBOARD, COWL SIDE TRIM, RH

main62111-02171-B0iZRE152..GLS,GLXS201009-201406

DK.GRAY,TRIM1#

main62111-02171-E0iZRE15#..GL,GLI,GLX,GLXI201009-201406

GREGE,TRIM4#

62112BOARD, COWL SIDE TRIM, LH

main62112-02171-B0iZRE15#..GL,GLI,GLX201009-201203

DK.GRAY,TRIM1#

main62112-02171-E0iZRE15#..GL,GLI,GLX,GLXI201009-201406

GREGE,TRIM4#

62170AAIRBAG ASSY, CURTAIN SHIELD, RH

main62170-02110iZRE152..CVFC..GLXS; ZRE152..GLXS201009-201203

SRS AIR BAG-WITH(DRIVER & PASEENGER) & KNEE BOLSTER

62170BBOLT, W/WASHER

main90119-06869×10iZRE152..GLXI,GLXS,PREM200705-201009

62180AAIRBAG ASSY, CURTAIN SHIELD, LH

main62180-02160iZRE152..GLXI,GLXS,PREM200705-201009

62211GARNISH, FRONT PILLAR, RH

main62211-02211-B1iZRE152..GLI201303-201406

LIGHT GRAY,TRIM1#

main62211-02211-E1iZRE152..CVFC..GLXI; ZRE152..GLI201009-201406

GREGE,TRIM4#; SRS AIR BAG-WITH(DRIVER & PASEENGER) & KNEE BOLSTER,GREGE,TRIM4#

main62211-02221-B0iZRE151201303-201406

LT.GRAY,TRIM1#

main62211-02221-E0iZRE151200705-201009

GREGE,TRIM4#

main62211-02301-B2iZRE152..GLXS200802-201009

LIGHT GRAY,TRIM1#

main62211-02301-E2iZRE152..GLXI,PREM200705-201009

GREGE,TRIM4#

62211DCLIP(FOR FRONT BODY PILLAR GARNISH)

main90467-10161×2iZRE15#200705-201009

62212GARNISH, FRONT PILLAR, LH

main62212-02211-B1iZRE152..CVFC..GLXS; ZRE152..GLI201009-201203

LIGHT GRAY,TRIM1#; SRS AIR BAG-WITH(DRIVER & PASEENGER) & KNEE BOLSTER,LIGHT GRAY,TRIM1#

main62212-02211-E1iZRE152..GLI200705-201009

GREGE,TRIM4#

main62212-02221-B0iZRE151201303-201406

LT.GRAY,TRIM1#

main62212-02221-E0iZRE151201009-201406

GREGE,TRIM4#

main62212-02301-B2iZRE152..GLXS201009-201203

LIGHT GRAY,TRIM1#

main62212-02301-E2iZRE152..GLXI,PREM200705-201009

GREGE,TRIM4#

62217GCLIP, FRONT PILLAR GARNISH

main62217-52010×2iZRE15#..GL,GLI,GLS200705-201009

main90950-08004×2iZRE152..GLXS201009-201203

62217HCLIP, CENTER PILLER GARNISH

main90467-10167×2iZRE15#200705-201009

62311BWEATHERSTRIP, FRONT DOOR OPENING TRIM, RH

main62311-02140-B0iZRE15#..GL,GLI201303-201406

DK.GRAY,TRIM1#

main62311-02140-E0iZRE15#..GL,GLI,GLX,GLXI201009-201406

GREGE,TRIM4#

62312BWEATHERSTRIP, FRONT DOOR OPENING TRIM, LH

main62312-02140-B0iZRE152..GLS,GLXS201009-201406

DK.GRAY,TRIM1#

main62312-02140-E0iZRE15#..GL,GLI,GLX,GLXI201009-201406

GREGE,TRIM4#

62331AWEATHERSTRIP, REAR DOOR OPENING TRIM, RH

main62331-02180-B0iZRE15#200802-201009

DK.GRAY,TRIM1#

main62331-02180-E0iZRE15#200705-201009

GREGE,TRIM4#

62332AWEATHERSTRIP, REAR DOOR OPENING TRIM, LH

main62332-02180-B0iZRE15#..GL,GLI201303-201406

DK.GRAY,TRIM1#

main62332-02180-E0iZRE15#..GL,GLI,GLX,GLXI201009-201406

GREGE,TRIM4#

62411GARNISH, CENTER PILLAR, RH

main62410-02101-B1iZRE152..GLS,GLXS201009-201406

LIGHT GRAY,TRIM1#

main62410-02101-E1iZRE152,153..GLI,GLX,GLXI201009-201406

GREGE,TRIM4#

main62410-02111-B1iZRE151201303-201406

LT.GRAY,TRIM1#

main62410-02111-E1iZRE151201009-201406

GREGE,TRIM4#

62412GARNISH, CENTER PILLAR, LH

main62420-02101-B1iZRE152..GLS,GLXS200802-201009

LIGHT GRAY,TRIM1#

main62420-02101-E1iZRE152,153..GLI,GLX,GLXI201009-201406

GREGE,TRIM4#

main62420-02111-B1iZRE151201303-201406

LT.GRAY,TRIM1#

main62420-02111-E1iZRE151201009-201406

GREGE,TRIM4#

62413AGARNISH, CENTER PILLAR, LOWER RH

main62413-02131-B0iZRE15#..GL,GLI201303-201406

DK.GRAY,TRIM1#

main62413-02131-E0iZRE15#..GL,GLI,GLX,GLXI201009-201406

GREGE,TRIM4#

62413CCLIP (FOR CENTER LOWER GARNISH)

main90467-10167×4iZRE15#200705-201009

62414AGARNISH, CENTER PILLAR, LOWER LH

main62414-02131-B0iZRE15#..GL,GLI201303-201406

DK.GRAY,TRIM1#

main62414-02131-E0iZRE15#..GL,GLI,GLX,GLXI201009-201406

GREGE,TRIM4#

62470AGARNISH ASSY, ROOF SIDE, INNER RH

main62470-02161-B2iZRE152..GLI201303-201406

LIGHT GRAY,TRIM1#

main62470-02161-E2iZRE152..GLI200705-201009

GREGE,TRIM4#

main62470-02171-B1iZRE151201303-201406

LT.GRAY,TRIM1#

main62470-02171-E1iZRE151201009-201406

GREGE,TRIM4#

main62470-02221-B2iZRE152..GLXS200802-201009

LIGHT GRAY,TRIM1#

main62470-02221-E2iZRE152,153..GLX,GLXI201009-201406

GREGE,TRIM4#

62471JCLIP (FOR ROOF SIDE GARNISH)

main90467-10188×2iZRE15#200705-201009

62472GCLIP (FOR ROOF SIDE GARNISH)

main90467-10161×6iZRE15#..GL,GLI,GLX,GLXI201009

62473CBOARD, ROOF SIDE INNER GARNISH, RH

main62473-02031-B0iZRE15#..GL,GLI,GLX; ZRE152..GLXI201009-201406

DK.GRAY,TRIM1#,4#; DK.GRAY,TRIM4#

main62473-02031-E1iZRE15#..GL,GLI,GLXI,PREM200705-201009

ASH BROWN,TRIM4#

62474CBOARD, ROOF SIDE INNER GARNISH, LH

main62474-02031-B0iZRE15#..GL,GLI,GLX; ZRE152..GLXI201009-201406

DK.GRAY,TRIM1#,4#; DK.GRAY,TRIM4#

main62474-02031-E1iZRE15#..GL,GLI,GLXI,PREM200705-201009

ASH BROWN,TRIM4#

62480AGARNISH ASSY, ROOF SIDE, INNER LH

main62480-02161-B2iZRE152..GLS201009-201406

LIGHT GRAY,TRIM1#

main62480-02161-E2iZRE152..GLI200705-201009

GREGE,TRIM4#

main62480-02171-B1iZRE151201303-201406

LT.GRAY,TRIM1#

main62480-02171-E1iZRE151200705-201009

GREGE,TRIM4#

main62480-02221-B2iZRE152..GLXS201009-201203

LIGHT GRAY,TRIM1#

main62480-02221-E2iZRE152,153..GLX,GLXI201009-201406

GREGE,TRIM4#

62551ECLIP(FOR REAR SEAT SIDE GARNISH)

main90467-10161×4iZRE152..GLS,GLXS201009-201203

62551FGARNISH, REAR SEAT SIDE, RH

main62551-02131-B0iZRE15#..GL,GLI201303-201406

DK.GRAY,TRIM1#

main62551-02131-E0iZRE15#..GL,GLI,GLX,GLXI201009-201406

GREGE,TRIM4#

62552FGARNISH, REAR SEAT SIDE, LH

main62552-02121-B0iZRE15#..GL,GLI,GLX201009-201203

DK.GRAY,TRIM1#

main62552-02121-E0iZRE15#..GL,GLI,GLX,GLXI201009-201406

GREGE,TRIM4#

67911BPLATE, FRONT DOOR SCUFF, OUTSIDE, RH

main67911-02090iZRE15#200705-201009

67912APLATE, FRONT DOOR SCUFF, OUTSIDE LH

main67911-02090iZRE15#200705-201009

67913PLATE, FRONT DOOR SCUFF, RH

main67913-02181-B0iZRE15#..GL,GLI201303-201406

DK.GRAY,TRIM1#

main67913-02181-E0iZRE15#..GL,GLI,GLX,GLXI201009-201406

GREGE,TRIM4#

67914PLATE, FRONT DOOR SCUFF, LH

main67914-02181-B0iZRE15#..GL,GLI,GLX201009-201203

DK.GRAY,TRIM1#

main67914-02181-E0iZRE15#..GL,GLI,GLX,GLXI201009-201406

GREGE,TRIM4#

67917APLATE, REAR DOOR SCUFF, RH

main67917-02161-B0iZRE15#..GL,GLI,GLX201009-201203

DK.GRAY,TRIM1#

main67917-02161-E0iZRE15#..GL,GLI,GLXI,PREM200705-201009

GREGE,TRIM4#

67918APLATE, REAR DOOR SCUFF, LH

main67918-02161-B0iZRE15#..GL,GLI,GLX201009-201203

DK.GRAY,TRIM1#

main67918-02161-E0iZRE15#..GL,GLI,GLXI,PREM200705-201009

GREGE,TRIM4#

7104SEAT BELT & CHILD RESTRAINT SEAT

→ Go to FIG 71-04

90167C0010

main90167-C0010

9018905096

main90189-05096

38 parts on this diagram · 1 diagram in section
