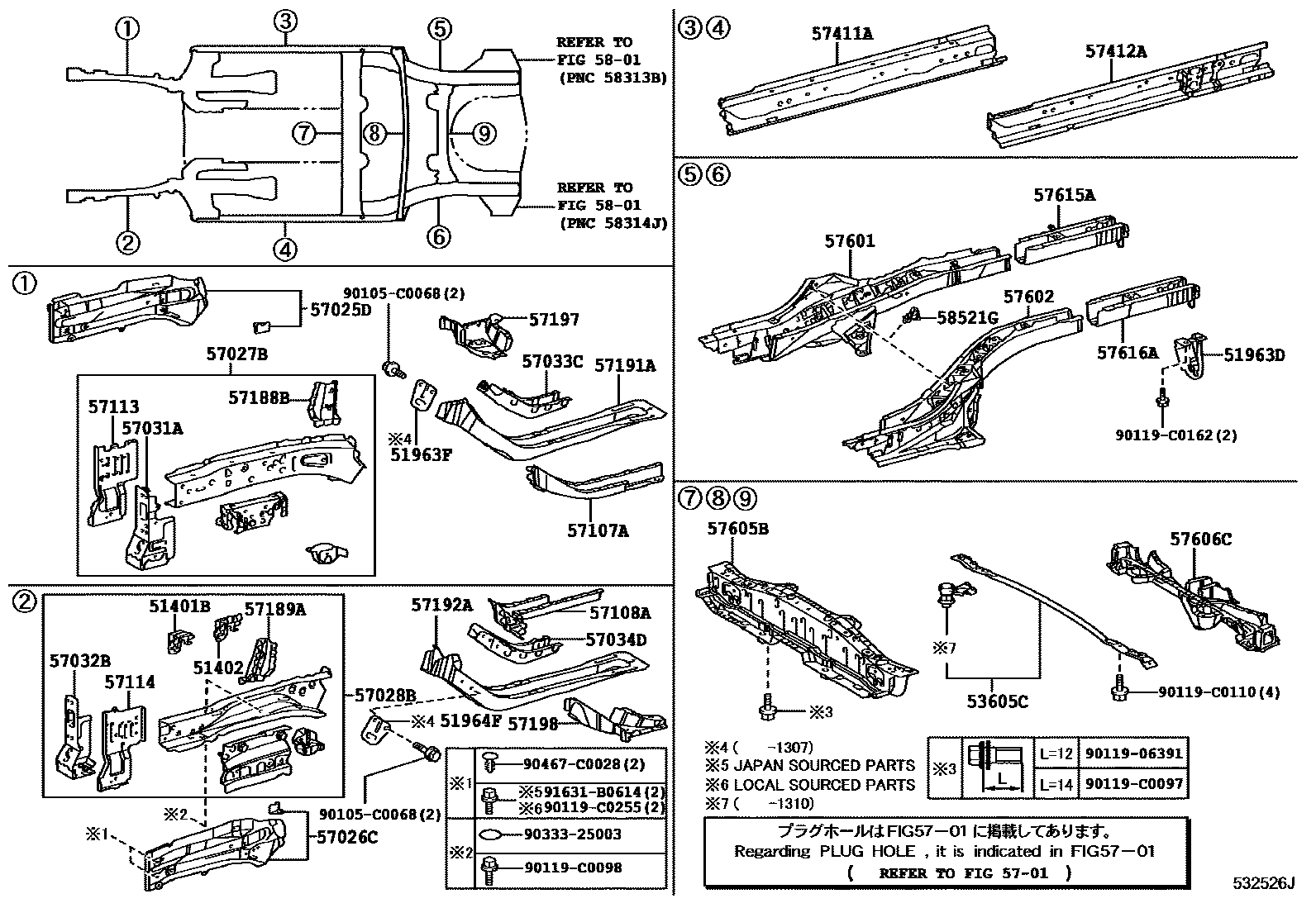

FLOOR SIDE MEMBER

51401BBRACKET SUB-ASSY, ENGINE FRONT MOUNTING

main51401-02030iZRE15#200705-201009

51402BRACKET SUB-ASSY, ENGINE FRONT MOUNTING, LH

main51402-02030iZRE15#200705-201009

51963DHOOK, TRANSPORT, REAR LH

main51968-02090iZRE15#200705-201009

51963FHOOK, TRANSPORT

main51963-02110iZRE15#200705-201009

51964FHOOK, TRANSPORT, LH

main51964-02040iZRE15#200705-201009

53605CBRACE SUB-ASSY, REAR FLOOR SIDE MEMBER

main53605-02020iZRE15#200705-201009

main53605-02021iZRE15#..GL,GLI,GLXI201310

5701HOLE PLUG

→ Go to FIG 57-01

57025DMEMBER SUB-ASSY, FRONT SIDE, OUTER RH

main57025-02040iZRE15#200705-201009

57026CMEMBER SUB-ASSY, FRONT SIDE, OUTER LH

main57026-02040iZRE15#200705-201009

57027BMEMBER SUB-ASSY, FRONT SIDE, INNER RH

main57027-02050iZRE15#200705-201009

57028BMEMBER SUB-ASSY, FRONT SIDE, INNER LH

main57028-02040iZRE15#200705-201009

57031AREINFORCE SUB-ASSY, FRONT SIDE MEMBER, NO.2 RH

main57031-02030iZRE15#200705-201009

57032BREINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, NO.2 LH

main57032-02030iZRE15#200705-201009

57033CREINFORCE SUB-ASSY, FRONT SIDE MEMBER, NO.3 RH

main57033-02060iZRE15#200705-201009

57034DREINFORCE SUB-ASSY, FRONT SIDE MENBER, NO.3 LH

main57034-02060iZRE15#200705-201009

57107APLATE SUB-ASSY, FRONT SIDE MEMBER, NO.2 RH

main57107-02060iZRE15#200705-201009

57108APLATE SUB-ASSY, FRONT SIDE MEMBER, NO.2 LH

main57108-02060iZRE15#200705-201009

57113EXTENSION, FRONT SIDE MEMBER, RH

main57113-02090iZRE15#200705-201009

57114EXTENSION, FRONT SIDE MEMBER, LH

main57114-02090iZRE15#200705-201009

57188BGUSSET, FRONT SIDE MEMBER TO SPRING SUPPORT, RH

main57188-02030iZRE15#200705-201009

57189AGUSSET, FRONT SIDE MEMBER TO SPRING SUPPORT, LH

main57189-02030iZRE15#200705-201009

57191AMEMBER, FRONT SIDE, INNER REAR RH

main57191-02120iZRE15#200705-201009

57192AMEMBER, FRONT SIDE, INNER REAR LH

main57192-02120iZRE15#200705-201009

57197BOX, TORQUE, FRONT RH

main57197-02060iZRE15#200705-201009

57198BOX, TORQUE, FRONT LH

main57198-02060iZRE15#200705-201009

57411AMEMBER, FLOOR SIDE, INNER RH

main57401-02150iZRE15#200705-201009

57412AMEMBER, FLOOR SIDE, INNER LH

main57402-02150iZRE15#200705-201009

57601MEMBER SUB-ASSY, REAR FLOOR SIDE, RH

main57601-02200iZRE15#200705-201009

57602MEMBER SUB-ASSY, REAR FLOOR SIDE, LH

main57602-02200iZRE15#200705-201009

57605BMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.1

main57605-02110iZRE15#200705-201009

57606CMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.2

main57606-02110iZRE15#200705-201009

57615AMEMBER, REAR FLOOR SIDE, REAR RH

main57603-02090iZRE15#200705-201009

57616AMEMBER, REAR FLOOR SIDE, REAR LH

main57604-02060iZRE15#200705-201009

5801FLOOR PAN & LOWER BACK PANEL

→ Go to FIG 58-01

58521GHOOK, FLOOR CARPET

main58521-02070×2iZRE15#200705-201009

90105C0068

main90105-C0068

9011906391

main90119-06391

90119C0097

main90119-C0097

90119C0098

main90119-C0098

90119C0110

main90119-C0110

90119C0162

main90119-C0162

90119C0255

main90119-C0255

9033325003

main90333-25003

90467C0028

main90467-C0028

91631B0614

main91631-B0614

45 parts on this diagram · 1 diagram in section
