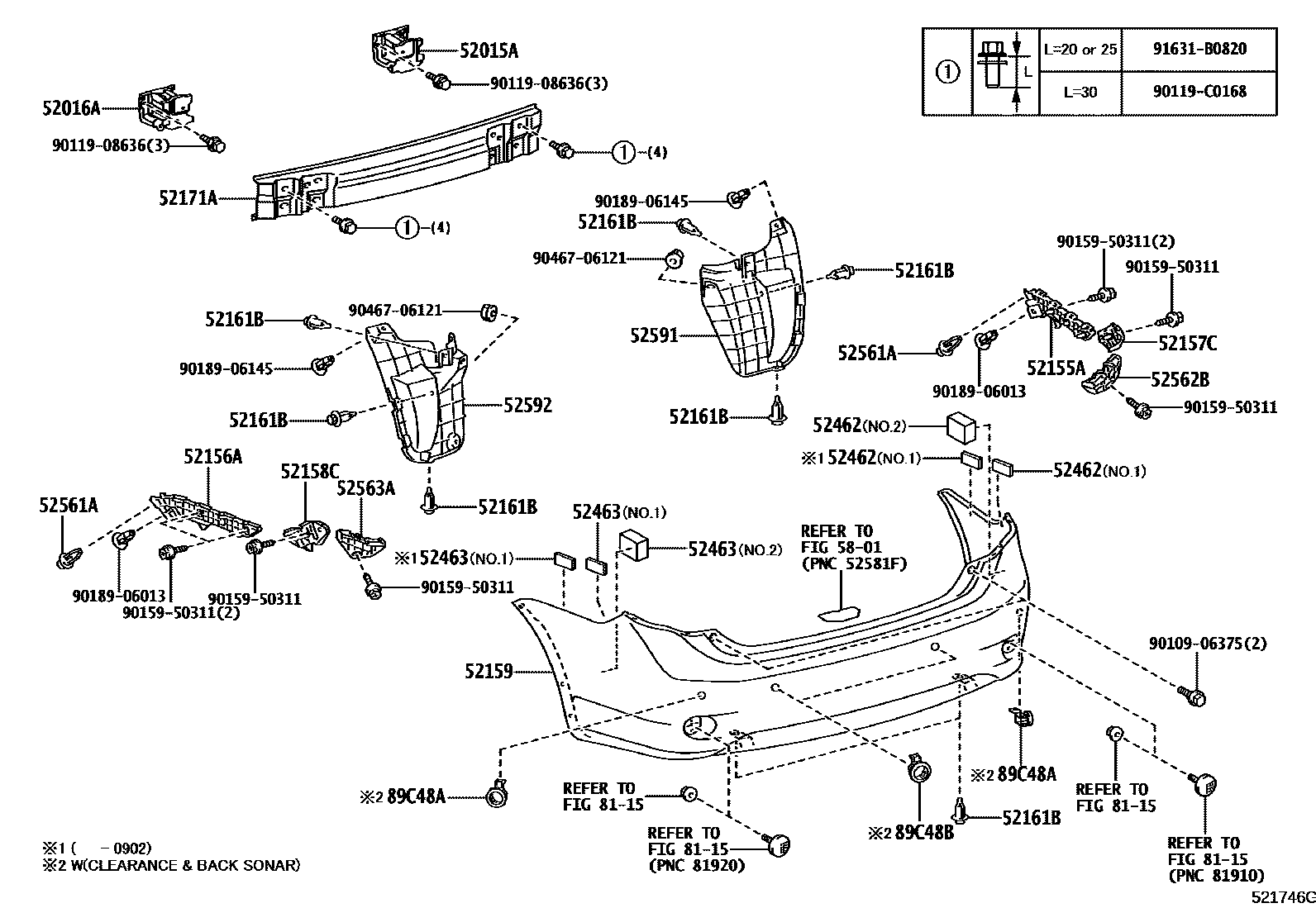

REAR BUMPER & BUMPER STAY
52015AARM SUB-ASSY, REAR BUMPER, RH
52016AARM SUB-ASSY, REAR BUMPER, LH
52155ASUPPORT, REAR BUMPER SIDE, RH
52156ASUPPORT, REAR BUMPER SIDE, LH
52157CSUPPORT, REAR BUMPER SIDE, NO.2 RH
52158CSUPPORT, REAR BUMPER SIDE, NO.2 LH
52159COVER, REAR BUMPER
PAINT REQ.
PAINT REQ.; PAINT REQ.,W(NAVI,*BGM,*CRC,*CRS & HEATER MIRROR); PAINT REQ.,WITH(*CRC,*CRS & HEATER MIRROR)
PAINT REQ.
PAINT REQ.
PAINT REQ.
PAINT REQ.
PAINT REQ.,W(NAVI,*BGM,*CRC,*CRS & HEATER MIRROR)
PAINT REQ.,A PACKAGE
52161BPIECE, REAR BUMPER
(J)
52171AREINFORCEMENT, REAR BUMPER, NO.1
52462PAD, REAR BUMPER, RH
NO.1
NO.2
52463PAD, REAR BUMPER, LH
NO.1
NO.2
52561ACLIP(FOR REAR BUMPER RETAINER)
DK.GRAY
DK.GRAY
52562BRETAINER, REAR BUMPER, UPPER RH
52563ARETAINER, REAR BUMPER, UPPER LH
52591SEAL, REAR BUMPER SIDE, RH
52592SEAL, REAR BUMPER SIDE, LH
5801FLOOR PAN & LOWER BACK PANEL
8115REFLEX REFLECTOR
89C48ARETAINER, ULTRASONIC SENSOR, REAR CORNER
main89348-33080-A0×2iZRE152..6F..GLXI;ZRE152..4FC..(GLXI,GLXS); ZRE152..GLXI; ZRE152..PREM200705-201009
W(NAVI,*BGM,*CRC,*CRS & HEATER MIRROR),WHITE PEARL CS.,040 ,070; WHITE PEARL CS.,040 ,070; WITH(*CRC,*CRS & HEATER MIRROR),WHITE PEARL CS.,040 ,070
main89348-33080-B0×2iZRE152..6F..GLXI;ZRE152..4FC..(GLXI,GLXS); ZRE152..GLXI; ZRE152..PREM200705-201009
SILVER ME.,1F7 ,4Q2; W(NAVI,*BGM,*CRC,*CRS & HEATER MIRROR),SILVER ME.,1F7 ,4Q2; WITH(*CRC,*CRS & HEATER MIRROR),SILVER ME.,1F7 ,4Q2
DUMMY-MAT BLACK,1G3 ,209 ,3R3 ,4U3 ,8S6
89C48BRETAINER, ULTRASONIC SENSOR, REAR CENTER
WHITE PEARL CS.,040
SILVER ME.,1F7
DUMMY-MAT BLACK,1G3 ,209 ,3R3 ,4U3 ,8S6
9010906375
main90109-06375
9011908636
main90119-08636
90119C0168
main90119-C0168
9015950311
main90159-50311
9018906013
main90189-06013
9018906145
main90189-06145
9046706121
main90467-06121
91631B0820
main91631-B0820
28 parts on this diagram · 2 diagrams in section
