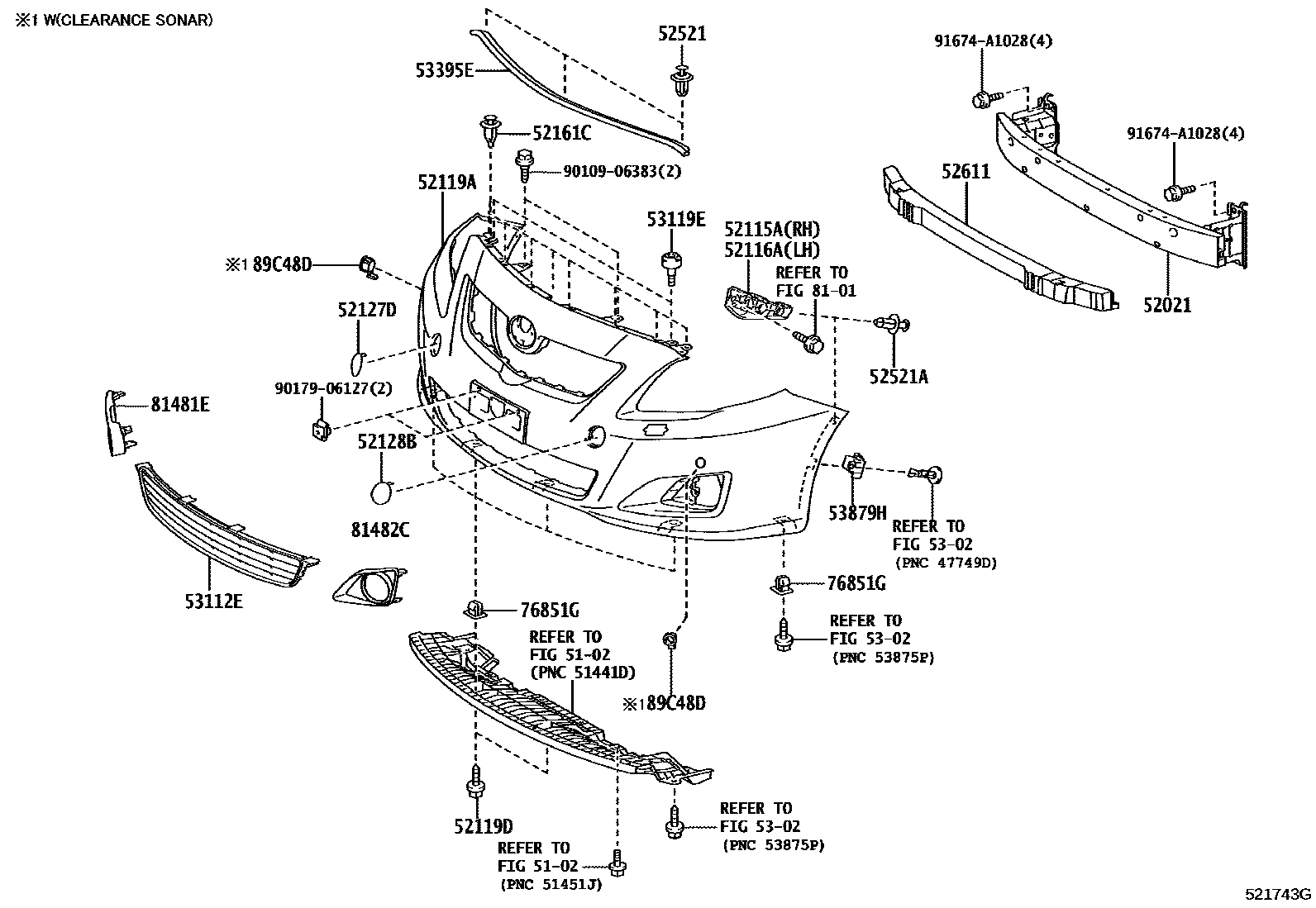

FRONT BUMPER & BUMPER STAY
5102SUSPENSION CROSSMEMBER & UNDER COVER
52021REINFORCEMENT SUB-ASSY, FRONT BUMPER
52115ASUPPORT, FRONT BUMPER SIDE, RH
52116ASUPPORT, FRONT BUMPER SIDE, LH
52119ACOVER, FRONT BUMPER
PAINT REQ.
PAINT REQ.; PAINT REQ.,W(NAVI,*BGM,*CRC,*CRS & HEATER MIRROR); PAINT REQ.,WITH(*CRC,*CRS & HEATER MIRROR)
PAINT REQ.
PAINT REQ.
PAINT REQ.
PAINT REQ.
PAINT REQ.
PAINT REQ.,W(NAVI,*BGM,*CRC,*CRS & HEATER MIRROR)
PAINT REQ.,A PACKAGE; PAINT REQ.,B PACKAGE
PAINT REQ.,A PACKAGE
52119DSCREW, NO.1
52127DCOVER, FRONT BUMPER HOLE, RH
52128BCOVER, FRONT BUMPER HOLE, LH
52161CPIECE, FRONT BUMPER
(L); W(NAVI,*BGM,*CRC,*CRS & HEATER MIRROR); WITH(*CRC,*CRS & HEATER MIRROR)
(J)
52521RETAINER, FRONT BUMPER, UPPER CENTER
BLACK
BLACK
52521ACLIP(FOR FRONT BUMPER RETAINER)
DK.GRAY
DK.GRAY
52611ABSORBER, FRONT BUMPER ENERGY
5302HOOD & FRONT FENDER
53112EGRILLE, RADIATOR, LOWER NO.1
NO PAINT REQ.
NO PAINT REQ.
53119EPROTECTOR, RADIATOR GRILLE
53395ESEAL, HOOD TO FRONT END PANEL
53879HRETAINER, FRONT FENDER LINER
76851GGROMMET, SCREW, NO.1
8101HEADLAMP
81481ECOVER, FOG LAMP, RH
81482CCOVER, FOG LAMP, LH
89C48DRETAINER, ULTRASONIC SENSOR, FRONT CORNER
main89348-33080-A0×2iZRE152..6F..GLXI;ZRE152..4FC..(GLXI,GLXS); ZRE152..GLXI; ZRE152..PREM200705-201009
W(NAVI,*BGM,*CRC,*CRS & HEATER MIRROR),WHITE PEARL CS.,040 ,070; WHITE PEARL CS.,040 ,070; WITH(*CRC,*CRS & HEATER MIRROR),WHITE PEARL CS.,040 ,070
main89348-33080-B0×2iZRE152..6F..GLXI;ZRE152..4FC..(GLXI,GLXS); ZRE152..GLXI; ZRE152..PREM200705-201009
SILVER ME.,1F7 ,4Q2; W(NAVI,*BGM,*CRC,*CRS & HEATER MIRROR),SILVER ME.,1F7 ,4Q2; WITH(*CRC,*CRS & HEATER MIRROR),SILVER ME.,1F7 ,4Q2
main89348-33080-C0×2iZRE152..6F..GLXI;ZRE152..4FC..(GLXI,GLXS); ZRE152..GLXI; ZRE152..PREM200705-201009
DUMMY-MAT BLACK,1G3 ,209 ,3R3 ,8S6; W(NAVI,*BGM,*CRC,*CRS & HEATER MIRROR),DUMMY-MAT BLACK,1G3 ,209 ,3R3 ,8S6; WITH(*CRC,*CRS & HEATER MIRROR),DUMMY-MAT BLACK,1G3 ,209 ,3R3 ,8S6
9010906383
main90109-06383
9017906127
main90179-06127
91674A1028
main91674-A1028
25 parts on this diagram · 2 diagrams in section
