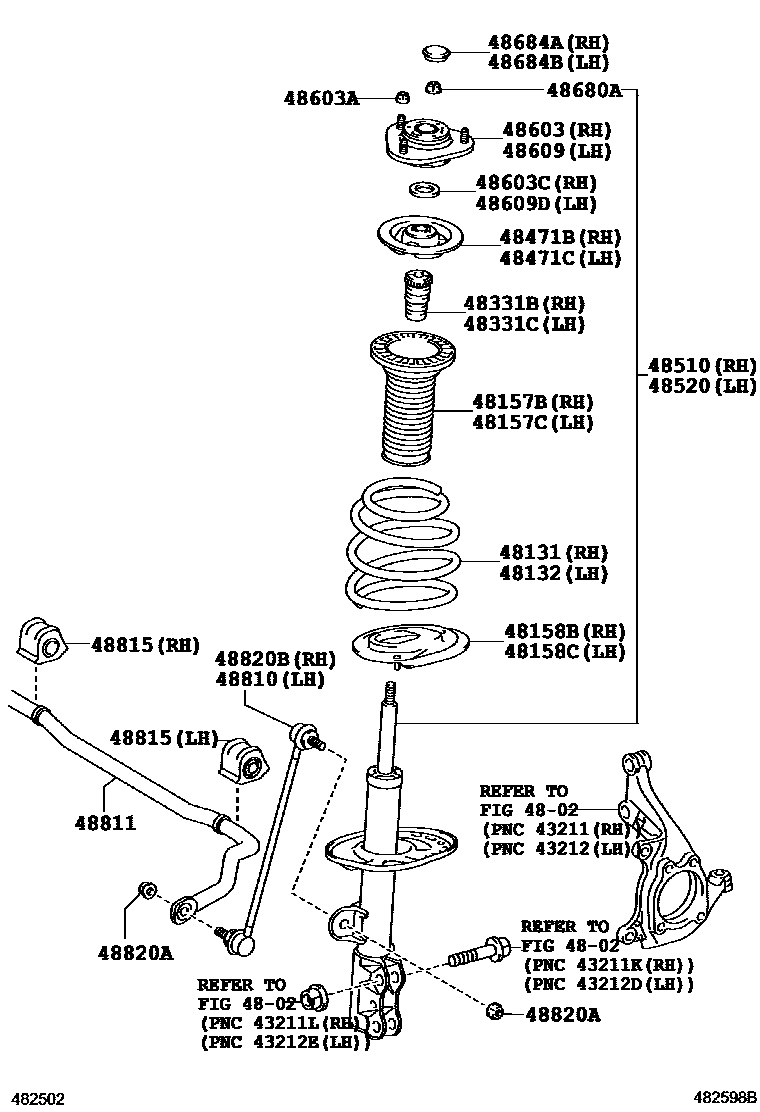

FRONT SPRING & SHOCK ABSORBER

4802

48131SPRING, FRONT COIL, RH

main48131-02C50iZRE151200705-200801

sub48131-02G60

main48131-02G60iZRE152200705-201401

main48131-02G61iZRE15#..GL,GLI,GLXI201401

main48131-02K80iZRE153201009-201301

48132SPRING, FRONT COIL, LH

main48131-02C50iZRE151200705-200801

sub48131-02G60

main48131-02G60iZRE151,152..GL,GLI,GLXI200705-201401

main48131-02G61iZRE15#..GL,GLI,GLXI201401

main48131-02K80iZRE153201009-201301

48157BINSULATOR, FRONT COIL SPRING, UPPER RH

main48157-02131iZRE15#200705-200807

sub48157-02132

main48157-02132iZRE15#200808-201203

48157CINSULATOR, FRONT COIL SPRING, UPPER LH

main48157-02131iZRE15#200705-200807

sub48157-02132

main48157-02132iZRE15#200808-201203

48158BINSULATOR, FRONT COIL SPRING, LOWER RH

main48158-02100iZRE15#200705-200807

sub48158-02101

main48158-02101iZRE15#..GL,GLI,GLX,GLXI200808-201203

48158CINSULATOR, FRONT COIL SPRING, LOWER LH

main48158-02100iZRE15#200705-200807

sub48158-02101

main48158-02101iZRE152..GLS,GLXS200808-201203

48331BBUMPER, FRONT SPRING, RH

main48331-12220iZRE15#200705-201203

48331CBUMPER, FRONT SPRING, LH

main48331-12220iZRE15#200705-201203

48471BSEAT, FRONT COIL SPRING, UPPER RH

main48044-02180iZRE15#..GL,GLI,GLXI201404

main48044-42010iZRE15#..GL,GLI,GLX,GLXI200705-201403

48471CSEAT, FRONT COIL SPRING, UPPER LH

main48044-02180iZRE15#..GL,GLI,GLXI201404

main48044-42010iZRE15#200705-201403

48510ABSORBER ASSY, SHOCK, FRONT RH

main48510-09S10iZRE15#200705-200804

MARK 48510-02470

sub48510-09W70

main48510-09W70iZRE15#200804-201101

MARK 48510-02471

sub48510-09W71

main48510-09W71iZRE152..GLS,GLXS201101-201203

MARK 48510-02472

48520ABSORBER ASSY, SHOCK, FRONT LH

main48520-09K70iZRE15#200705-200804

MARK 48520-02470

sub48520-09P70

main48520-09P70iZRE15#200804-201101

MARK 48520-02471

sub48520-09P71

main48520-09P71iZRE152..GLS,GLXS201101-201203

MARK 48520-02472

48603SUPPORT SUB-ASSY, FRONT SUSPENSION, RH

main48609-02180iZRE152..GLS,GLXS200705-201203

48603ANUT(FOR FRONT SUSPENSION SUPPORT)

main90178-10030iZRE15#200705-201007

main90178-C0061iZRE15#201007-201203

48603CSEAL, DUST(FOR FRONT SUSPENSION SUPPORT RH)

main90303-22002iZRE15#..GL,GLI,GLX,GLXI200705-201203

48609SUPPORT SUB-ASSY, FRONT SUSPENSION, LH

main48609-02180iZRE152..GLS,GLXS200705-201203

48609DSEAL, DUST(FOR FRONT SUSPENSION SUPPORT LH)

main90303-22002iZRE15#..GL,GLI,GLX,GLXI200705-201203

48680ANUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER)

main90177-14005iZRE15#200901-201403

main90177-14005iZRE15#201403-201406

(J)

main90177-C0007iZRE15#201403-201406

(L)

main90179-14015iZRE15#200705-200812

48684ACOVER, FRONT SUSPENSION SUPPORT DUST, RH

main48684-0R020iZRE152..GLS,GLXS200904-201203

main48684-52010iZRE15#200705-200903

48684BCOVER, FRONT SUSPENSION SUPPORT DUST, LH

main48684-0R020iZRE15#200904-201203

main48684-52010iZRE15#200705-200903

48810LINK ASSY, FRONT STABILIZER, LH

main48820-02080iZRE152..GLS,GLXS200705-201203

48811BAR, STABILIZER, FRONT

main48811-02220iZRE15#200705-201309

sub48811-02320

main48811-02320iZRE15#..GL,GLI,GLXI201310

48815BUSH, FRONT STABILIZER BAR, NO.1

main48815-02160iZRE15#200705-201203

LH

sub48815-02161

main48815-02190iZRE152..GLS,GLXS200705-201203

RH

sub48815-02191

48820ANUT(FOR FRONT STABILIZER LINK)

main90178-C0027iZRE15#201403-201406

(L)

main90179-12151iZRE15#200705-201403

main90179-12151iZRE15#201403-201406

(J)

48820BLINK ASSY, FRONT STABILIZER, RH

main48820-02080iZRE15#200705-201203

26 parts on this diagram · 1 diagram in section
