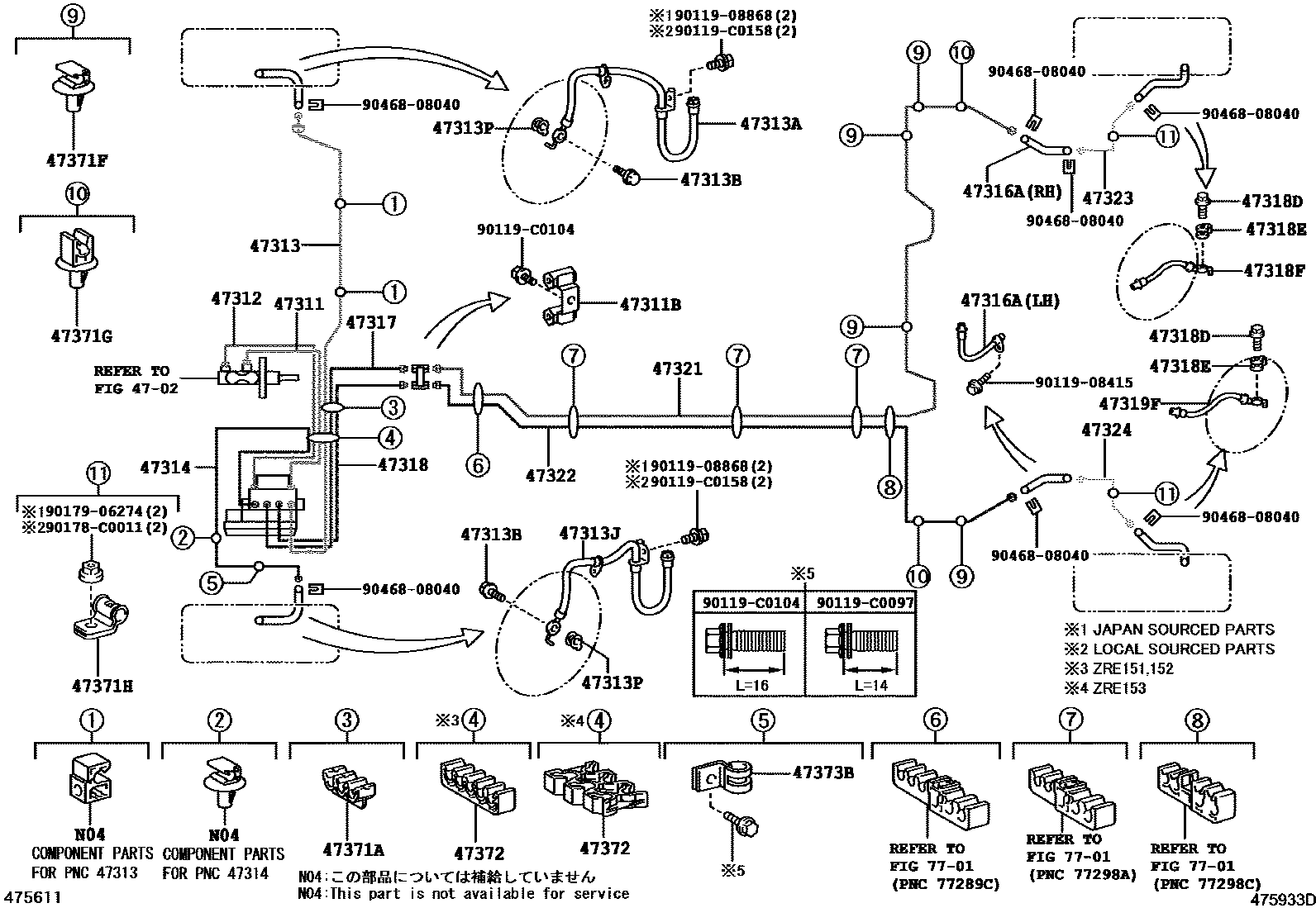

BRAKE TUBE & CLAMP

0001 1 0002 1 0003 1 0004 1

4702BRAKE MASTER CYLINDER

→ Go to FIG 47-02

47311TUBE, FRONT BRAKE, NO.1

main47311-02510iZRE152..PREM200705-201009

main47311-02520iZRE152..GLS,GLXS201009-201203

main47311-02710iZRE153201009-201301

47311BWAY, NO.1(FOR FRONT BRAKE TUBE)

main90412-10260iZRE15#200705-201009

main90412-C0001iZRE152..GLS,GLXS201009-201203

47312TUBE, FRONT BRAKE, NO.2

main47312-02390iZRE152..PREM200705-201009

main47312-02400iZRE15#..GL,GLI,GLS,GLXI,GLXS200705-201009

main47312-02610iZRE153201009-201301

47313TUBE, FRONT BRAKE, NO.3

main47313-02460iZRE152..PREM200705-201009

main47313-02470iZRE152..GLS,GLXS201009-201203

main47313-02660iZRE153201009-201301

47313AHOSE, FLEXIBLE, NO.1(FOR FRONT)

main90947-C2008iZRE15#200705-201009

47313BBOLT, UNION(FOR FRONT FLEXIBLE HOSE)

main90401-10058×2iZRE15#200705-201002

main90401-C0001×2iZRE15#..GL,GLI,GLX,GLXI201009

47313JHOSE, FLEXIBLE, NO.2(FOR FRONT)

main90947-C2009iZRE152..GLS,GLXS201009-201203

47313PGASKET(FOR FRONT FLEXIBLE HOSE)

main47389-50020×2iZRE15#..GL,GLI,GLX,GLXI201009

47314TUBE, FRONT BRAKE, NO.4

main47314-02460iZRE152..PREM200705-201009

main47314-02470iZRE15#..GL,GLI,GLS,GLXI,GLXS200705-201009

main47314-02660iZRE153201009-201301

47316AHOSE, FLEXIBLE(FOR REAR BRAKE TUBE)

main90947-C2006iZRE152..GLS,GLXS201009-201203

LH

main90947-C2007iZRE15#200705-201009

RH

47317TUBE, FRONT BRAKE, NO.7

main47317-02380iZRE152..PREM200705-201009

main47317-02390iZRE15#..GL,GLI,GLS,GLXI,GLXS200705-201009

main47317-02580iZRE153201009-201301

47318TUBE, FRONT BRAKE, NO.8

main47318-02400iZRE152..PREM200705-201009

main47318-02410iZRE15#..GL,GLI,GLS,GLXI,GLXS200705-201009

main47318-02600iZRE153201009-201301

47318DBOLT, UNION(FOR REAR FLEXIBLE HOSE)

main90401-10058×2iZRE15#200705-201002

main90401-C0001×2iZRE15#201002-201009

47318EGASKET(FOR REAR FLEXIBLE HOSE)

main47389-50020×2iZRE15#200705-201009

47318FHOSE, FLEXIBLE(FOR REAR RH)

main90947-C2005iZRE15#200705-201009

47319FHOSE, FLEXIBLE(FOR REAR LH)

main90947-C2005iZRE15#200705-201009

47321TUBE, REAR BRAKE, NO.1

main47321-02220iZRE15#201009-201406

47322TUBE, REAR BRAKE, NO.2

main47322-02220iZRE15#200705-201009

47323TUBE, REAR BRAKE, NO.3

main47323-02100iZRE15#200705-201009

47324TUBE, REAR BRAKE, NO.4

main47324-02100iZRE15#200705-201009

47371ACLAMP, BRAKE TUBE, NO.1

main90464-00868iZRE15#200705-201009

47371FCLAMP, BRAKE TUBE, NO.10

main90949-01D17×4iZRE15#200705-201009

47371GCLAMP, BRAKE TUBE, NO.11

main90949-01D29×2iZRE15#200705-201009

47371HCLAMP, BRAKE TUBE, NO.12

main90461-10837×2iZRE15#200705-201009

47372CLAMP, BRAKE TUBE, NO.2

main90464-00898iZRE153201009-201101

main90464-00900iZRE152..GLS,GLXS201009-201203

main90464-00933iZRE153201102-201301

47373BCLAMP, BRAKE TUBE, NO.3

main90461-10781iZRE15#..GL,GLI,GLX,GLXI201009

7701FUEL TANK & TUBE

→ Go to FIG 77-01

9011908415

main90119-08415

9011908868

main90119-08868

90119C0097

main90119-C0097

90119C0104

main90119-C0104

90119C0158

main90119-C0158

90178C0011

main90178-C0011

9017906274

main90179-06274

9046808040

main90468-08040

36 parts on this diagram · 4 diagrams in section
