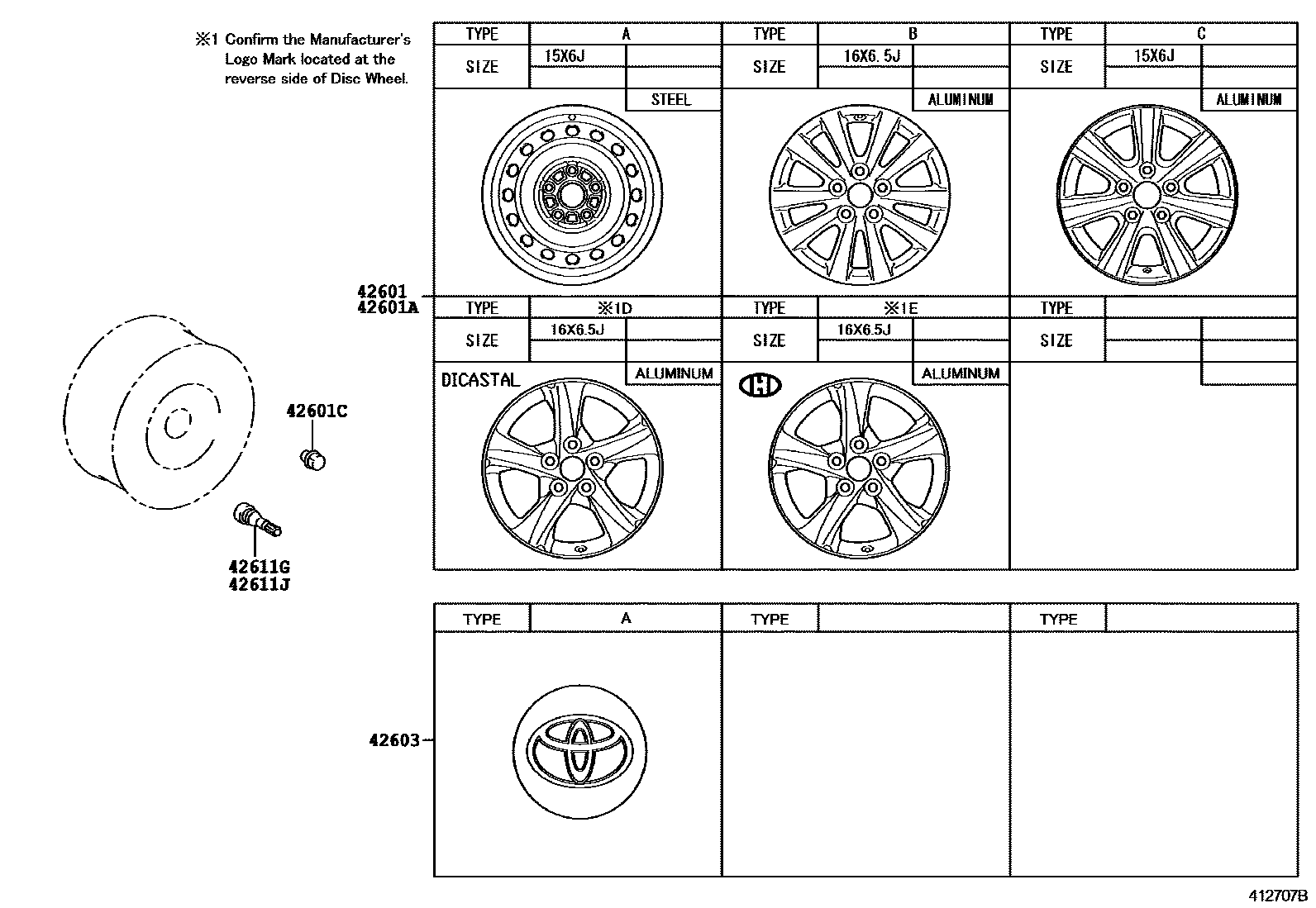

DISC WHEEL & WHEEL CAP

42601WHEEL, DISC

main42611-02820×4i201009-201406

15X6J, #,TYPE C:REFER ILLUST.

main42611-02830×4i200705-201009

16X6.5J, #,TYPE B:REFER ILLUST.

main42611-02D00×4i201402-201406

16X6.5J, #,TYPE D:REFER ILLUST.

main42611-02D10×4i201402-201406

16X6.5J, #,TYPE E:REFER ILLUST.

main42611-02G80×4i201303-201406

16X6.5J, #,LIMITED'13(1.8 LEATHER SEAT)&TIRE & DISC WHEEL-205/55R16 6.5J,TYPE E:REFER ILLUST.

42601AWHEEL, DISC (FOR SPARE)

main42611-02830i200705-201009

16X6.5J, #,TYPE B:REFER ILLUST.

main42611-02870i200705-201009

15X6J, #,TYPE A:REFER ILLUST.

main42611-02D00i201402-201406

16X6.5J, #,TYPE D:REFER ILLUST.

main42611-02D10i201009-201402

16X6.5J, #,TYPE E:REFER ILLUST.

main42611-02G80i201303-201406

16X6.5J, #,LIMITED'13(1.8 LEATHER SEAT)&TIRE & DISC WHEEL-205/55R16 6.5J,TYPE E:REFER ILLUST.

42601CNUT, HUB (FOR AXLE)

main90942-01033×20i200705-200906

main90942-C1001×20i201009

42603ORNAMENT SUB-ASSY, WHEEL HUB

main42603-02250×4i201103-201203

*ALU,TYPE A:REFER ILLUST.

main42603-12730×4i200705-201009

TYPE A:REFER ILLUST.

main42603-12760×4i201009-201103

*ALU, NO PAINT REQ.,TYPE A:REFER ILLUST.

main42603-0E040×4i201203-201303

*ALU,LIMITED '12&TIRE & DISC WHEEL-205/55R16 6.5J,TYPE A:REFER ILLUST.

42611GVALVE (FOR TUBELESS TIRE)

main90942-05009×4i201402-201406

LIMITED'13(1.8 LEATHER SEAT)&TIRE & DISC WHEEL-205/55R16 6.5J

42611JVALVE (FOR TUBELESS TIRE SPARE)

main90942-05009i200705-201009

6 parts on this diagram · 2 diagrams in section
