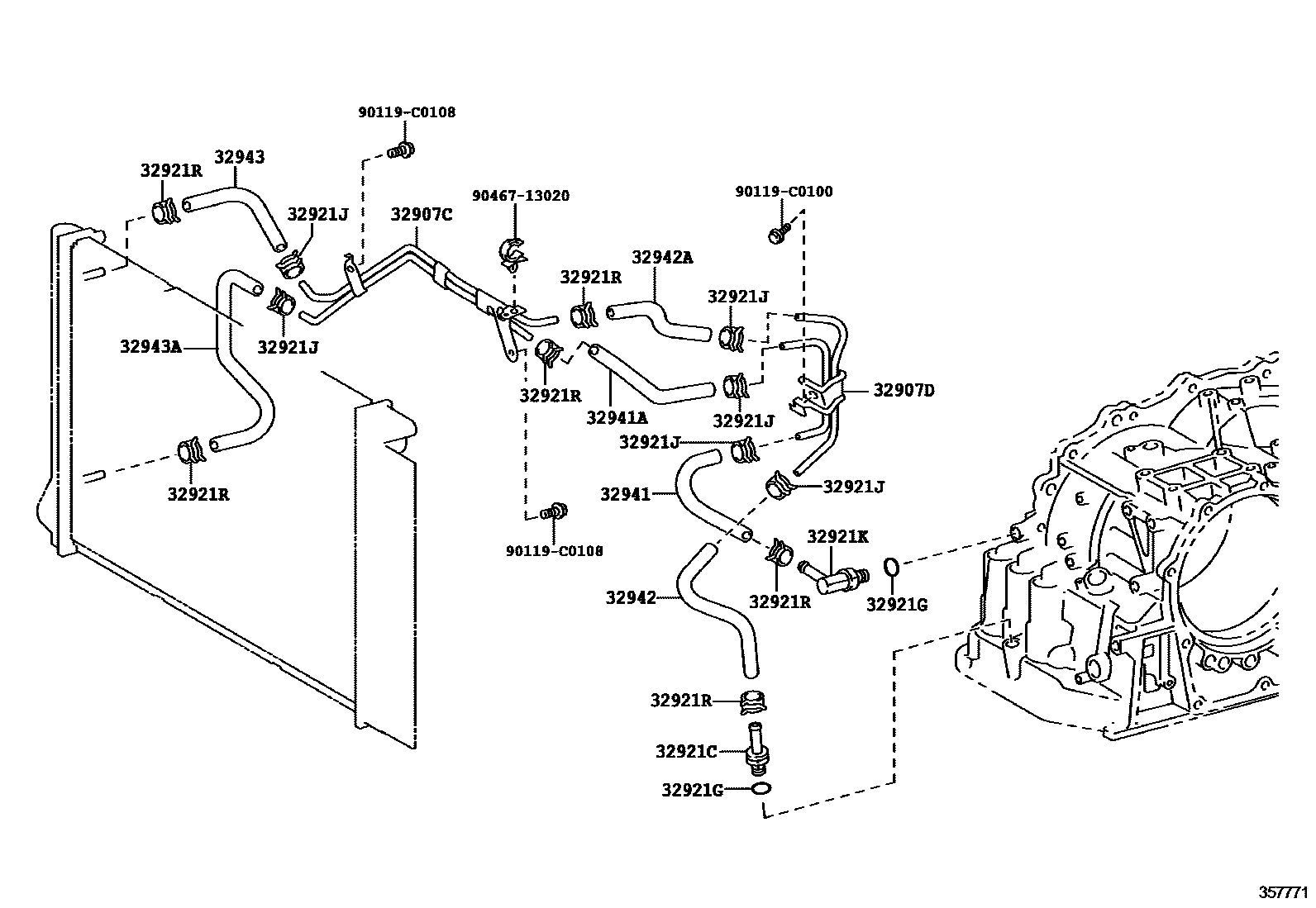

OIL COOLER & TUBE (ATM)

0001 1U340E 0002 1U341E

32907CTUBE SUB-ASSY, OIL COOLER W/O HOSE, NO.1

main32907-02080iZRE15#..4FC200705-200812

main32907-02081iZRE151..4FC201009

32907DTUBE SUB-ASSY, OIL COOLER W/O HOSE, NO.2

main32907-02090iZRE151..4FC201009

main32907-02100iZRE152..4FC200705-200707

main32907-02101iZRE152..4FC200707-201009

32921CUNION(FOR OIL COOLER TUBE)

main90404-13007iZRE15#..4FC200705-201009

32921GRING, O(FOR OIL COOLER TUBE UNION)

main90301-10018×2iZRE151..4FC201307

main90301-10189×2iZRE151..4FC201009-201307

32921JCLIP(FOR OIL COOLER HOSE)

main96135-51300×6iZRE15#..4FC200705-200903

main96137-41501×6iZRE15#..4FC200904-201009

32921KUNION, NO.2(FOR OIL COOLER TUBE)

main90404-13005iZRE15#..4FC200705-201009

32921RCLIP, NO.2(FOR OIL COOLER HOSE)

main90466-C0026×6iZRE151..4FC201301

(L)

main96137-41501×6iZRE151..4FC201009-201301

32941HOSE, OIL COOLER INLET, NO.1

main32943-02120iZRE151..4FC200705-201009

main32943-02140iZRE152..4FC200705-201009

32941AHOSE, OIL COOLER INLET, NO.2

main90445-C0002iZRE152..4FC200705-201009

main90445-C0007iZRE151..4FC200705-201009

32942HOSE, OIL COOLER OUTLET, NO.1

main32943-02130iZRE151..4FC201009

32942AHOSE, OIL COOLER OUTLET, NO.2

main90445-C0002iZRE151..4FC200705-201009

main90445-C0007iZRE152..4FC200705-201009

32943HOSE, TRANSMISSION OIL COOLER, NO.1

main32943-02090iZRE15#..4FC200705-201009

32943AHOSE, TRANSMISSION OIL COOLER, NO.2

main32943-02100iZRE15#..4FC200705-201009

90119C0100

main90119-C0100

90119C0108

main90119-C0108

9046713020

main90467-13020

16 parts on this diagram · 2 diagrams in section
