TRANSAXLE OR TRANSMISSION ASSY & GASKET KIT (ATM)

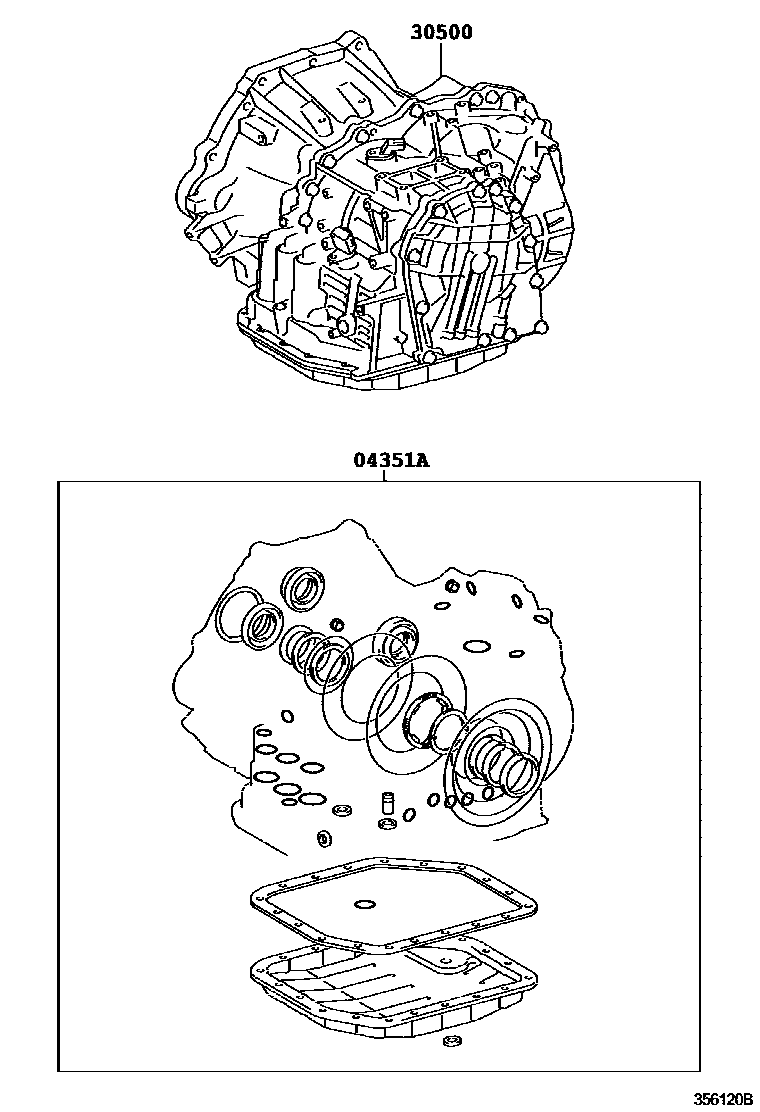

Parts diagram

04351AGASKET KIT, TRANSAXLE OVERHAUL(ATM)

main04351-12750i200705-201001

main04351-12751i201001-201009

main04351-52510i200705-201003

main04351-52511i201003-201009

main04351-52512i201201-201307

main04351-52513i201307

30500TRANSAXLE ASSY, AUTOMATIC

main30500-12B70i201009

U340E

main30500-12B80i200705-201009

U341E

main30500-12D30i200705-201009

U340E

2 parts on this diagram · 2 diagrams in section
