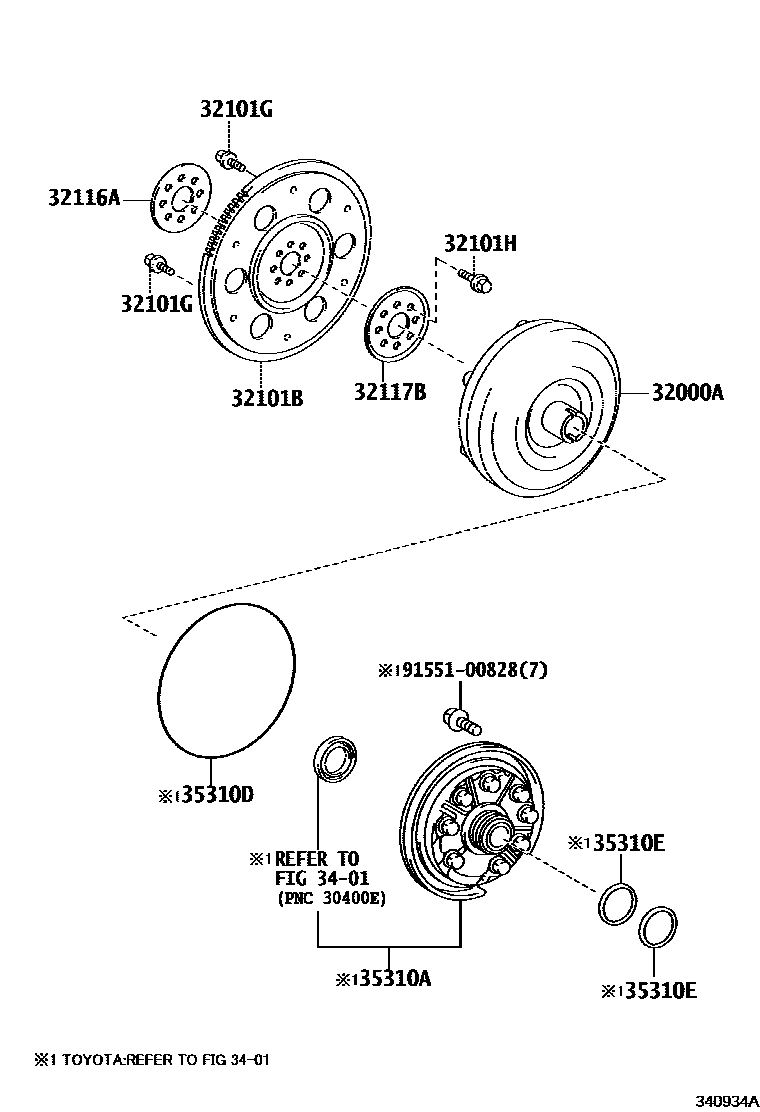

TORQUE CONVERTER, FRONT OIL PUMP(CVT)

0001 1K311 0002 1K111

32000ACONVERTER ASSY, TORQUE

main32000-12400iZRE152..CVFC201009-201406

main32000-28180iZRE153..CVFC201009-201301

32101BGEAR SUB-ASSY, DRIVE PLATE & RING

main32101-0D030iZRE152..CVFC..(GLI,GLXI)201009

(L)

main32101-12100iZRE152..CVFC..(GLS,GLXS)201009-201203

(J)

main32101-28050iZRE153..CVFC201009-201301

32101GBOLT(FOR DRIVE PLATE & TORQUE CONVERTER SETTING)

main90109-08113iZRE152..CVFC..(GLS,GLXS)201009-201203

*8-1.25PX12-8.4,BLACK

main90109-09001iZRE153..CVFC201009-201301

*9-1.25PX12.4-7.3,BLACK

main90119-08498×5iZRE152..CVFC..(GLI,GLXI)201009

*8-1.25PX12-8,YELLOW

main90119-09025×5iZRE153..CVFC201009-201301

*9-1.25PX12.4-8.4,SILVER

32101HBOLT, HEXAGON(FOR DRIVE PLATE SETTING)

main90105-10048×8iZRE152..CVFC..(GLS,GLXS)201009-201203

(J),(L)

32116ASPACER, DRIVE PLATE, FRONT

main32116-02020iZRE152..CVFC..(GLS,GLXS)201009-201203

main32116-12030iZRE153..CVFC201009-201301

32117BSPACER, DRIVE PLATE, REAR

main32117-02020iZRE152..CVFC..(GLS,GLXS)201009-201203

main32117-12040iZRE153..CVFC201009-201301

3401TRANSAXLE ASSY(CVT)

→ Go to FIG 34-01

35310APUMP ASSY, FRONT OIL

main35310-12121iZRE152..CVFC201009-201406

TOYOTA:REFER 34-01

35310DRING, O (FOR FRONT OIL PUMP)

main90301-99133iZRE152..CVFC201009-201406

TOYOTA:REFER 34-01

35310ESEAL, TYPE T OIL (FOR FRONT OIL PUMP)

main35617-12030×2iZRE152..CVFC201009-201406

TOYOTA:REFER 34-01

9155100828

main91551-00828

11 parts on this diagram · 2 diagrams in section
