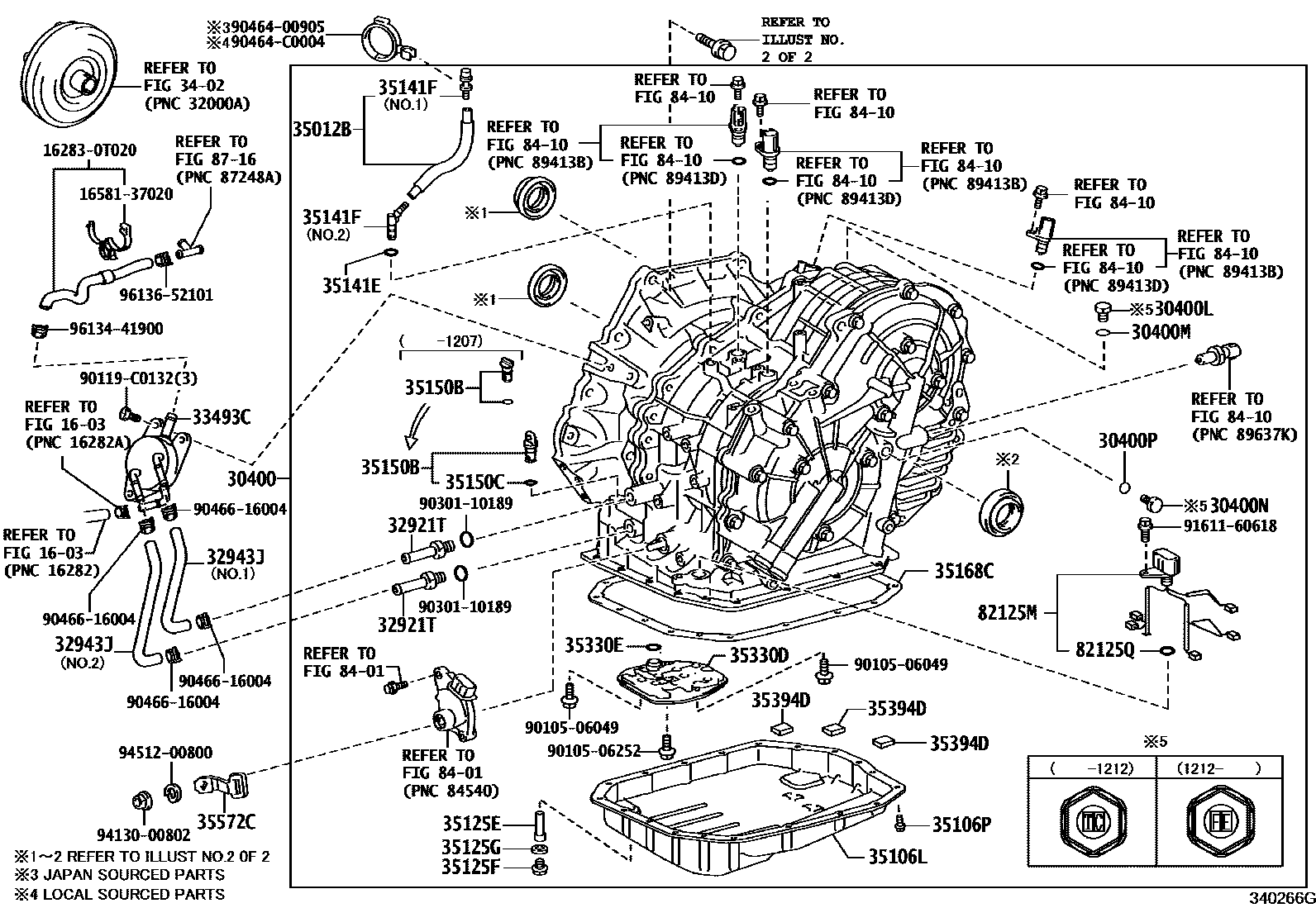

TRANSAXLE ASSY(CVT)

0001 1K111 0002 1K111 0003 1K311(FOR AISIN AW) 0004 1K311(FOR AISIN AW) 0005 1K311(FOR TOYOTA) 0006 1K311(FOR TOYOTA) 0007 1K311(FOR TOYOTA)

1603RADIATOR & WATER OUTLET

→ Go to FIG 16-03

30400TRANSAXLE ASSY, CONTINUOUSLY VARIABLE

main30400-12250iZRE152..CVFC201009-201311

K311,AISIN AW:REF.ILLUST

main30400-20030iZRE153..CVFC201009-201301

K111

main30400-20070iZRE152..CVFC201311-201404

K311,AISIN AW:REF.ILLUST

30400LPLUG , FILLER(CVT)

main90341-12025iZRE152..CVFC201009-201404

main90341-18061iZRE153..CVFC201009-201212

main90341-18077iZRE153..CVFC201212-201301

30400MGASKET, FILLER PLUG(CVT)

main90430-12221iZRE152..CVFC201009-201404

main90430-18008iZRE153..CVFC201009-201301

30400NPLUG, REFILL(CVT)

main90341-18061iZRE152..CVFC..(GLI,GLXI)201009-201203

main90341-18077iZRE152..CVFC201203-201406

30400PGASKET, REFILL PLUG(CVT)

main90430-18008iZRE152,153..CVFC201009-201406

32921TCONNECTOR, TUBE

main90404-13004×2iZRE153..CVFC201009-201301

32943JHOSE, TRANSMISSION OIL COOLER

main32942-02080iZRE153..CVFC201009-201301

NO.2

main90445-C0004iZRE153..CVFC201009-201301

NO.1

33493CCOOLER, TRANSMISSION OIL

main33493-20040iZRE153..CVFC201009-201301

main33493-20100iZRE152..CVFC201009-201406

TOYOTA:REFER TO ILL.

main33493-52030iZRE152..CVFC201009-201406

AISIN AW:REF.ILLUST

3402TORQUE CONVERTER, FRONT OIL PUMP(CVT)

→ Go to FIG 34-02

35012BHOSE SUB-ASSY, TRANSMISSION BREATHER

main35012-12090iZRE152..CVFC201009-201204

AISIN AW:REF.ILLUST

main35012-12100iZRE152..CVFC201204-201404

AISIN AW:REF.ILLUST

main3510A-44010iZRE153..CVFC201009-201201

main3510A-44011iZRE153..CVFC201201-201204

main3510A-44012iZRE153..CVFC201204-201301

35106LPAN SUB-ASSY, TRANSAXLE OIL(CVT)

main35106-20031iZRE153..CVFC201009-201301

main35106-20040iZRE152..CVFC201009-201406

35106PBOLT(FOR TRANSAXLE OIL PAN)

main90119-06173×16iZRE152..CVFC201009-201406

35125ETUBE, OVERFLOW(CVT)

main35125-20490iZRE152..CVFC201009-201406

main35125-44070iZRE153..CVFC201009-201301

35125FPLUG, OVERFLOW(CVT)

main90341-12034iZRE152,153..CVFC201009-201406

35125GGASKET, OVERFLOW PLUG(CVT)

main90430-12008iZRE152,153..CVFC201009-201406

35141ERING, O(FOR BREATHER PLUG)

main90301-06005iZRE152,153..CVFC201009-201406

35141FPLUG, BREATHER, NO.1(CVT)

main90930-03149iZRE152,153..CVFC..(GLS,GLX,GLXS)201009-201301

NO.1

main90930-03164iZRE153..CVFC201009-201301

NO.2

main90930-03191iZRE152..CVFC201009-201406

NO.2

main90930-03216iZRE152..CVFC201204-201406

NO.1

35150BPLUG ASSY, TRANSMISSION CASE

main35150-44010iZRE152..CVFC; ZRE153..CVFC201009-201207

TOYOTA:REFER TO ILL.

main35150-48010iZRE152..CVFC201207-201406

TOYOTA:REFER TO ILL.

35150CRING, O (FOR TRANSMISSION CASE PLUG)

main90301-09173iZRE152..CVFC201209-201404

AISIN AW:REF.ILLUST

35168CGASKET, TRANSAXLE OIL PAN(CVT)

main35168-12090iZRE152..CVFC201009-201402

main35168-12091iZRE152..CVFC201402-201406

main35168-20010iZRE153..CVFC201009-201301

35330DSTRAINER ASSY, OIL

main35330-0W080iZRE152..CVFC201009-201406

main35330-0W090iZRE153..CVFC201009-201301

35330ERING, O (FOR OIL STRAINER)

main90301-22014iZRE152..CVFC201009-201406

main90301-24013iZRE153..CVFC201009-201301

35394DMAGNET, OIL CLEANER(CVT)

main35394-30011×3iZRE152,153..CVFC201009-201406

35572CLEVER, TRANSMISSION CONTROL SHAFT

main35572-12160iZRE152..CVFC201009-201406

TOYOTA:REF.ILLUST

main35572-12170iZRE152..CVFC201009-201404

AISIN AW:REF.ILLUST

main35572-42030iZRE153..CVFC201009-201301

82125MWIRE, TRANSMISSION

main82125-12400iZRE152..CVFC201009-201406

TOYOTA:REF.ILLUST

main82125-44020iZRE153..CVFC201009-201301

82125QRING, O(FOR TRANSMISSION WIRE)

main90301-21009iZRE153..CVFC201009

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

8410OVERDRIVE & ELECTRONIC CONTROLLED TRANSMISSION

→ Go to FIG 84-10

8716HEATING & AIR CONDITIONING - WATER PIPING

→ Go to FIG 87-16

162830T020HOSE, WATER BY-PASS, NO.6

main16283-0T020

1658137020CLAMP, HOSE(FOR WATER HOSE)

main16581-37020

9010506049

main90105-06049

9010506252

main90105-06252

90119C0132

main90119-C0132

9030110189

main90301-10189

9046400905

main90464-00905

90464C0004

main90464-C0004

9046616004

main90466-16004

9161160618

main91611-60618

9413000802

main94130-00802

9451200800

main94512-00800

9613441900

main96134-41900

9613652101

main96136-52101

44 parts on this diagram · 7 diagrams in section
