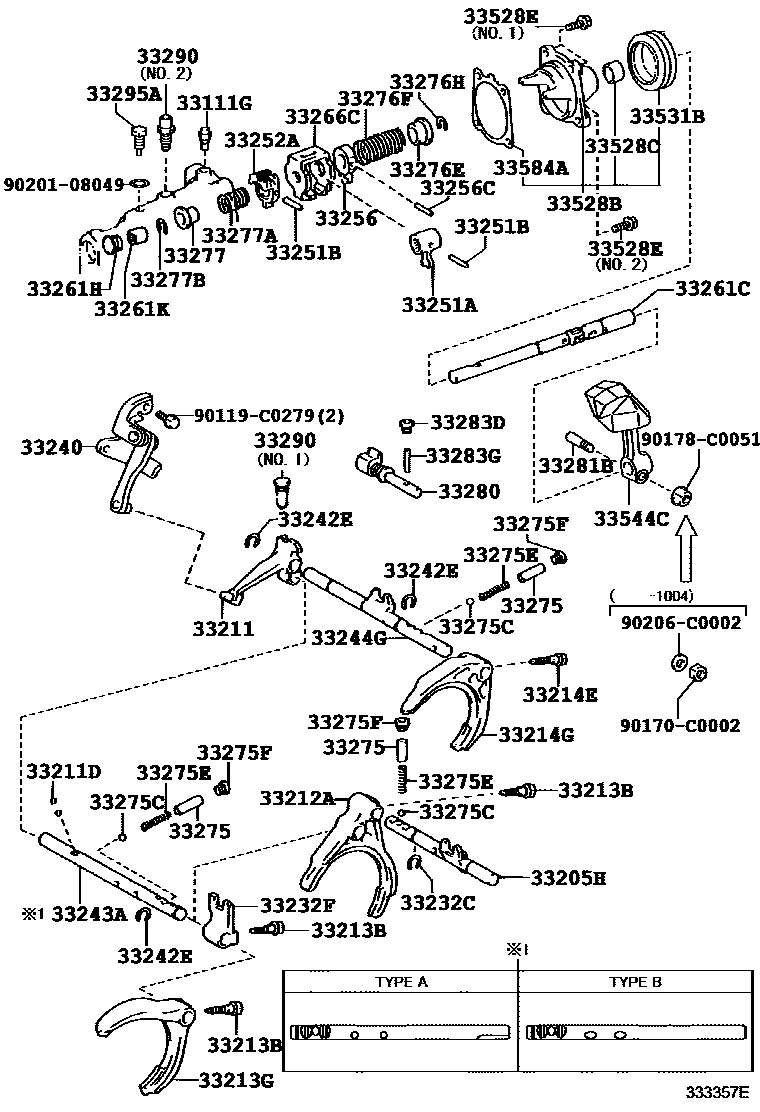

GEAR SHIFT FORK & LEVER SHAFT (MTM)
33205HSHAFT SUB-ASSY, GEAR SHIFT FORK, NO.1
PNC 33243A=TYPE A
PNC 33243A=TYPE B
33211DBALL(FOR REVERSE SHIFT FORK)
OD=6.35
OD=6.35
33212AFORK, GEAR SHIFT, NO.1
33213BBOLT(FOR SHIFT FORK SET)
33213GFORK, GEAR SHIFT, NO.2
33214EBOLT(FOR GEAR SHIFT FORK LOCK)
33214GFORK, GEAR SHIFT, NO.3
33232CRING, SNAP (FOR 1ST & 2ND SHIFT HEAD)
33232FHEAD, GEAR SHIFT, NO.1
33242ERING, SHAFT SNAP (FOR SHIFT FORK SHAFT)
33243ASHAFT, GEAR SHIFT FORK, NO.2
TYPE A:REFER ILLUST.
TYPE B:REFER ILLUST.
33244GSHAFT, GEAR SHIFT FORK, NO.3
PNC 33243A=TYPE A
PNC 33243A=TYPE B
33251ALEVER, SHIFT, INNER NO.1
33251BPIN, SLOTTED SPRING (FOR SHIFT INNER LEVER)
L=28.0
L=25.5
L=25.5
33256LEVER, SELECT INNER
33256CPIN, SLOTTED SPRING (FOR SELECT INNER LEVER)
33261CSHAFT, SHIFT & SELECT LEVER
sub33261-02011
sub33261-02012
sub33261-02031
sub33261-0D051
sub33261-12181
sub33261-52111
33261HSEAL, OIL (FOR SHIFT & SELECT LEVER SHAFT)
33266CPLATE, SHIFT INTERLOCK
33275SEAT, SHIFT DETENT BALL SPRING, NO.1
OD=10.7
33275CBALL (FOR SHIFT DETENT)
33275FPLUG (FOR SHIFT DETENT BALL)
33276FSPRING, COMPRESSION, NO.1 (FOR SELECT RETURN)
33277ASPRING, COMPRESSION, NO.2 (FOR SELECT RETURN)
33277BRING, E (FOR SELECT SPRING NO.2 SEAT)
33281BPIN, LEVER LOCK (FOR SHIFT OUTER LEVER)
33283DPLUG (FOR REVERSE RESTRICT PIN)
33283GPIN, SLOTTED SPRING (FOR REVERSE RESTRICT PIN)
33290BALL ASSY, LOCK, NO.1
NO.2
NO.1:REFER ILLUST.
NO.1
NO.2
33295ASHAFT, REVERSE RESTRICT
33528BCOVER, CONTROL SHAFT
33528CSEAL, OIL (FOR CONTROL SHAFT COVER)
33528EBOLT (FOR CONTROL SHAFT COVER)
*10-1.25PX25-19.8,NO.2
*10-1.25PX25-19.8,NO.1
*10-1.25PX25-19.8,NO.2
*10-1.25PX25-19.8,NO.1
*10-1.25PX25-25,NO.2
*10-1.25PX25-25,NO.1
33531BBOOT, DUST (FOR SHIFT & SELECT LEVER SHAFT)
33584AGASKET, CONTROL SHIFT LEVER RETAINER
90119C0279
main90119-C0279
90170C0002
main90170-C0002
90178C0051
main90178-C0051
9020108049
main90201-08049
90206C0002
main90206-C0002
51 parts on this diagram · 3 diagrams in section
