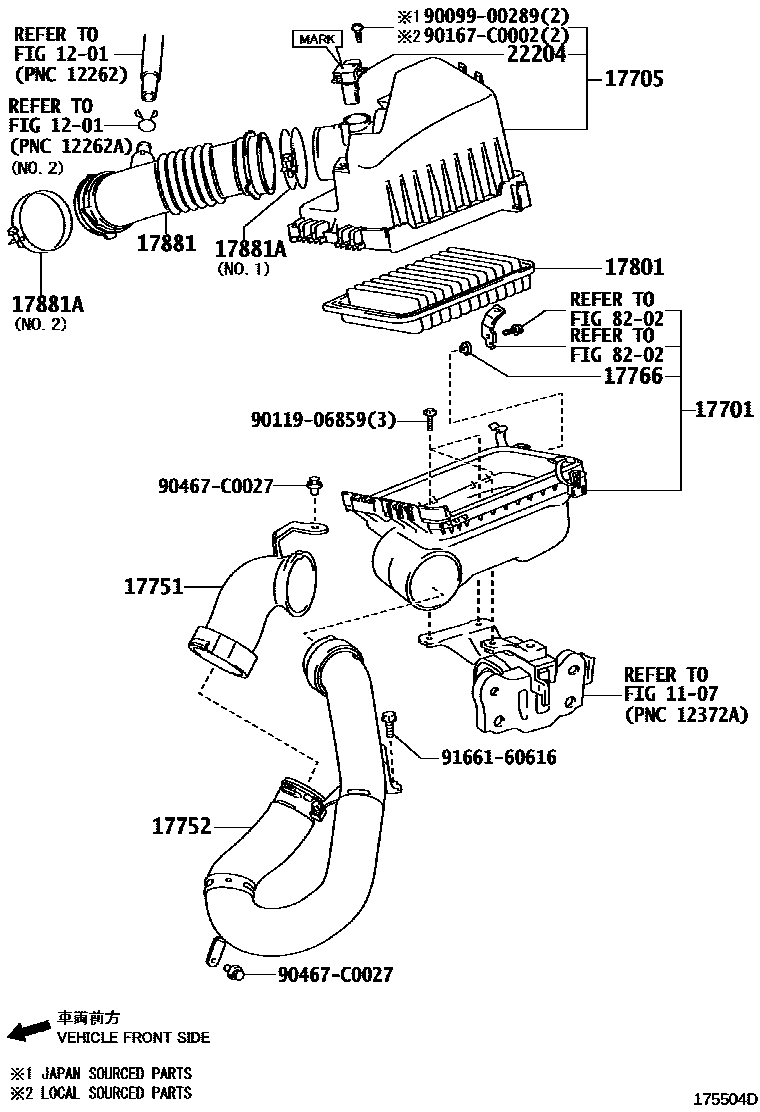

AIR CLEANER

1107

1201

17701CASE SUB-ASSY, AIR CLEANER

main17701-0T010i1ZRFE,2ZRFE..ZRE15#200705-201009

main17701-0T100i2ZRFE..ZRE152..GLS,GLXS201009-201203

17705CAP SUB-ASSY, AIR CLEANER

main17705-0T010i1ZRFE,2ZRFE..ZRE15#200705-201009

main17705-0T130i1ZRFE,2ZRFE,3ZRFE..ZRE15#201009-201102

sub17705-0T131

main17705-0T131i2ZRFE..ZRE152..GLS,GLXS201103-201203

17751INLET, AIR CLEANER, NO.1

main17751-0T010i2ZRFE..ZRE152..GLS,GLXS200705-201203

17752INLET, AIR CLEANER, NO.2

main17752-0T010i2ZRFE..ZRE152..GLS,GLXS200705-201203

17766STAY, AIR CLEANER, NO.2

main17706-0T010i1ZRFE,2ZRFE,3ZRFE..ZRE15#..GL,GLI,GLX,GLXI201002-201203

main17706-22010i1ZRFE,2ZRFE..ZRE15#200705-201002

17801ELEMENT SUB-ASSY, AIR CLEANER FILTER

main17801-0T020i1ZRFE,2ZRFE..ZRE15#200705-201203

17881HOSE, AIR CLEANER, NO.1

main17880-0T010i1ZRFE,2ZRFE..ZRE15#200705-201009

main17880-0T120i1ZRFE..ZRE151201009

main17880-0T130i2ZRFE,3ZRFE..ZRE152,153..GLI,GLX,GLXI201009-201203

17881ACLAMP(FOR AIR CLEANER HOSE, NO.1)

main96111-10750i2ZRFE..ZRE152..GLS,GLXS201009-201203

NO.1

main96111-10780i2ZRFE..ZRE152..GLS,GLXS200705-201203

NO.2

main96111-10830i1ZRFE,2ZRFE..ZRE15#200705-201009

NO.1

22204METER SUB-ASSY, INTAKE AIR FLOW

main22204-0T010i1ZRFE,2ZRFE..ZRE15#200705-201009

sub22204-0P010

main22204-0T040i1ZRFE,2ZRFE,3ZRFE..ZRE15#201009-201103

sub22204-28010

main22204-28010i1ZRFE,2ZRFE,3ZRFE..ZRE15#..GL,GLI,GLX,GLXI201103-201203

MARK 22204-28010

8202

9009900289

main90099-00289

9011906859

main90119-06859

90167C0002

main90167-C0002

90467C0027

main90467-C0027

9166160616

main91661-60616

17 parts on this diagram · 1 diagram in section
