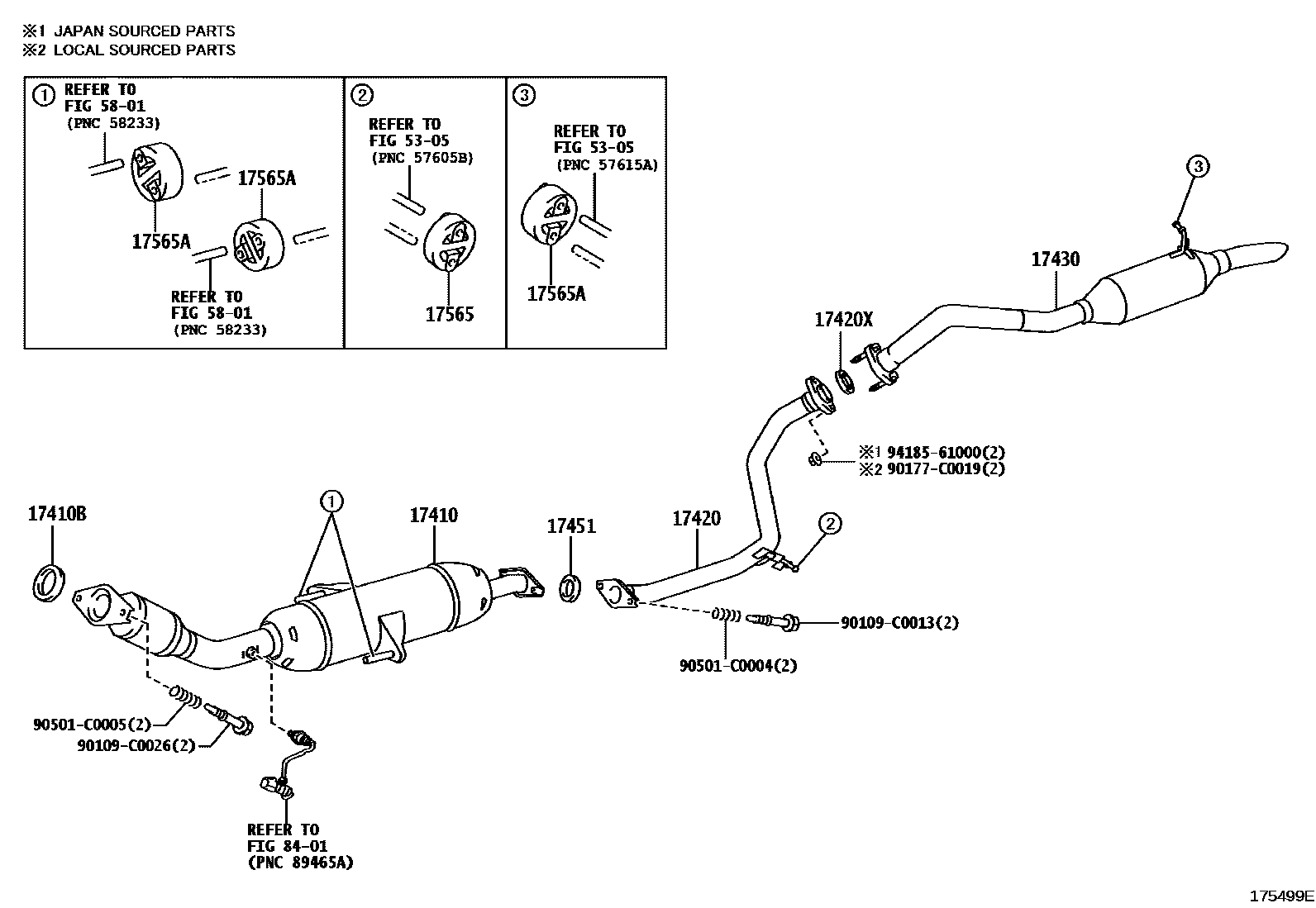

EXHAUST PIPE

17410PIPE ASSY, EXHAUST, FRONT

main17410-0T050i1ZRFE,2ZRFE..ZRE15#200705-201009

main17410-0T210supersedes 17410-0T200i2ZRFE..ZRE152..GLS,GLXS201009-201203

EXHAUST EMISSION CONTROL-ECE STEP5

main17410-0T230supersedes 17410-0T220i3ZRFE..ZRE153201009-201301

EXHAUST EMISSION CONTROL-ECE STEP5

17410BGASKET, EXHAUST PIPE

main17451-0T010i3ZRFE..ZRE153201009-201301

17420PIPE ASSY, EXHAUST, CENTER

main17420-0T020i1ZRFE,2ZRFE..ZRE15#200705-201009

17420XGASKET, EXHAUST PIPE, CENTER

main90917-06089i1ZRFE,2ZRFE..ZRE15#200705-201009

17430PIPE ASSY, EXHAUST, TAIL

main17430-0T030i1ZRFE,2ZRFE..ZRE15#200705-200912

main17430-0T031i1ZRFE,2ZRFE..ZRE15#201001-201009

17451GASKET, EXHAUST PIPE

main17451-0T020i1ZRFE,2ZRFE..ZRE15#200705-200808

main17451-0T021i1ZRFE,2ZRFE..ZRE15#200809-201009

main17451-0T022i2ZRFE..ZRE152..GLS,GLXS201102-201203

17565SUPPORT, EXHAUST PIPE, NO.5

main17565-0D070i1ZRFE,2ZRFE..ZRE15#200705-201009

17565ASUPPORT, EXHAUST PIPE, NO.4

main17565-0T010×3i1ZRFE,2ZRFE..ZRE15#200705-201009

5305FLOOR SIDE MEMBER

→ Go to FIG 53-05

5801FLOOR PAN & LOWER BACK PANEL

→ Go to FIG 58-01

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

90109C0013

main90109-C0013

90109C0026

main90109-C0026

90177C0019

main90177-C0019

90501C0004

main90501-C0004

90501C0005

main90501-C0005

9418561000

main94185-61000

17 parts on this diagram · 1 diagram in section
