Toyota 160310 — MANIFOLD

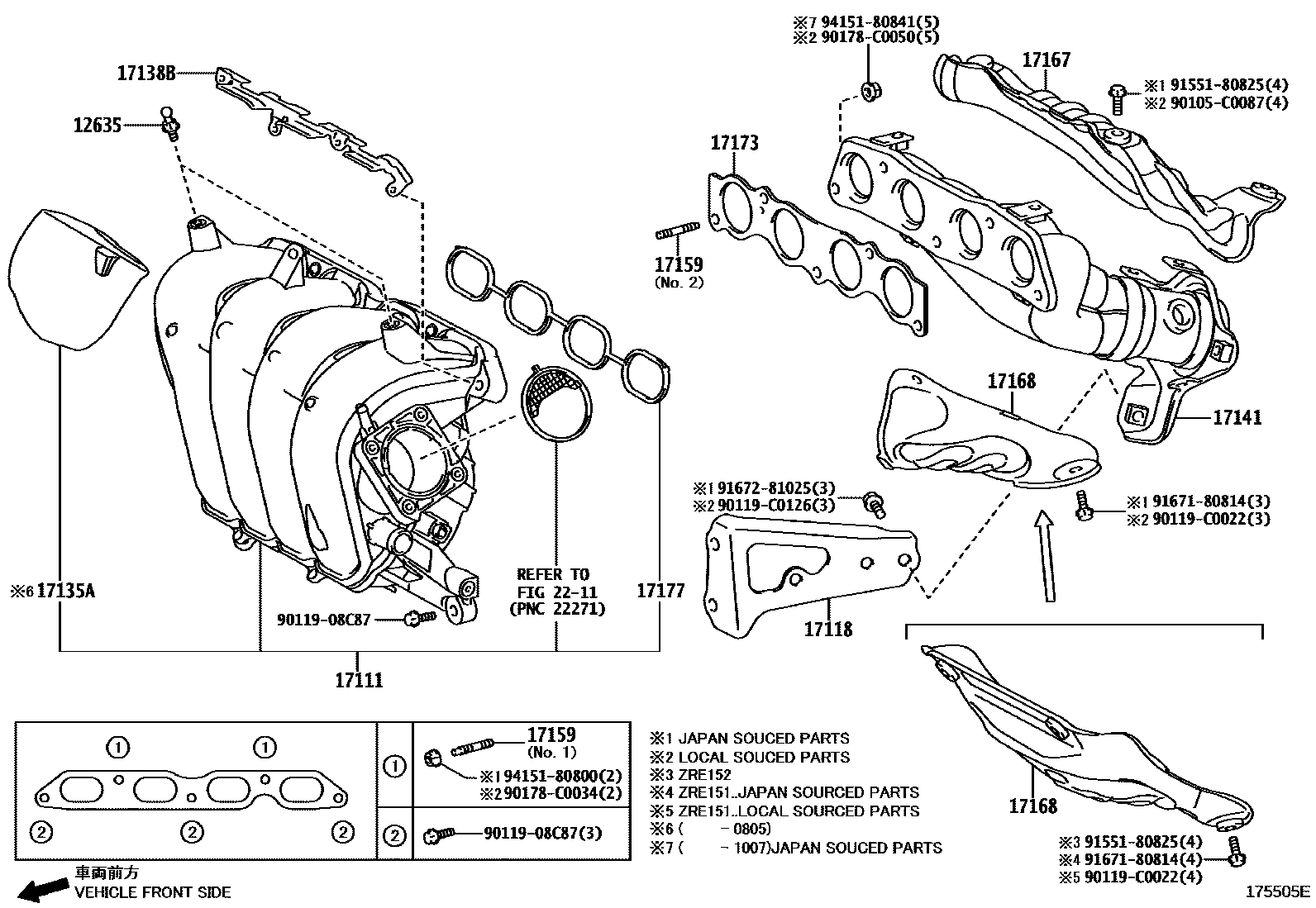

Parts diagram

12635JOINT, ENGINE COVER

17111MANIFOLD, INTAKE

17118STAY, MANIFOLD

17135AINSULATOR, INTAKE MANIFOLD, NO.1

17138BSTAY, INTAKE MANIFOLD

17141MANIFOLD, EXHAUST

17159BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)

17167INSULATOR, EXHAUST MANIFOLD HEAT, NO.1

17168INSULATOR, EXHAUST MANIFOLD HEAT, NO.2

17173GASKET, EXHAUST MANIFOLD TO HEAD

17177GASKET, INTAKE MANIFOLD TO HEAD, NO.1

2211FUEL INJECTION SYSTEM

→ Go to FIG 22-11

90105C0087

9011908C87

90119C0022

90119C0126

90178C0034

90178C0050

9155180825

9167180814

9167281025

9415180800

9415180841

23 parts on this diagram · 4 diagrams in section

MANIFOLD for Toyota 160310

This section contains 28 genuine Toyota parts for the MANIFOLD system of the Toyota 160310. Key components include: JOINT, ENGINE COVER, VACUUM PIPING, MANIFOLD, INTAKE, STAY, MANIFOLD, INSULATOR, INTAKE MANIFOLD, NO.1.
