OIL FILTER

04152ELEMENT KIT, OIL FILTER

main04152-37010i3ZRFE..ZRE153201009-201301

ELEMENT TYPE

15600AUNION(FOR OIL FILTER)

main90904-04006i1ZRFE,2ZRFE..ZRE15#200705-201406

CARTRIGE TYPE

15601FILTER SUB-ASSY, OIL

main90915-10003i1ZRFE,2ZRFE..ZRE151,152200705-201406

CARTRIGE TYPE

15609BRACKET SUB-ASSY, OIL FILTER

main15609-0T010i1ZRFE,2ZRFE..ZRE15#200705-201009

(L),CARTRIGE TYPE

main15609-0T010i1ZRFE,2ZRFE..ZRE151,152201009-201406

CARTRIGE TYPE

main15609-37010i1ZRFE,2ZRFE..ZRE15#200705-200908

(J),CARTRIGE TYPE

main15609-37040i3ZRFE..ZRE153201009-201301

ELEMENT TYPE

15609DPLUG, W/HEAD STRAIGHT SCREW(FOR OIL FILTER BRACKET)

main90341-20002i3ZRFE..ZRE153201009-201301

ELEMENT TYPE

main90341-20002i1ZRFE,2ZRFE..ZRE15#200705-200908

TYPE A,CARTRIGE TYPE

main90341-20012i1ZRFE,2ZRFE..ZRE151,152200705-201406

TYPE B,CARTRIGE TYPE

15609EGASKET, W/HEAD STRAIGHT SCREW PLUG

main90430-20004i3ZRFE..ZRE153201009-201301

ELEMENT TYPE

main90430-20018i1ZRFE,2ZRFE..ZRE15#200705-201406

CARTRIGE TYPE

15609HRING, O(FOR OIL FILTER BRACKET)

main90301-C0033i1ZRFE,2ZRFE..ZRE151,152201009-201406

CARTRIGE TYPE

main96721-24020i1ZRFE,2ZRFE..ZRE15#200705-201009

(J),CARTRIGE TYPE

main96723-24020i3ZRFE..ZRE153201009-201301

ELEMENT TYPE

15620CAP ASSY, OIL FILTER

main15620-37010i3ZRFE..ZRE153201009-201301

ELEMENT TYPE

15620CGASKET(FOR OIL FILTER CAP)

main90301-69011i3ZRFE..ZRE153201009-201301

ELEMENT TYPE

15679CLIP, OIL FILTER BRACKET

main15679-37010i3ZRFE..ZRE153201009-201301

ELEMENT TYPE

90105C0119

main90105-C0119

91551F0835

main91551-F0835

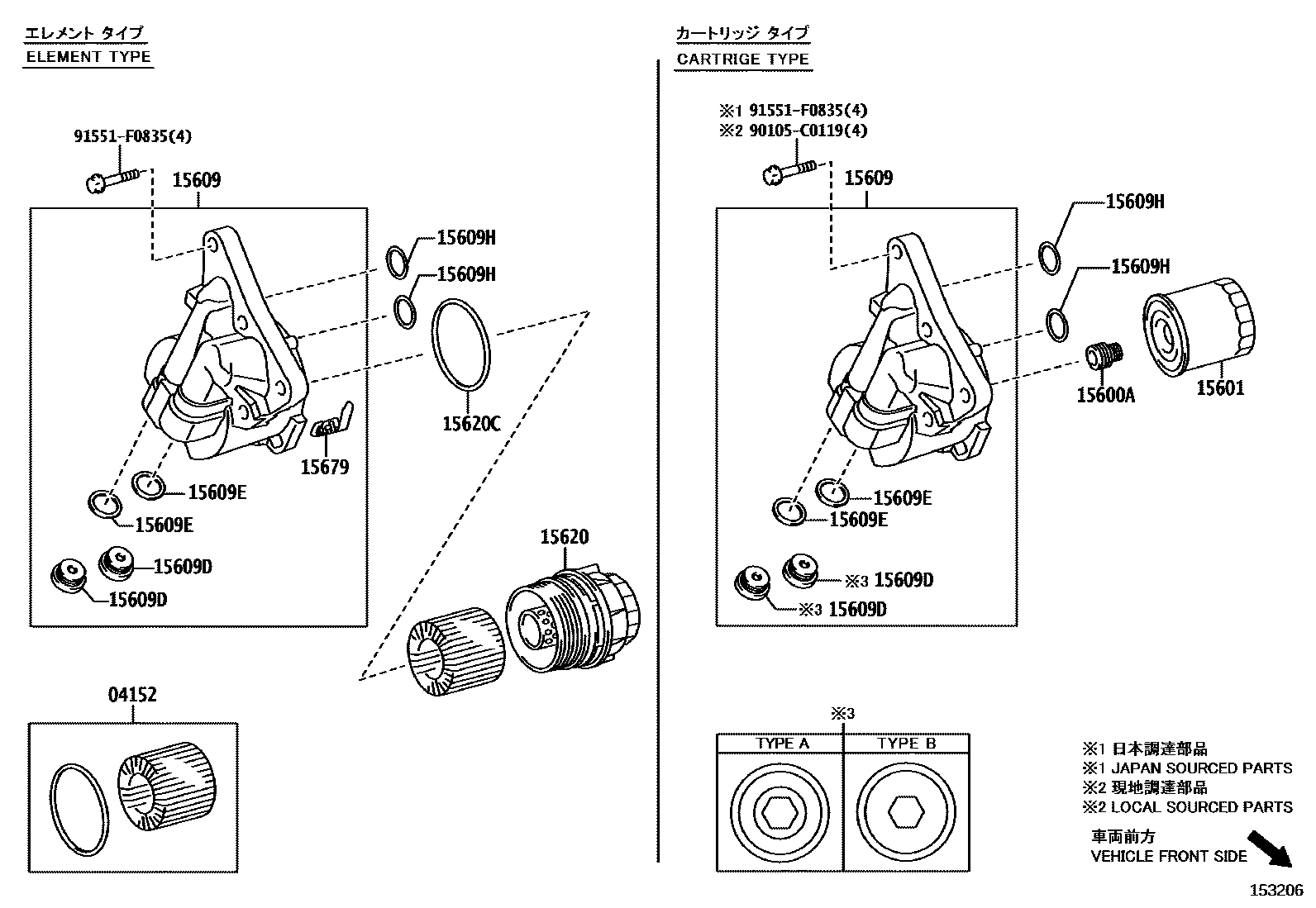

12 parts on this diagram · 1 diagram in section
