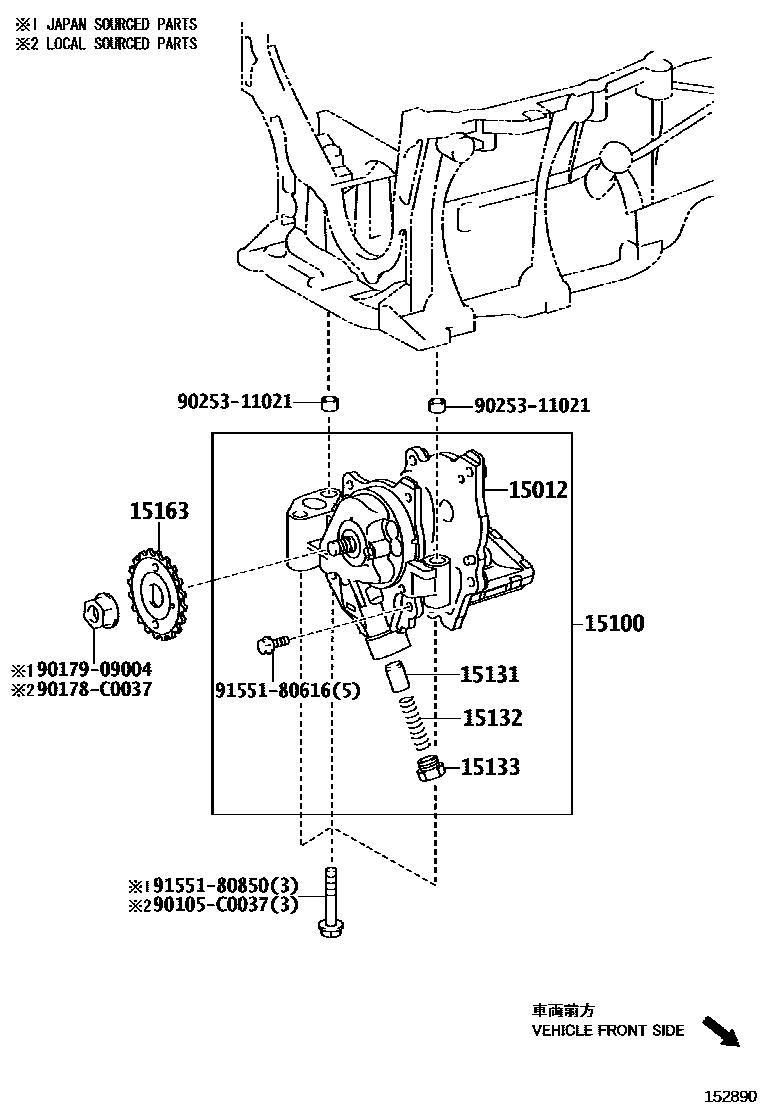

ENGINE OIL PUMP

15012COVER SUB-ASSY, OIL PUMP

main15012-0T010i2ZRFE..ZRE152..GLS,GLXS201009-201203

(L)

main15012-37010i1ZRFE,2ZRFE..ZRE151,152..GL,GLI,GLXI201009

(J)

15100PUMP ASSY, OIL

main15100-0T010i1ZRFE,2ZRFE..ZRE151,152..GL,GLI,GLXI201009

(L)

main15100-37010i1ZRFE,2ZRFE..ZRE15#200705-200706

(J)

main15100-37030i2ZRFE..ZRE152..GLS,GLXS201009-201203

(J)

15131VALVE, OIL PUMP RELIEF

main15131-0A040i2ZRFE..ZRE152..GLS,GLXS201009-201203

main15131-37010i1ZRFE,2ZRFE..ZRE15#200705-200706

(J)

15132SPRING, OIL PUMP RELIEF VALVE

main15132-46060i1ZRFE,2ZRFE..ZRE15#200705-201009

(L)

main15132-65020i1ZRFE,2ZRFE..ZRE15#200705-200706

(J)

15133PLUG, OIL PUMP RELIEF VALVE

main15133-20010i1ZRFE,2ZRFE..ZRE15#200705-200706

(J)

main15133-28020i1ZRFE,2ZRFE,3ZRFE..ZRE15#..GL,GLI,GLX,GLXI201009

15163GEAR, OIL PUMP DRIVE SHAFT

main15163-0H050i2ZRFE..ZRE152..GLS,GLXS201009-201203

(L)

main15163-28010i1ZRFE,2ZRFE..ZRE151,152..GL,GLI,GLXI201009

(J)

90105C0037

main90105-C0037

90178C0037

main90178-C0037

9017909004

main90179-09004

9025311021

main90253-11021

9155180616

main91551-80616

9155180850

main91551-80850

12 parts on this diagram · 1 diagram in section
