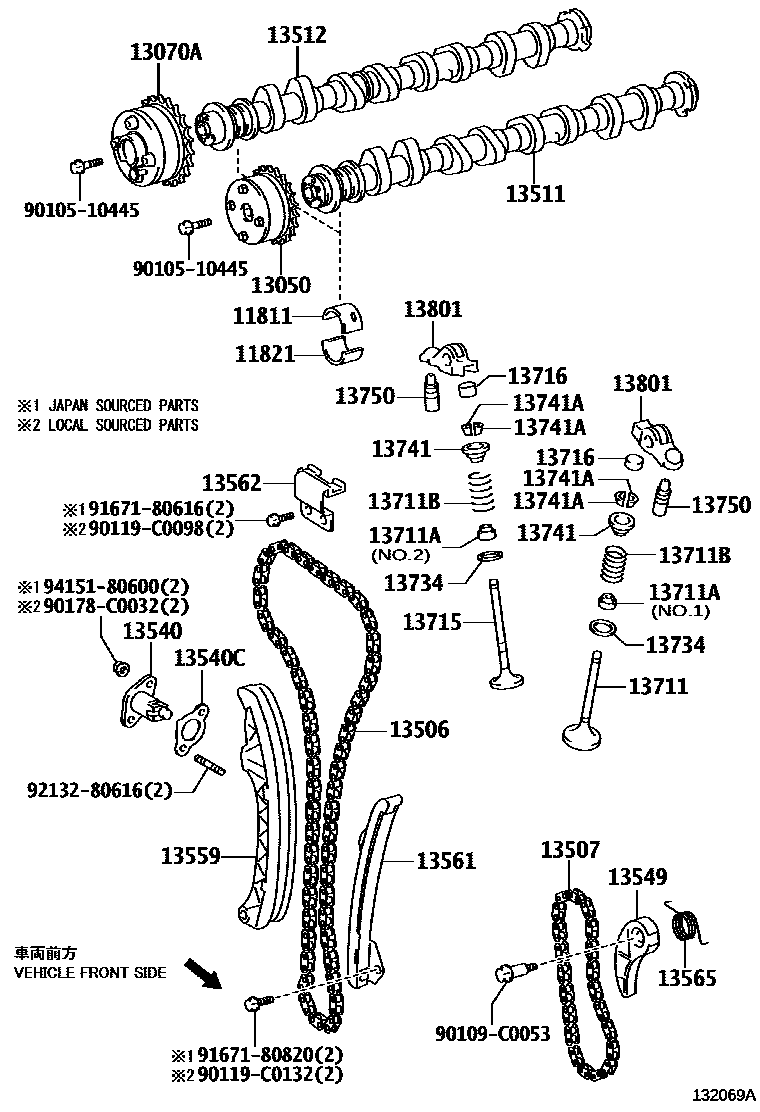

CAMSHAFT & VALVE
11811BEARING, CAMSHAFT, NO.1
(L)
(J)
11821BEARING, CAMSHAFT, NO.2
(L)
(J)
13050GEAR ASSY, CAMSHAFT TIMING
MADE IN USA
(L)
(L)
MADE IN CHINA
MADE IN JAPAN
13070AGEAR ASSY, CAMSHAFT TIMING EXHAUST
(L)
13506CHAIN SUB-ASSY
(L)
(J)
13507CHAIN SUB-ASSY, NO.2
(L)
(J)
13511CAMSHAFT
(L)
(L)
(J)
13512CAMSHAFT, NO.2
(L)
(L)
(J)
13540TENSIONER ASSY, CHAIN, NO.1
(L)
(J)
13540CGASKET(FOR CHAIN TENSIONER)
(L)
(J)
13549PLATE, CHAIN TENSIONER
(L)
(J)
13559SLIPPER, CHAIN TENSIONER
(L)
(J)
13561DAMPER, CHAIN VIBRATION, NO.1
(L)
(J)
13562DAMPER, CHAIN VIBRATION, NO.2
(L)
(J)
13565SPRING, CHAIN DAMPER
(L)
(J)
13711VALVE, INTAKE
(L)
(J)
13711ASEAL OR RING, O(FOR VALVE STEM OIL)
NO.1
(J),NO.2
(L),NO.2
13711BSPRING, COMPRESSION(FOR INNER)
(J)
(L)
13715VALVE, EXHAUST
(L)
(J)
13716CAP, VALVE STEM
13734SEAT, VALVE SPRING
(L)
13741RETAINER, VALVE SPRING
13741ALOCK, VALVE SPRING RETAINER
13750ADJUSTER ASSY, VALVE LASH
(L)
(L)
13801ARM SUB-ASSY, VALVE ROCKER, NO.1
(L)
(J)
9010510445
main90105-10445
90109C0053
main90109-C0053
90119C0098
main90119-C0098
90119C0132
main90119-C0132
90178C0032
main90178-C0032
9167180616
main91671-80616
9167180820
main91671-80820
9213280616
main92132-80616
9415180600
main94151-80600
34 parts on this diagram · 1 diagram in section
