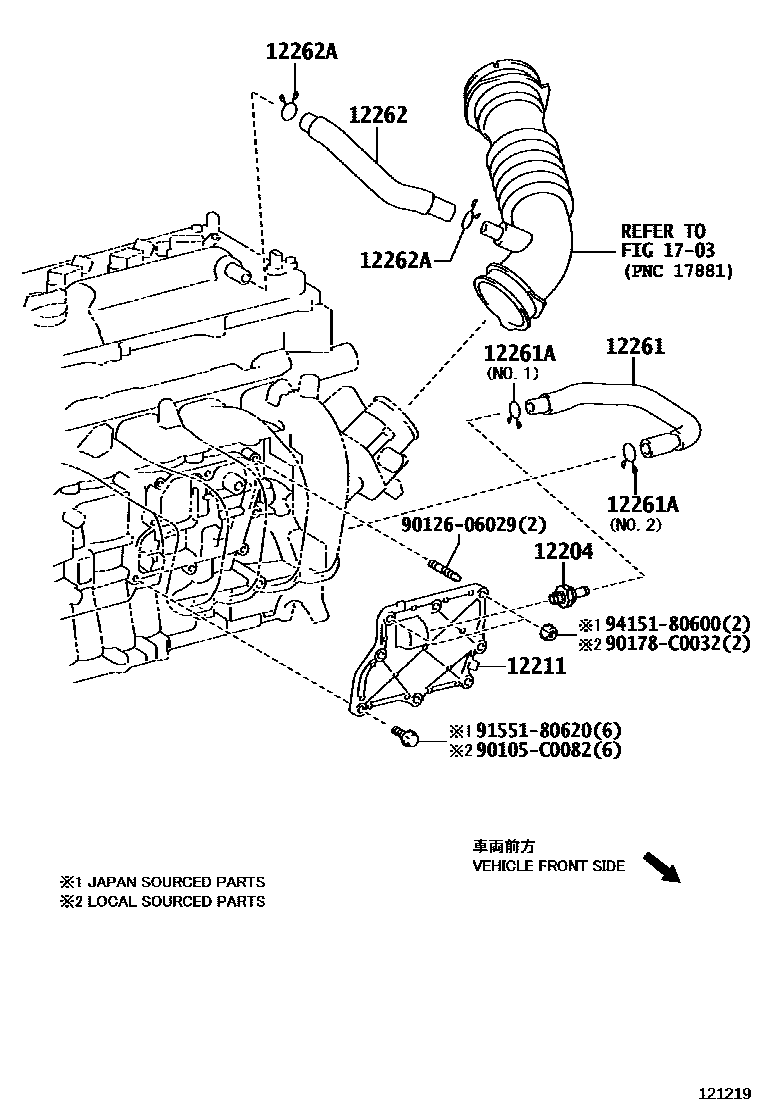

VENTILATION HOSE
12204VALVE SUB-ASSY, VENTILATION
12211CASE, VENTILATION, NO.1
12261HOSE, VENTILATION
(L)
(L)
(J)
(J)
12261ACLIP OR CLAMP(FOR VENTILATION HOSE)
NO.2
NO.1
NO.2
NO.2
12262HOSE, VENTILATION, NO.2
(L)
(L)
(J)
(J)
12262ACLIP(FOR VENTILATION HOSE NO.2)
1703AIR CLEANER
90105C0082
main90105-C0082
9012606029
main90126-06029
90178C0032
main90178-C0032
9155180620
main91551-80620
9415180600
main94151-80600
12 parts on this diagram · 1 diagram in section
