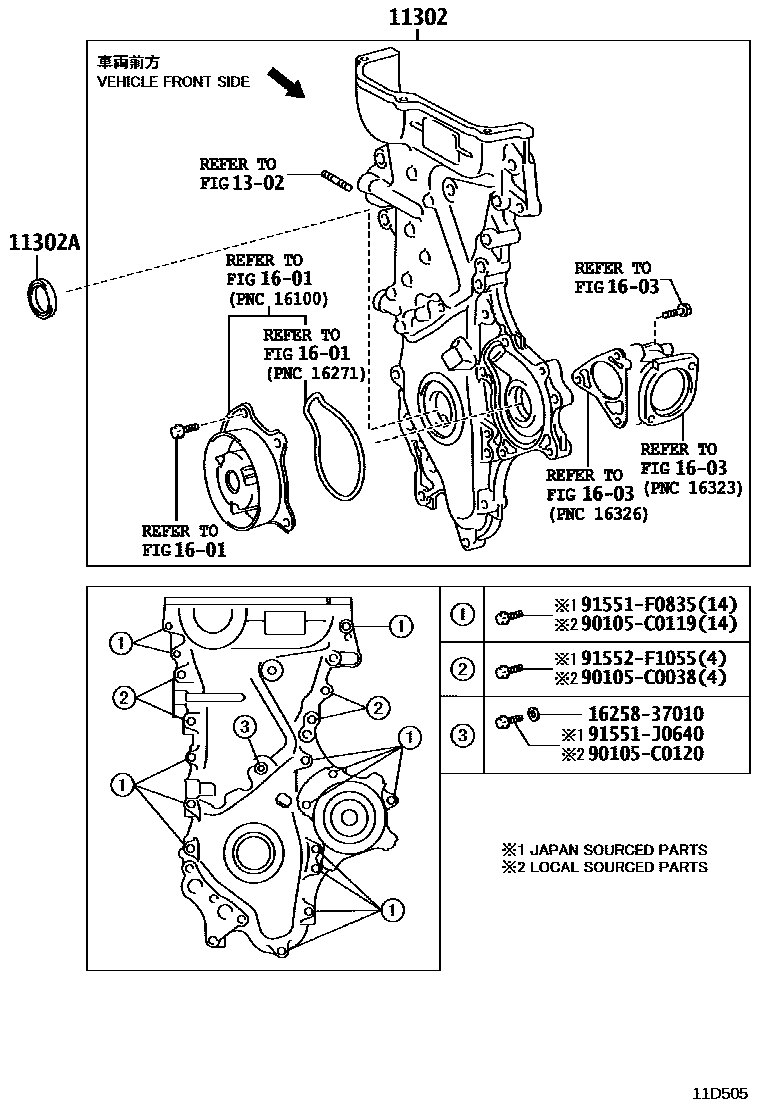

TIMING GEAR COVER & REAR END PLATE

11302COVER SUB-ASSY, TIMING CHAIN OR BELT

main11310-0T050i1ZRFE,2ZRFE..ZRE15#200705-200909

(L)

main11310-0T051i2ZRFE..ZRE152..GLS,GLXS201009-201203

(L)

main11310-37010i1ZRFE,2ZRFE..ZRE151,152201009-201201

(J)

main11310-37031i3ZRFE..ZRE153201009-201201

main11310-37032i3ZRFE..ZRE153201201-201211

11302ASEAL, OIL(FOR TIMING CHAIN OR BELT COVER)

main90311-38089i3ZRFE..ZRE153201009-201110

main90311-38096i3ZRFE..ZRE153201110-201301

main90311-T0024i1ZRFE,2ZRFE..ZRE15#200705-201009

1302CAMSHAFT & VALVE

→ Go to FIG 13-02

1601WATER PUMP

→ Go to FIG 16-01

1603RADIATOR & WATER OUTLET

→ Go to FIG 16-03

1625837010GASKET(FOR HEATER RETURN)

main16258-37010

90105C0038

main90105-C0038

90105C0119

main90105-C0119

90105C0120

main90105-C0120

91551F0835

main91551-F0835

91551J0640

main91551-J0640

91552F1055

main91552-F1055

12 parts on this diagram · 1 diagram in section
