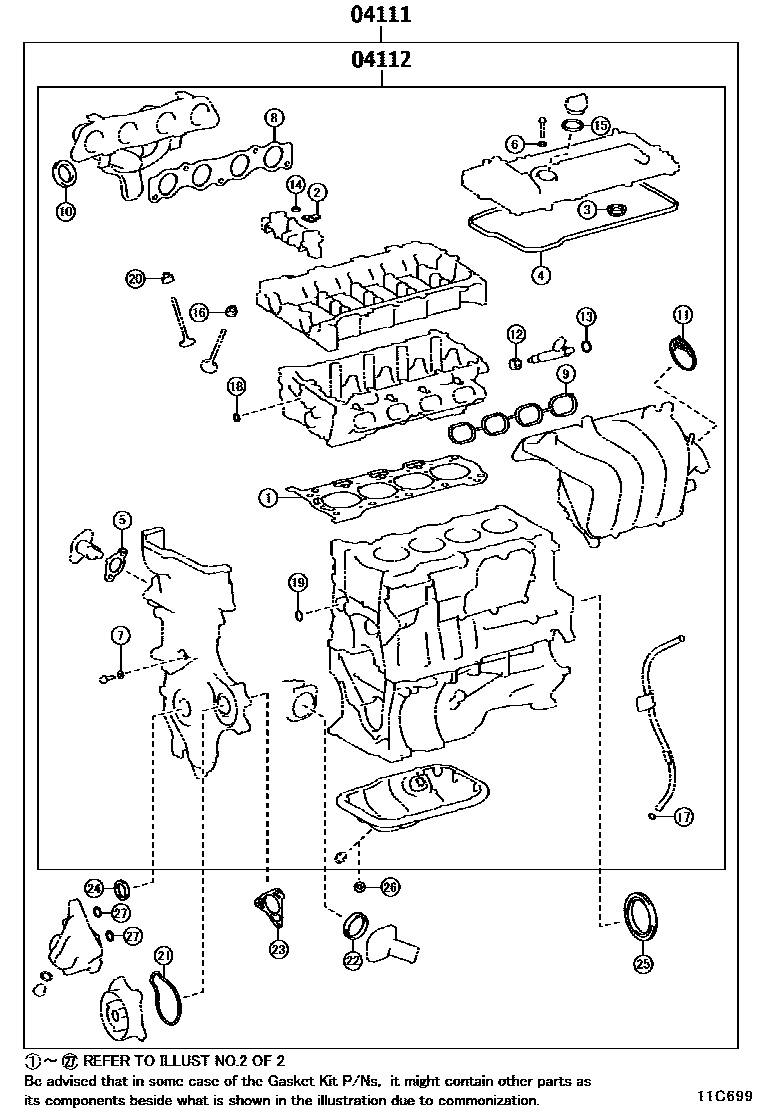

ENGINE OVERHAUL GASKET KIT

0001 1 0002 1 0003 1 0004 1

04111GASKET KIT, ENGINE OVERHAUL

main04111-0T020i1ZRFE,2ZRFE..ZRE15#200705-200806

main04111-0T021i1ZRFE,2ZRFE..ZRE15#200806-200905

main04111-0T022i1ZRFE,2ZRFE..ZRE15#200905-201009

main04111-0T023i1ZRFE,2ZRFE..ZRE151,152201110-201406

main04111-0T170i3ZRFE..ZRE153201009-201301

MADE IN CHINA

main04111-37370i3ZRFE..ZRE153201009-201110

MADE IN JAPAN

main04111-37372i3ZRFE..ZRE153..CVFC201110-201202

MADE IN JAPAN

main04111-37373i3ZRFE..ZRE153201203-201301

MADE IN JAPAN

04112GASKET KIT, ENGINE VALVE GRIND

main04112-0T020i1ZRFE,2ZRFE..ZRE15#200705-200806

main04112-0T021i1ZRFE,2ZRFE..ZRE15#200806-200905

main04112-0T022i1ZRFE,2ZRFE..ZRE15#200905-201009

main04112-0T023i1ZRFE,2ZRFE..ZRE151,152201110-201406

main04112-0T170i3ZRFE..ZRE153201009-201301

MADE IN CHINA

main04112-37310i3ZRFE..ZRE153201009-201110

MADE IN JAPAN

main04112-37311i3ZRFE..ZRE153..CVFC201110-201202

MADE IN JAPAN

main04112-37312i3ZRFE..ZRE153201203-201301

MADE IN JAPAN

2 parts on this diagram · 4 diagrams in section
