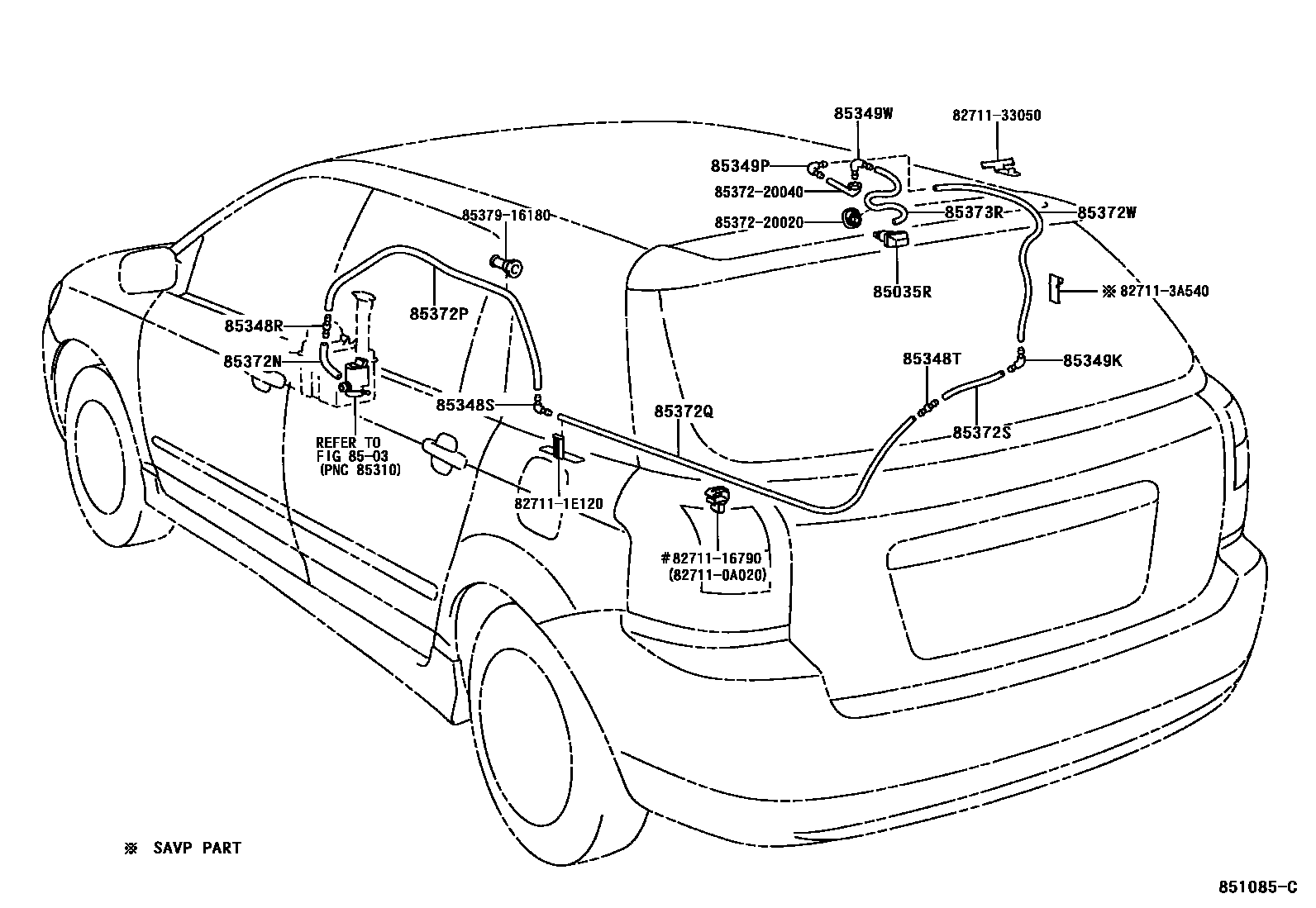

Toyota COROLLA (S.AFRICA)158 — REAR WASHER
8503WINDSHIELD WASHER
85035RNOZZLE SUB-ASSY, REAR WASHER
85348RJOINT, REAR WASHER HOSE, NO.1
85348SJOINT, REAR WASHER ELBOW, NO.1
85348TJOINT, REAR WASHER HOSE, NO.2
85349KJOINT, REAR WASHER ELBOW, NO.2
85349PJOINT, REAR WASHER ELBOW, NO.3
85349WJOINT, REAR WASHER ELBOW, NO.4
85372NHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.1
85372PHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.2
85372QHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.3
85372SHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.4
85372WHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.5
85373RHOSE, REAR WASHER (FROM JOINT TO NOZZLE)
827110A020WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
8271116790WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
827111E120WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
8271133050WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
827113A540WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
8537220020HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1
8537220040HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1
8537916180JOINT
22 parts on this diagram · 1 diagram in section
REAR WASHER for Toyota COROLLA (S.AFRICA)158
This section contains 22 genuine Toyota parts for the REAR WASHER system of the Toyota COROLLA (S.AFRICA)158. Key components include: WINDSHIELD WASHER, NOZZLE SUB-ASSY, REAR WASHER, JOINT, REAR WASHER HOSE, NO.1, JOINT, REAR WASHER ELBOW, NO.1, JOINT, REAR WASHER HOSE, NO.2.
