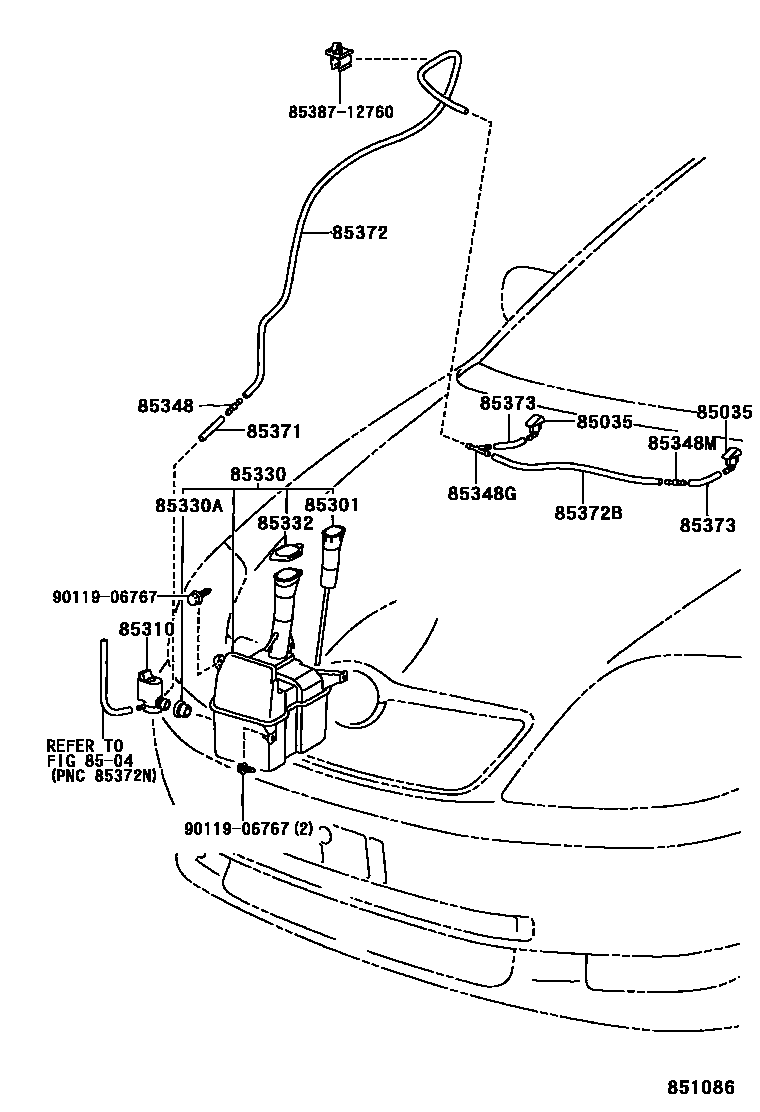

WINDSHIELD WASHER

0001 1 0003 1

85035NOZZLE SUB-ASSY, WASHER

main85381-12210×2iZZE12#200208-200408

main85381-44010×2iZZE12#200408-200707

8504REAR WASHER

→ Go to FIG 85-04

85301INLET SUB-ASSY, WASHER

main85318-12480iZZE12#200208-200408

85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER

main85330-10280iZZE120,121,122..4D200408-200707

main85330-10290iZZE12#..5D200408-200707

85330JAR ASSY, WINDSHIELD WASHER

main85315-12480iZZE12#200208-200408

main85315-12500iZZE12#..5D200408-200707

85330ABUSH, WINDSHIELD WASHER JAR

main90099-32089iZZE12#200208-200408

85332CAP, WINDSHIELD WASHER JAR

main85316-26030iZZE12#200208-200408

main85316-42011iZZE12#..5D200408-200707

85348JOINT, WINDSHIELD WASHER HOSE, NO.1

main85349-89122iZZE12#200208-200408

85348GJOINT, WINDSHIELD WASHER HOSE, NO.2

main85348-14390iZZE12#200208-200408

85348MJOINT, WINDSHIELD WASHER HOSE, NO.3

main85349-89122iZZE12#200208-200408

85371HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main90099-33080iZZE12#200208-200408

L=1450(*H,L=50)

85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1

main90446-07001iZZE12#200208-200408

L=1800(*H,L=1520)

85372BHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2

main90446-07001iZZE12#200208-200408

L=1800(*H,L=480)

85373HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)

main90099-33080×2iZZE12#200208-200408

L=1450(*H,L=90)

8538712760CLAMP NO.1 (FOR WINDSEIELD WASHER)

main85387-12760

9011906767

main90119-06767

16 parts on this diagram · 2 diagrams in section
