SWITCH & RELAY & COMPUTER

0001 1ENGINE & TRANSMISSION 0002 1ENGINE ROOM 0003 1ENGINE ROOM RELAY BLOCK 0004 1COWL 0005 1INSTRUMENT PANEL 0006 1IGNITION & COMBINATION SWITCH0007 1DOOR,ROOF,FLOOR & LUGGAGE 0008 1DOOR,ROOF,FLOOR & LUGGAGE

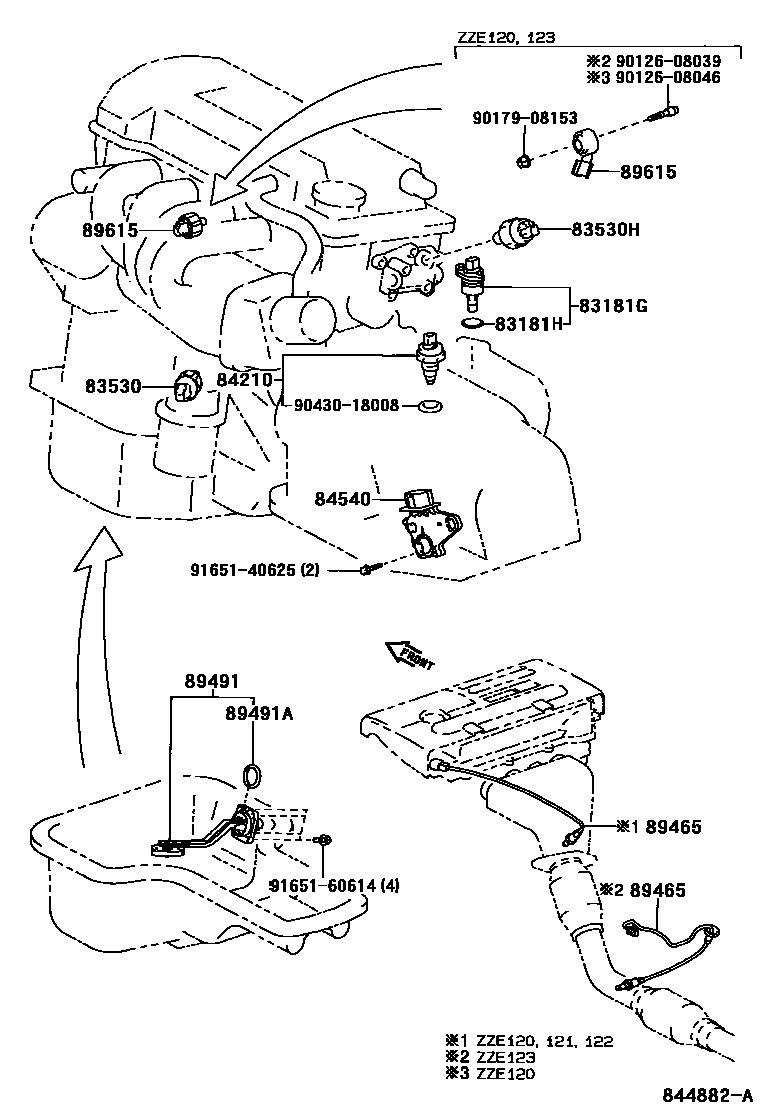

83181GSENSOR, SPEEDOMETER

main83181-12020iZZE120,121;ZZE122..ARL;ZZE122..MTM..SA200208-200408

83181HRING, O (FOR SPEEDOMETER SENSOR)

main96711-24030iZZE120,121;ZZE122..ARL;ZZE122..MTM..SA200208-200408

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-28020iZZE12#200208-200408

DENSO

main83530-60020iZZE12#200208-200408

YAZAKI

83530HSWITCH ASSY, OIL PRESSURE

main83530-20030iZZE123200408-200707

84210SWITCH ASSY, BACK-UP LAMP

main84210-12040iZZE12#..MTM200208-200408

84540SWITCH ASSY, NEUTRAL START

main84540-32110iZZE121,122..ATM200208-200406

main84540-48010iZZE121,122..ATM200408-200707

89465SENSOR, OXYGEN

main89465-02090iZZE123200408-200707

main89465-02120iZZE120200408-200707

main89465-02130iZZE121,122200208-200408

89491SENSOR, ENGINE OIL LEVEL

main89491-12020iZZE123200408-200707

89491AGASKET, ENGINE OIL LEVEL SENSOR

main89493-60010iZZE123200210-200408

89615SENSOR, KNOCK CONTROL

main89615-02010iZZE120200408-200707

main89615-12120iZZE121,122200208-200408

main89615-20090iZZE123200408-200707

9012608039

main90126-08039

9012608046

main90126-08046

9017908153

main90179-08153

9043018008

main90430-18008

9165140625

main91651-40625

9165160614

main91651-60614

16 parts on this diagram · 8 diagrams in section
