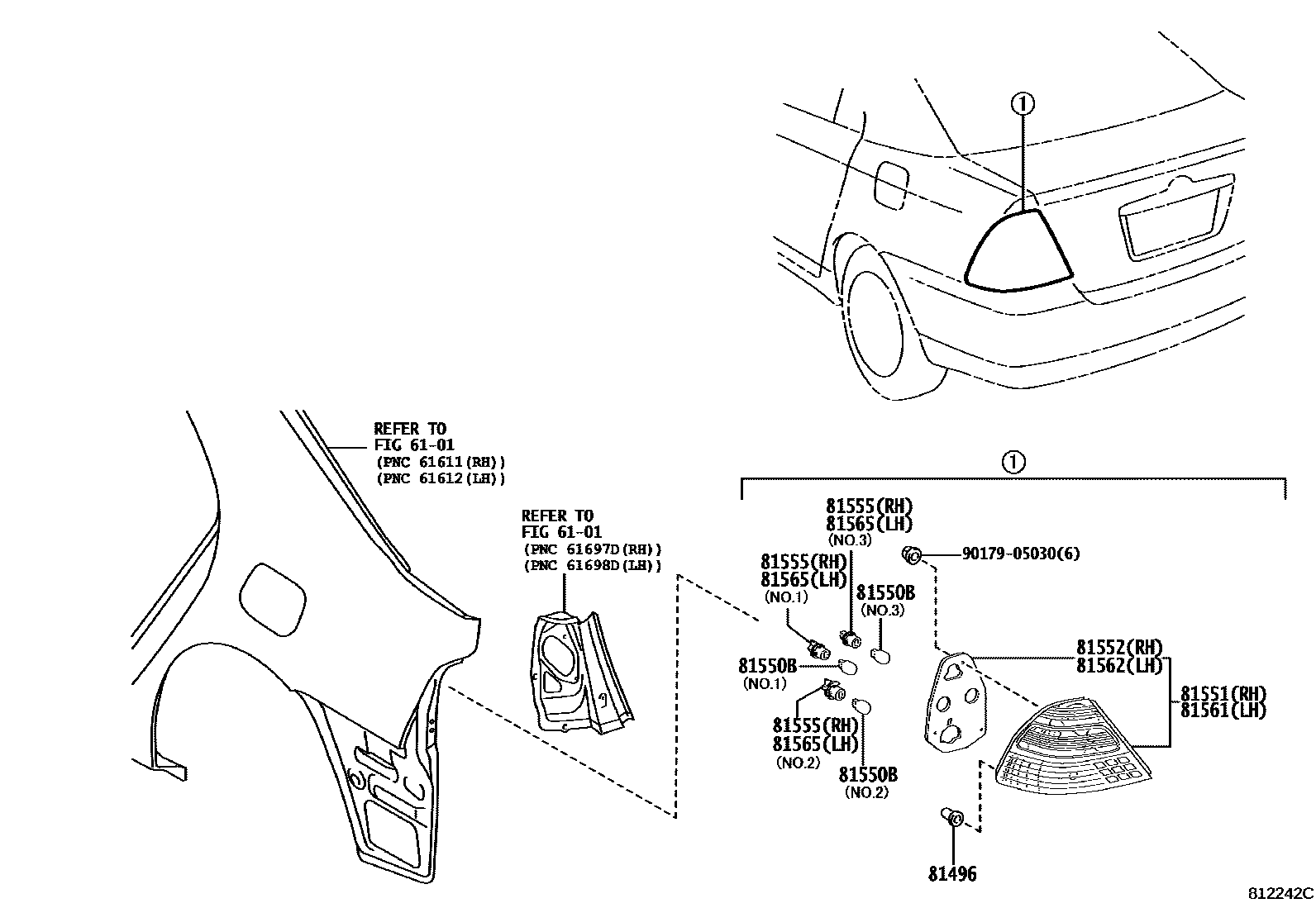

REAR COMBINATION LAMP
6101SIDE MEMBER
81496GUIDE, REAR COMBINATION LAMP
81550LAMP ASSY, REAR COMBINATION, RH
81550BBULB(FOR REAR COMBINATION LAMP)
12V 21W,NO.3
12V 21/5W,NO.2
12V 21W,AMBER,NO.1
12V 21W,NO.2
12V 21/5W,NO.3
12V 21W,AMBER,NO.1
12V 21W,NO.1
12V 21/5W,NO.2
81551LENS, REAR COMBINATION LAMP, RH
81552GASKET, REAR COMBINATION LAMP LENS, RH
81555SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH
NO.2
NO.1
NO.3
81561LENS, REAR COMBINATION LAMP, LH
81562GASKET, REAR COMBINATION LAMP LENS, LH
81565SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH
NO.2
NO.1
NO.3
9017905030
main90179-05030
11 parts on this diagram · 4 diagrams in section
