MUDGUARD & SPOILER

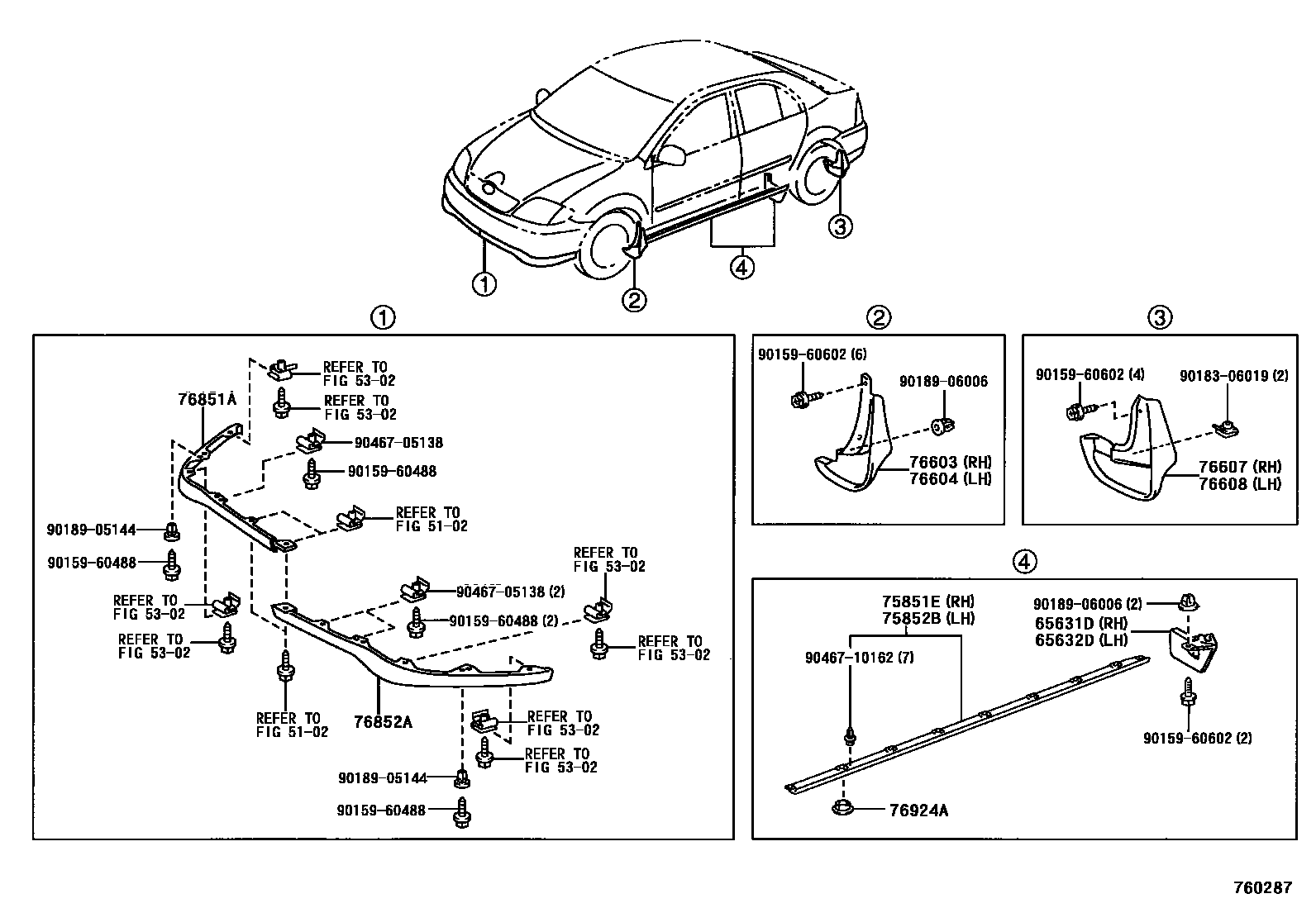

Parts diagram
5102SUSPENSION CROSSMEMBER & UNDER COVER
→ Go to FIG 51-02
5302HOOD & FRONT FENDER
→ Go to FIG 53-02
65631DPLATE, REAR WHEEL HOUSE, FRONT RH
main65631-02020i200408-200707
65632DPLATE, REAR WHEEL HOUSE, FRONT LH
main65632-02020i200208-200408
75851EMOULDING, BODY ROCKER PANEL, RH
main75851-02060i200208-200408
75852BMOULDING, BODY ROCKER PANEL, LH
main75852-02060i200408-200707
76603MUDGUARD SUB-ASSY, FRONT FENDER, RH
main76621-02130i200308-200408
main76621-12210i200208-200308
76604MUDGUARD SUB-ASSY, FRONT FENDER, LH
main76622-02110i200308-200408
main76622-12210i200208-200308
76607MUDGUARD SUB-ASSY, QUARTER PANEL, REAR RH
main76625-02140i200408-200707
NO PAINT REQ.
main76625-02150i200308-200408
NO PAINT REQ.
main76625-12490i200208-200308
PAINT REQ.
main76625-13130i200210-200308
NO PAINT REQ.
76608MUDGUARD SUB-ASSY, QUARTER PANEL, REAR LH
main76626-02140i200408-200707
NO PAINT REQ.
main76626-02150i200408-200707
NO PAINT REQ.
main76626-12490i200208-200308
PAINT REQ.
main76626-13130i200210-200308
NO PAINT REQ.
76851ACOVER, FRONT SPOILER, RH
main76851-02070i200208-200308
main76851-02090i200408-200707
main76851-12160i200408-200707
76852ACOVER, FRONT SPOILER, LH
main76852-02060i200208-200308
main76852-02080i200408-200707
main76852-12120i200408-200707
76924ARETAINER, SIDE MUDGUARD, NO.2
main76924-52021×16i200208-200408
9015960488
main90159-60488
9015960602
main90159-60602
9018306019
main90183-06019
9018905144
main90189-05144
9018906006
main90189-06006
9046705138
main90467-05138
9046710162
main90467-10162

20 parts on this diagram · 3 diagrams in section
