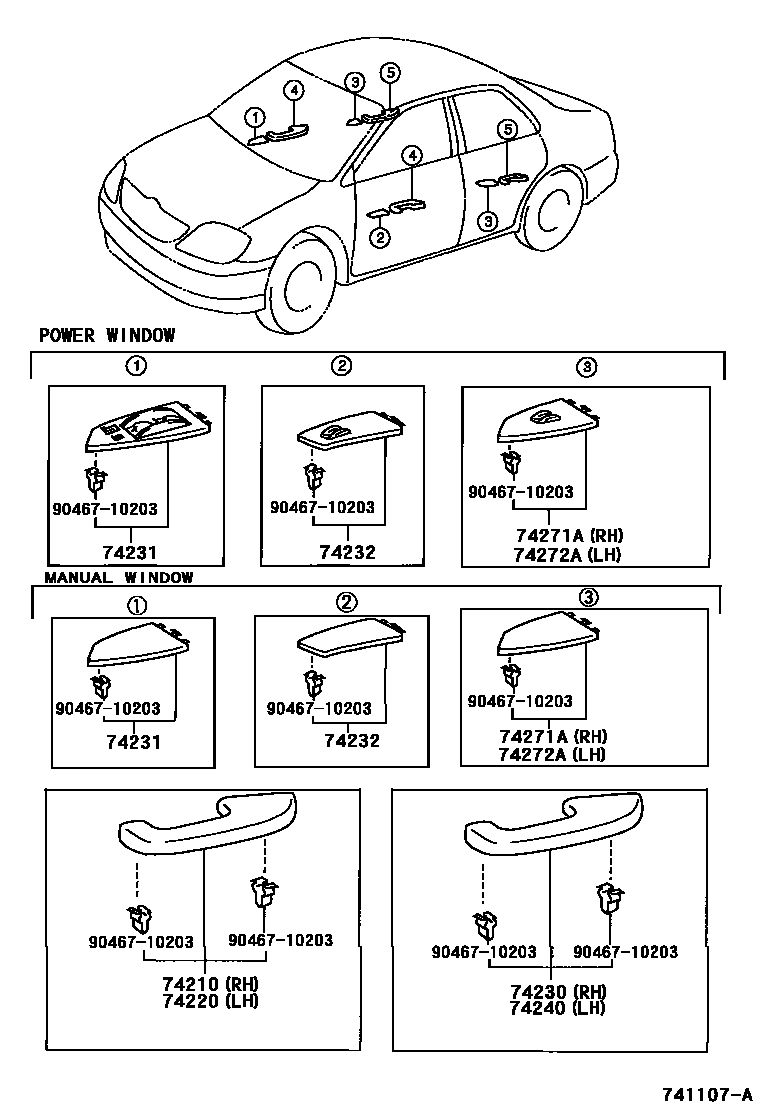

ARMREST & VISOR

0001 1ARMREST 0002 1VISOR & ASSIST GRIP

74210ARMREST ASSY, FRONT, RH

main74210-02160-A0iZZE121,123..STD;ZZE122..4D..ARL;ZZE122..MTM..SA200303-200408

IVORY,TRIM0#

main74210-02160-B0iZZE122..SA;ZZE122..5D;ZZE120,121,123200303-200408

DK.GRAY,TRIM1#

main74210-02160-B1iZZE120,121,122..4D200408-200707

MD.GRAY,TRIM1#

main74210-12250-A0iZZE121,122,123..MTM200208-200303

IVORY,TRIM0#

main74210-12250-B1iZZE12#200208-200303

DK.GRAY,TRIM1#

74220ARMREST ASSY, FRONT, LH

main74220-02130-A0iZZE121,123..STD;ZZE122..4D..ARL;ZZE122..MTM..SA200303-200408

IVORY,TRIM0#

main74220-02130-B0iZZE122..SA;ZZE122..5D;ZZE120,121,123200303-200408

DK.GRAY,TRIM1#

main74220-02130-B1iZZE120,121,122..4D200408-200707

MD.GRAY,TRIM1#

main74220-12190-A0iZZE121,122,123..MTM200208-200303

IVORY,TRIM0#

main74220-12190-B1iZZE12#200208-200303

DK.GRAY,TRIM1#

74230ARMREST ASSY, REAR, RH

main74210-02160-A0iZZE121,123..STD;ZZE122..4D..ARL;ZZE122..MTM..SA200303-200408

IVORY,TRIM0#

main74210-02160-B0iZZE122..SA;ZZE122..5D;ZZE120,121,123200303-200408

DK.GRAY,TRIM1#

main74210-02160-B1iZZE120,121,122..4D200408-200707

MD.GRAY,TRIM1#

main74210-12250-A0iZZE121,122,123..MTM200208-200303

IVORY,TRIM0#

main74210-12250-B1iZZE12#200208-200303

DK.GRAY,TRIM1#

74231PANEL, FRONT ARMREST BASE, UPPER RH

main74231-12480-A1iZZE122..4D..ARL200303-200408

IVORY,TRIM0#

main74231-12480-B1iZZE122..5D;ZZE120,121..4D;ZZE122..MTM..SA200208-200408

DK.GRAY,TRIM1#

main74231-12480-B2iZZE120,121,122..4D..(GLE,STD)200408-200707

MD.GRAY,TRIM1#

main74231-12550-E0iZZE120,121..5D200210-200408

SILVER,TRIM1#

main74231-12560-A0iZZE122..4D..ARL200303-200408

W(POWER WINDOW = FRONT & REAR),IVORY,TRIM0#

main74231-12560-B0iZZE122..5D200303-200408

W(POWER WINDOW = FRONT & REAR),DK.GRAY,TRIM1#

main74231-12570-E0iZZE121..5D200210-200408

W(POWER WINDOW = FRONT ONLY),SILVER,TRIM1#

main74231-12580-A0iZZE121,122..4D..MTM..SA200208-200408

IVORY,TRIM0#

main74231-12590-A0iZZE122..4D..ARL200303-200408

W(POWER WINDOW = FRONT ONLY),IVORY,TRIM0#

main74231-12590-B0iZZE122..5D;ZZE122..ATM..SA;ZZE120,121..4D..STD200208-200408

W(POWER WINDOW = FRONT ONLY),DK.GRAY,TRIM1#

main74231-12590-B1iZZE120,121,122..GLS200408-200707

MD.GRAY,TRIM1#

main74231-12600-E0iZZE123..ARL200303-200408

SILVER,TRIM1#

main74231-12700iZZE120,121..RS200408-200707

METALLIC PANEL

main74231-12710iZZE120..RT200408-200707

METALLIC PANEL

main74231-12720iZZE121,122..GSX200408-200707

WOOD GRAIN(BLACK)

main74231-12730iZZE122..SA..STD;ZZE121,123..RX,STD200408-200707

METALLIC PANEL

main74231-12740-B0iZZE122..5D..ARL200408-200506

W(POWER WINDOW),DK.GRAY,TRIM1#

74232PANEL, FRONT ARMREST BASE, UPPER LH

main74232-12340-A0iZZE122..4D..ARL200303-200408

W(POWER WINDOW),IVORY,TRIM0#

main74232-12340-B1iZZE122..5D;ZZE122..ATM..SA;ZZE120,121..4D..STD200208-200408

W(POWER WINDOW),DK.GRAY,TRIM1#

main74232-12340-B2iZZE120,121,122..GLS200408-200707

MD.GRAY,TRIM1#

main74232-12350-A0iZZE121,122..4D..MTM..SA200208-200408

IVORY,TRIM0#

main74232-12360-E0iZZE123..ARL200303-200408

SILVER,TRIM1#

main74232-12390-A1iZZE122..4D..ARL200303-200408

IVORY,TRIM0#

main74232-12390-B1iZZE122..5D..ARL200408-200506

DK.GRAY,TRIM1#

main74232-12390-B2iZZE120,121,122..4D..(GLE,STD)200408-200707

MD.GRAY,TRIM1#

main74232-12440-E0iZZE120,121..5D200210-200408

SILVER,TRIM1#

main74232-12530iZZE122..SA..STD;ZZE120,121,123..5D..(RS,RX,STD)200408-200707

METALLIC PANEL

main74232-12540iZZE120..RT200408-200707

METALLIC PANEL

main74232-12550iZZE121,122..GSX200408-200707

WOOD GRAIN(BLACK)

74240ARMREST ASSY, REAR, LH

main74220-02130-A0iZZE121,123..STD;ZZE122..4D..ARL;ZZE122..MTM..SA200303-200408

IVORY,TRIM0#

main74220-02130-B0iZZE122..SA;ZZE122..5D;ZZE120,121,123200303-200408

DK.GRAY,TRIM1#

main74220-02130-B1iZZE120,121,122..4D200408-200707

MD.GRAY,TRIM1#

main74220-12190-A0iZZE121,122,123..MTM200208-200303

IVORY,TRIM0#

main74220-12190-B1iZZE12#200208-200303

DK.GRAY,TRIM1#

74271APANEL, REAR DOOR ARMREST BASE, UPPER RH

main74271-12020-A1iZZE122..4D..ARL200303-200408

W(POWER WINDOW),IVORY,TRIM0#

main74271-12020-B1iZZE122..5D200303-200408

W(POWER WINDOW),DK.GRAY,TRIM1#

main74271-12030-A0iZZE121,122..4D..MTM..SA200208-200408

IVORY,TRIM0#

main74271-12040-E0iZZE121,123..5D..SA200210-200408

W(POWER WINDOW),SILVER,TRIM1#

main74271-12050-A1iZZE122..4D..ARL200303-200408

IVORY,TRIM0#

main74271-12050-B1iZZE122..5D;ZZE120,121,122..4D..SA200208-200408

DK.GRAY,TRIM1#

main74271-12050-B2iZZE120,121,122..4D..(GLE,GLS,STD)200408-200707

MD.GRAY,TRIM1#

main74271-12080-E0iZZE120,121..5D200210-200408

SILVER,TRIM1#

main74271-12180iZZE120,121..RS,RT200408-200707

METALLIC PANEL

main74271-12190iZZE121,122..GSX200408-200707

WOOD GRAIN(BLACK)

main74271-12200iZZE122..SA..STD;ZZE121,123..RX,STD200408-200707

METALLIC PANEL

74272APANEL, REAR DOOR ARMREST BASE, UPPER LH

main74272-12020-A1iZZE122..4D..ARL200303-200408

W(POWER WINDOW),IVORY,TRIM0#

main74272-12020-B1iZZE122..5D200303-200408

W(POWER WINDOW),DK.GRAY,TRIM1#

main74272-12030-A0iZZE121,122..4D..MTM..SA200208-200408

IVORY,TRIM0#

main74272-12040-E0iZZE121,123..5D..SA200210-200408

W(POWER WINDOW),SILVER,TRIM1#

main74272-12050-A1iZZE122..4D..ARL200303-200408

IVORY,TRIM0#

main74272-12050-B1iZZE122..5D;ZZE120,121,122..4D..SA200208-200408

DK.GRAY,TRIM1#

main74272-12050-B2iZZE120,121,122..4D..(GLE,GLS,STD)200408-200707

MD.GRAY,TRIM1#

main74272-12080-E0iZZE120,121..5D200210-200408

SILVER,TRIM1#

main74272-12180iZZE120,121..RS,RT200408-200707

METALLIC PANEL

main74272-12190iZZE121,122..GSX200408-200707

WOOD GRAIN(BLACK)

main74272-12200iZZE122..SA..STD;ZZE121,123..RX,STD200408-200707

METALLIC PANEL

9046710203

main90467-10203

9 parts on this diagram · 2 diagrams in section
