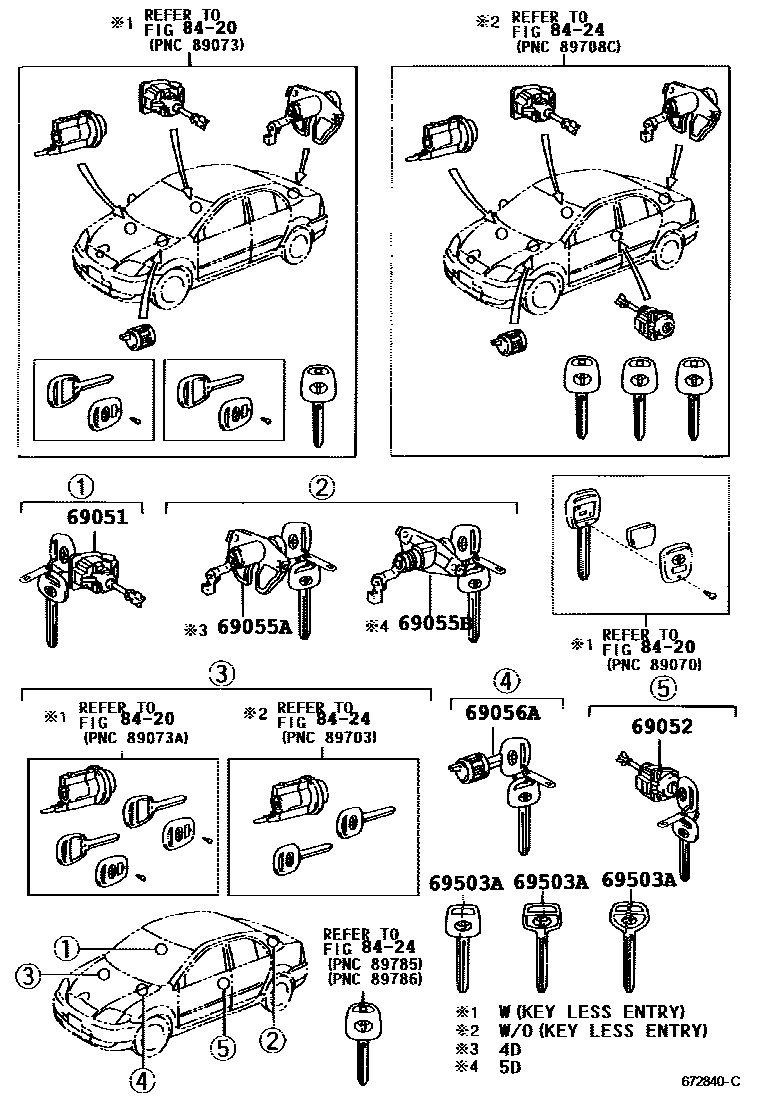

LOCK CYLINDER SET

69051CYLINDER & KEY SET, DOOR LOCK, RH

main69051-12630iZZE12#200208-200707

69052CYLINDER & KEY SET, DOOR LOCK, LH

main69052-12610iZZE122..ARL200303-200506

69055ACYLINDER & KEY SET, LUGGAGE COMPARTMENT LOCK

main69055-13290iZZE120,121,123..5D..SA200210-200408

main69055-1A410iZZE120,121,122..4D200208-200707

69055BCYLINDER & KEY SET, BACK DOOR LOCK

main69055-13290iZZE12#..5D200210-200707

69056ACYLINDER & KEY SET, GLOVE COMPARTMENT LOCK

main69056-44010iZZE122..SA;ZZE122..5D;ZZE120,121,123200208-200707

sub69056-60160

69503AKEY, BLANK

main90999-00186iZZE120,121,122200209-200408

MASTER KEY

main90999-00188iZZE120,121,122200209-200408

SUB KEY

main90999-00199iZZE120,121,122200209-200707

MASTER KEY,W(*68)

8420

8424

8 parts on this diagram · 1 diagram in section
