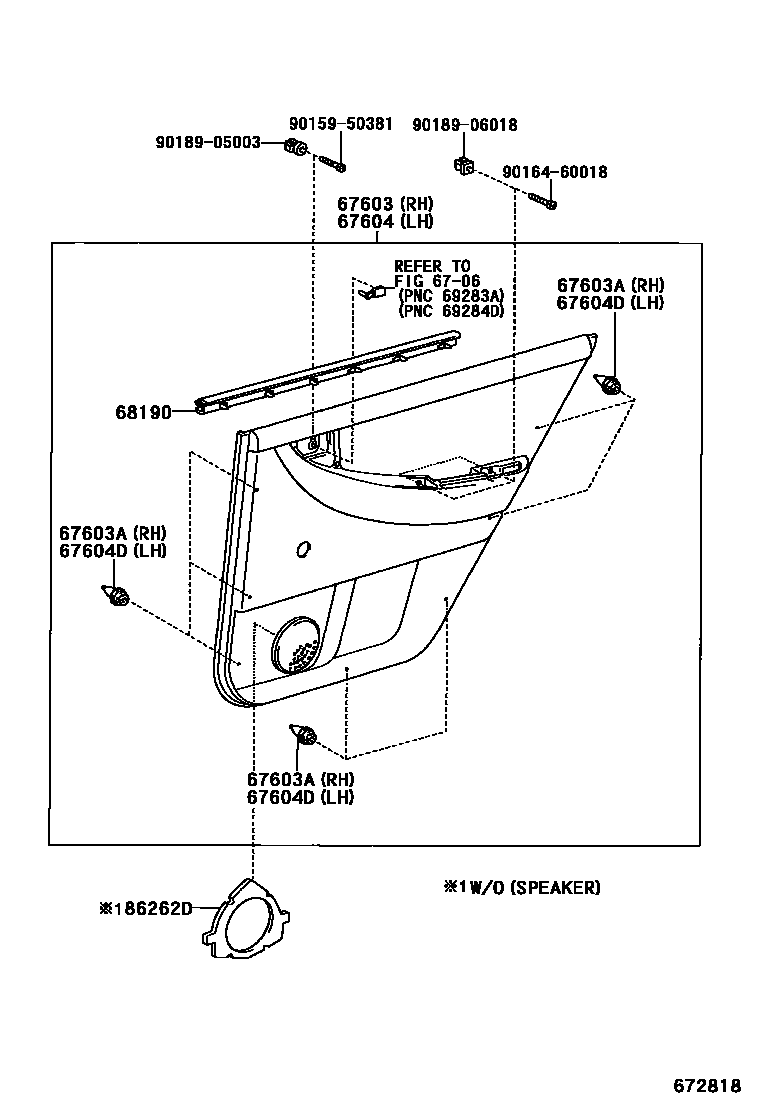

REAR DOOR PANEL & GLASS

0001 1 0002 1

6706REAR DOOR LOCK & HANDLE

→ Go to FIG 67-06

67603BOARD SUB-ASSY, REAR DOOR TRIM, RH

main67630-02740-B0iZZE120,121..5D200210-200408

TRIM = TYPE D-*104,DK.GRAY,TRIM1#

main67630-02A00-A0iZZE122..4D..ARL200303-200408

DOOR TRIM=TYPE B-*104 & W(POWER WINDOW),IVORY,TRIM0#

main67630-02A00-B0iZZE122..5D200303-200408

DOOR TRIM=TYPE B-*104 & W(POWER WINDOW),DARK GRAY,TRIM1#

main67630-02A10-B0iZZE122..5D200303-200408

DOOR TRIM=TYPE C-*104 & W(POWER WINDOW),DARK GRAY,TRIM1#

main67630-02A20-A0iZZE123..ARL200303-200408

DOOR TRIM=TYPE A-*104,IVORY,TRIM0#

main67630-02A20-B0iZZE123..ARL200303-200408

DOOR TRIM=TYPE A-*104,DARK GRAY,TRIM1#

main67630-02C50-B0iZZE122..5D..ARL200408-200506

DOOR TRIM=TYPE F-*104,GRAY,TRIM1#

main67630-02C70-B0iZZE122..4D..STD200408-200506

DOOR TRIM=TYPE D-*104,GRAY,TRIM1#

main67630-02C70-B1iZZE122..5D..ARL200408-200506

DOOR TRIM=TYPE D-*104,GRAY,TRIM1#

main67630-02C80-B0iZZE120,121..RS,RT200408-200707

DOOR TRIM=TYPE F-*104,GRAY,TRIM1#

main67630-02C90-B0iZZE120..STD200408-200707

DOOR TRIM=TYPE D-*104,GRAY,TRIM1#

main67630-0Z010-B1iZZE120,121..4D..STD200208-200408

TRIM = TYPE B-*104,DK.GRAY,TRIM1#

main67630-0Z020-B1iZZE120,121,122..4D..SA200208-200408

TRIM = TYPE C-*104,DK.GRAY,TRIM1#

main67630-0Z020-B7iZZE120,121,122..GLE,GLS200408-200707

DOOR TRIM=TYPE E-*104 & W(POWER WINDOW),GRAY,TRIM1#

main67630-0Z040-A3iZZE121,122,123..MTM..SA200208-200408

TRIM = TYPE A-*104,IVORY,TRIM0#

main67630-0Z040-B3iZZE121,122,123..MTM..SA200208-200408

TRIM = TYPE A-*104,DK.GRAY,TRIM1#

main67630-0Z040-B4iZZE121,122..GSX200408-200707

DOOR TRIM=TYPE C-*104 & W(POWER WINDOW),GRAY,TRIM1#

main67630-0Z050-B1iZZE122..5D200303-200408

DOOR TRIM=TYPE C-*104,DARK GRAY,TRIM1#

main67630-0Z070-A0iZZE122..4D..ARL200303-200408

DOOR TRIM=TYPE B-*104,IVORY,TRIM0#

main67630-0Z070-B0iZZE122..5D200303-200408

DOOR TRIM=TYPE B-*104,DK.GRAY,TRIM10

main67630-0Z070-B2iZZE122..5D200303-200408

TRIM = TYPE C-*104,DARK GRAY,TRIM10

67603ARETAINER(FOR REAR DOOR TRIM BOARD)

main67771-12050×7iZZE12#200208-200408

67604BOARD SUB-ASSY, REAR DOOR TRIM, LH

main67640-02740-B0iZZE120,121..5D200210-200408

TRIM = TYPE D-*104,DK.GRAY,TRIM1#

main67640-02A00-A0iZZE122..4D..ARL200303-200408

DOOR TRIM=TYPE B-*104 & W(POWER WINDOW),IVORY,TRIM0#

main67640-02A00-B0iZZE122..5D200303-200408

DOOR TRIM=TYPE B-*104 & W(POWER WINDOW),DARK GRAY,TRIM1#

main67640-02A10-B0iZZE122..5D200303-200408

DOOR TRIM=TYPE C-*104 & W(POWER WINDOW),DARK GRAY,TRIM1#

main67640-02A20-A0iZZE123..ARL200303-200408

DOOR TRIM=TYPE A-*104,IVORY,TRIM0#

main67640-02A20-B0iZZE123..ARL200303-200408

DOOR TRIM=TYPE A-*104,DARK GRAY,TRIM1#

main67640-02C50-B0iZZE122..5D..ARL200408-200506

DOOR TRIM=TYPE F-*104,GRAY,TRIM1#

main67640-02C70-B0iZZE122..4D..STD200408-200506

DOOR TRIM=TYPE D-*104,GRAY,TRIM1#

main67640-02C70-B1iZZE122..5D..ARL200408-200506

DOOR TRIM=TYPE D-*104,GRAY,TRIM1#

main67640-02C80-B0iZZE120,121..RS,RT200408-200707

DOOR TRIM=TYPE F-*104,GRAY,TRIM1#

main67640-02C90-B0iZZE120..STD200408-200707

DOOR TRIM=TYPE D-*104,GRAY,TRIM1#

main67640-0Z010-B1iZZE120,121..4D..STD200208-200408

TRIM = TYPE B-*104,DK.GRAY,TRIM1#

main67640-0Z020-B1iZZE120,121,122..4D..SA200208-200408

TRIM = TYPE C-*104,DK.GRAY,TRIM1#

main67640-0Z020-B6iZZE120,121,122..4D..SA200208-200408

DARK GRAY,TRIM10

main67640-0Z020-B7iZZE120,121,122..GLE,GLS200408-200707

DOOR TRIM=TYPE E-*104 & W(POWER WINDOW),GRAY,TRIM1#

main67640-0Z040-A3iZZE121,122,123..MTM..SA200208-200408

TRIM = TYPE A-*104,IVORY,TRIM0#

main67640-0Z040-B3iZZE121,122,123..SA..(RX,STD)200408-200707

DOOR TRIM=TYPE C-*104 & W(POWER WINDOW),DK.GRAY,TRIM1#

main67640-0Z040-B4iZZE121,122..GSX200408-200707

DOOR TRIM=TYPE C-*104 & W(POWER WINDOW),GRAY,TRIM1#

main67640-0Z050-A0iZZE122..5D200303-200408

DOOR TRIM=TYPE C-*104,IVORY,TRIM0#

main67640-0Z050-B0iZZE122..5D200303-200408

DOOR TRIM=TYPE C-*104,DK.GRAY,TRIM10

main67640-0Z050-B1iZZE122..5D200303-200408

DOOR TRIM=TYPE C-*104,DARK GRAY,TRIM1#

main67640-0Z070-A0iZZE122..4D..ARL200303-200408

DOOR TRIM=TYPE B-*104,IVORY,TRIM0#

main67640-0Z070-A1iZZE122..5D200303-200408

DOOR TRIM=TYPE B-*104,IVORY,TRIM01

main67640-0Z070-B0iZZE122..5D200303-200408

DOOR TRIM=TYPE B-*104,DK.GRAY,TRIM10

main67640-0Z070-B1iZZE122..5D200303-200408

DOOR TRIM=TYPE B-*104,DK.GRAY,TRIM1#

main67640-0Z070-B2iZZE122..5D200303-200408

TRIM = TYPE C-*104,DARK GRAY,TRIM10

67604DRETAINER, REAR DOOR TRIM, LH

main67771-12050×7iZZE12#200408-200707

68190WEATHERSTRIP ASSY, REAR DOOR GLASS, INNER

main68173-12270iZZE12#200208-200303

RH

main68173-12290iZZE12#200408-200707

RH

main68174-12130iZZE12#200208-200303

LH

main68174-12150iZZE12#200408-200707

LH

86262DCOVER, REAR DOOR SPEAKER

main86262-12010×2iZZE120;ZZE121..4D..STD200208-200408

9015950381

main90159-50381

9016460018

main90164-60018

9018905003

main90189-05003

9018906018

main90189-06018

11 parts on this diagram · 2 diagrams in section
