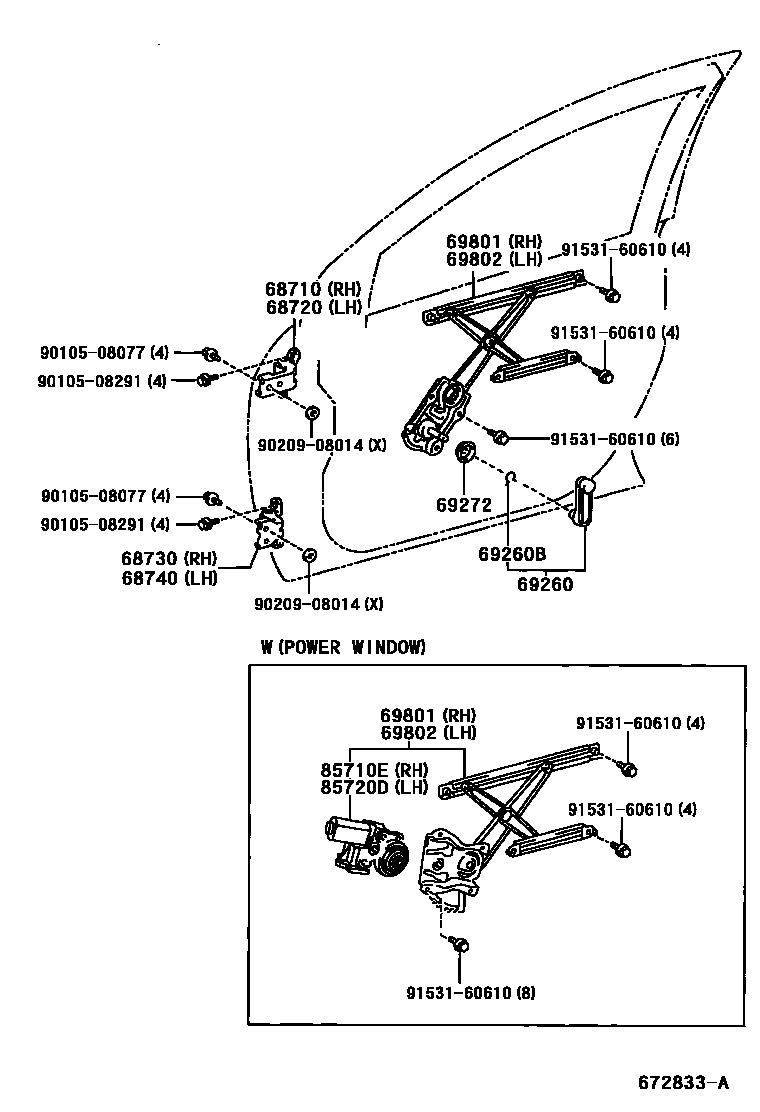

FRONT DOOR WINDOW REGULATOR & HINGE

68710HINGE ASSY, FRONT DOOR, UPPER RH

main68710-02070iZZE12#200701-200707

main68710-0D030iZZE12#200208-200408

PLANT NO.=Z35,Z44

main68710-12150iZZE12#200208-200408

*227

main68710-12151iZZE12#200611-200701

*227

68720HINGE ASSY, FRONT DOOR, UPPER LH

main68720-02070iZZE12#200701-200707

main68720-0D030iZZE12#200208-200408

PLANT NO.=Z35,Z44

main68720-12150iZZE12#200208-200408

*227

main68720-12151iZZE12#200611-200701

*227

68730HINGE ASSY, FRONT DOOR, LOWER RH

main68730-52010iZZE12#200208-200408

SAVP PART

68740HINGE ASSY, FRONT DOOR, LOWER LH

main68740-52010iZZE12#200408-200707

69260HANDLE ASSY, FRONT DOOR WINDOW REGULATOR

main69260-02030-B0×2iZZE120,121..RS,RT200408-200707

DK.GRAY,TRIM1#

main69260-02030-B1×2iZZE120,121,122..4D..SA..(GLE,GLS,STD)200408-200707

MD.GRAY,TRIM1#

main69260-02040-A0×2iZZE122..ARL200303-200408

IVORY,TRIM0#

main69260-02040-B0×2iZZE122..5D..ARL200408-200506

DK.GRAY,TRIM1#

main69260-02040-B1×2iZZE122..4D..STD200408-200506

MD.GRAY,TRIM1#

69260BRING, SHAFT SNAP(FOR FRONT DOOR WINDOW REGULATOR HANDLE)

main90080-52152×2iZZE120,121,122200208-200408

69272PLATE, FRONT DOOR REGULATOR INSIDE HANDLE

main69268-02050×2iZZE120,121;ZZE122..ARL;ZZE122..MTM..SA200208-200408

69801REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH

main69810-02190iZZE123;ZZE122..SA;ZZE122..5D..ARL;ZZE120,121..GLS,GSX,RS,RX200408-200707

W(POWER WINDOW)

main69810-02200iZZE122..ARL;ZZE120,121..GLE,RT,STD200408-200612

main69810-02201iZZE120,121..GLE,RT,STD200701-200707

69802REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH

main69820-02190iZZE120,121,122..GLS,RS200408-200707

W(POWER WINDOW)

main69820-02200iZZE122..ARL;ZZE120,121..GLE,RT,STD200408-200612

main69820-02201iZZE120,121..GLE,RT,STD200701-200707

main69820-02240iZZE122..5D..ARL;ZZE122..SA..(GSX,STD);ZZE121,123..GSX,RX,STD200408-200707

W(POWER WINDOW=W/JAM PROTECTION)

85710EMOTOR ASSY, POWER WINDOW REGULATOR, RH

main85710-02110iZZE123;ZZE122..SA;ZZE122..5D..ARL;ZZE120,121..GLS,GSX,RS,RX200408-200707

85720DMOTOR ASSY, POWER WINDOW REGULATOR, LH

main85720-02110iZZE12#..STD200208-200408

main85720-02150iZZE122..5D..ARL;ZZE122..SA..(GSX,STD);ZZE121,123..GSX,RX,STD200408-200707

9010508077

main90105-08077

9010508291

main90105-08291

9020908014

main90209-08014

9153160610

main91531-60610

15 parts on this diagram · 1 diagram in section
