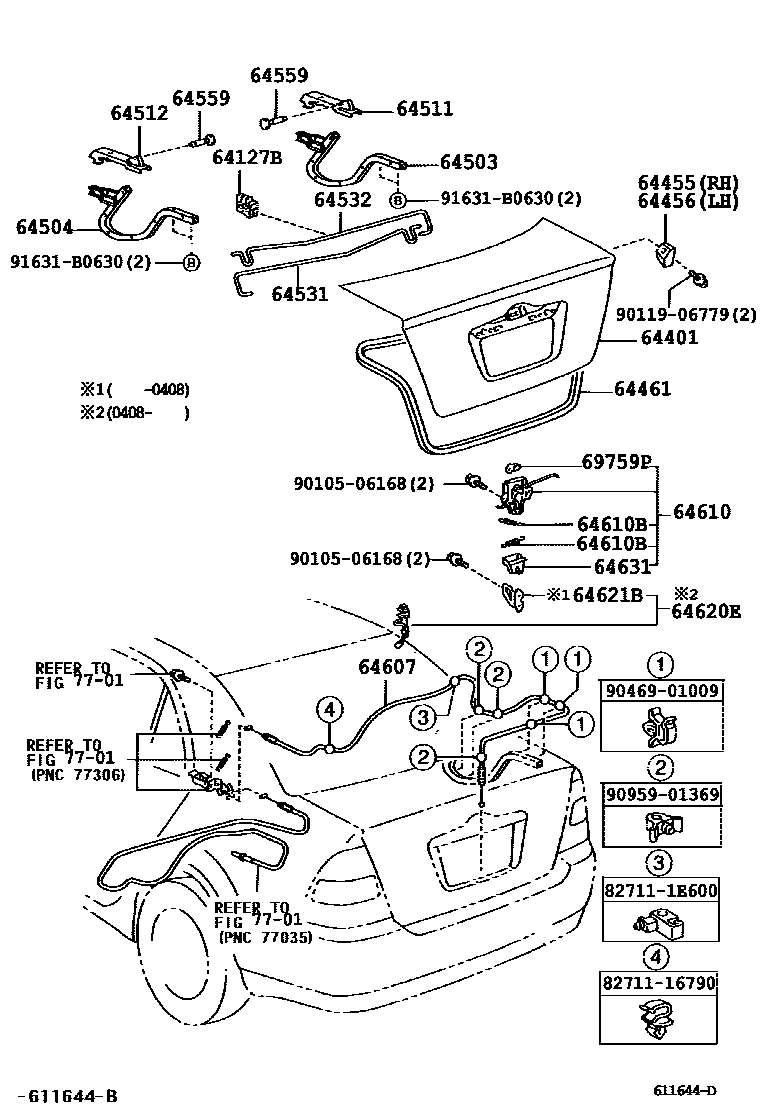

LUGGAGE COMPARTMENT DOOR & LOCK
64127BSUPPORT, LUGGAGE COMPARTMENT DOOR TORSION BAR
64401PANEL SUB-ASSY, LUGGAGE COMPARTMENT DOOR
SAVP PART
64455CUSHION, LUGGAGE COMPARTMENT DOOR SIDE, RH
64456CUSHION, LUGGAGE COMPARTMENT DOOR SIDE, LH
64461WEATHERSTRIP, LUGGAGE COMPARTMENT DOOR
64503ARM SUB-ASSY, LUGGAGE COMPARTMENT DOOR HINGE, RH
64504ARM SUB-ASSY, LUGGAGE COMPARTMENT DOOR HINGE, LH
64511SUPPORT, LUGGAGE COMPARTMENT DOOR HINGE, RH
64512SUPPORT, LUGGAGE COMPARTMENT DOOR HINGE, LH
64531BAR, LUGGAGE DOOR HINGE TORSION, RH
64532BAR, LUGGAGE DOOR HINGE TORSION, LH
64559PIN, LUGGAGE DOOR HINGE
64607CABLE SUB-ASSY, LUGGAGE DOOR LOCK CONTROL
64610LOCK ASSY, LUGGAGE COMPARTMENT DOOR
64610BSPRING, TENSION(FOR LOCK)
WD=0.55,CW=17.25
WD=0.55,CW=16.75
64620ESTRIKER ASSY, LUGGAGE COMPARTMENT DOOR
64621BSTRIKER, LUGGAGE COMPARTMENT DOOR LOCK
W(LUGGAGE ROOM LAMP)
64631PROTECTOR, LUGGAGE DOOR LOCK
69759PSNAP, DOOR LOCK CONTROL LINK
7701FUEL TANK & TUBE
8271116790WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-16790
827111E600WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-1E600
9010506168
main90105-06168
9011906779
main90119-06779
9046901009
main90469-01009
9095901369
main90959-01369
91631B0630
main91631-B0630
27 parts on this diagram · 1 diagram in section
