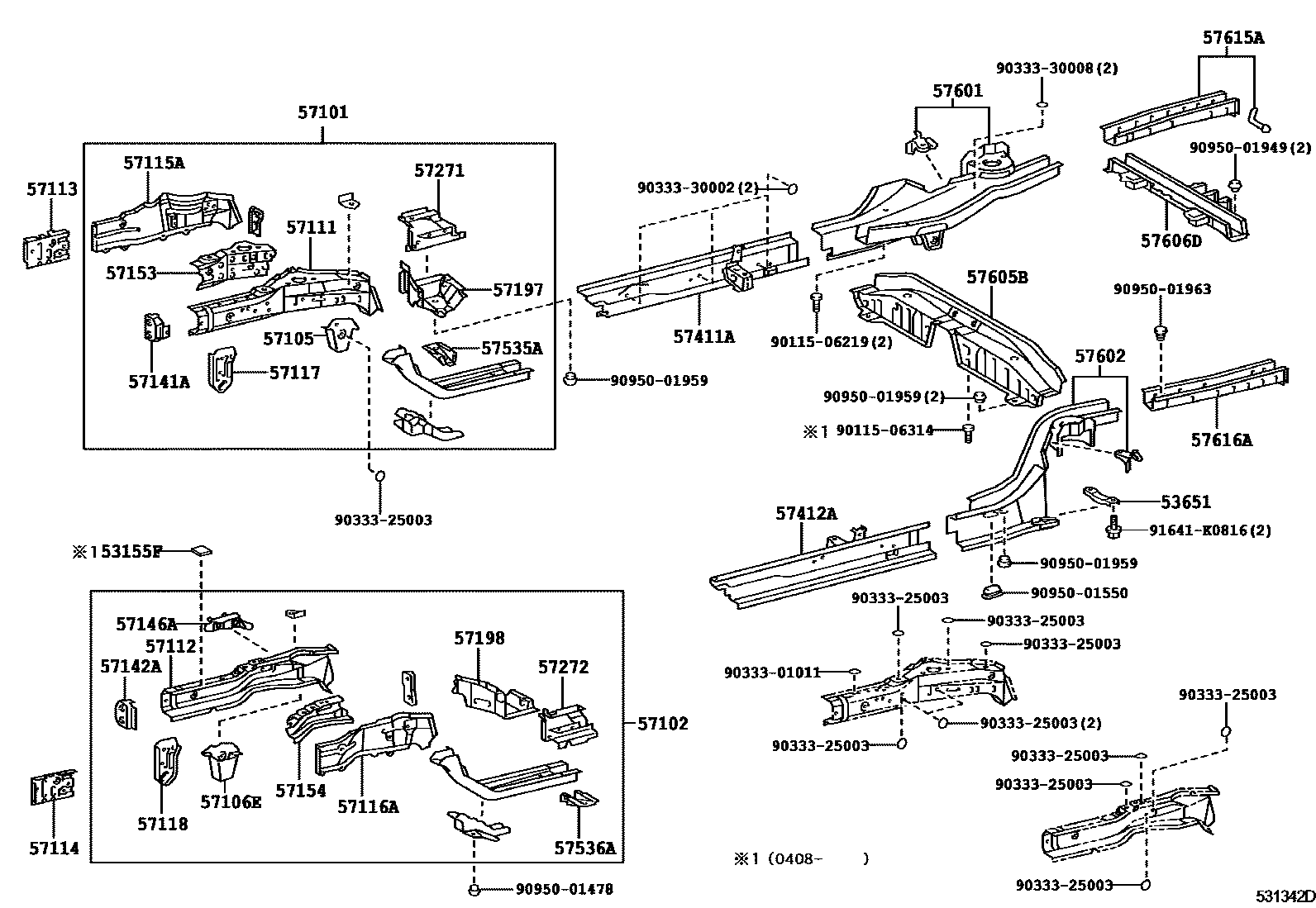

FLOOR SIDE MEMBER

53155FSEAL, FRONT SIDE MEMBER

main53155-13020iZZE12#200403-200408

53651BRACE, REAR FLOOR SIDE MEMBER

main53651-32010×2iZZE12#200408-200707

57101MEMBER SUB-ASSY, FRONT SIDE, RH

main57101-12A40iZZE12#..SA200408-200707

main57101-12A60iZZE122,123..ARL200408-200510

main57101-1A240iZZE122,123..ARL200303-200408

main57101-1A300iZZE12#..SA200208-200408

57102MEMBER SUB-ASSY, FRONT SIDE, LH

main57102-12A40iZZE122,123..ARL200408-200510

main57102-12A50iZZE12#..SA200408-200707

main57102-1A270iZZE122,123..ARL200303-200408

SAVP PART

main57102-1A280iZZE12#..SA200208-200408

57105BRACKET SUB-ASSY, FRONT SUSPENSION MEMBER MOUNTING, FRONT RH

main57105-12140iZZE12#200208-200408

57106EBRACKET SUB-ASSY, FRONT SUSPENSION MEMBER MOUNTING, FRONT LH

main57106-12130iZZE12#..SA200208-200408

57111MEMBER, FRONT SIDE, RH

main57111-12250iZZE12#200208-200408

57112MEMBER, FRONT SIDE, LH

main57112-12170iZZE12#200208-200408

SAVP PART

57113EXTENSION, FRONT SIDE MEMBER, RH

main57113-12190iZZE12#200208-200408

SAVP PART

57114EXTENSION, FRONT SIDE MEMBER, LH

main57114-02060iZZE12#200403-200408

main57114-12160iZZE122,123..ARL200208-200403

SAVP PART

57115APLATE, FRONT SIDE MEMBER, OUTER RH

main57115-12080iZZE12#200208-200408

SAVP PART

57116APLATE, FRONT SIDE MEMBER, OUTER LH

main57116-12080iZZE12#200408-200707

57117PLATE SUB-ASSY, FRONT SIDE MEMBER, FRONT RH

main57117-12130iZZE12#200208-200408

SAVP PART

57118PLATE SUB-ASSY, FRONT SIDE MEMBER, FRONT LH

main57118-12130iZZE12#200208-200408

SAVP PART

57141ASUPPORT, FRONT BUMPER ARM, RH

main57141-12050iZZE12#200208-200408

main57141-12080iZZE12#200408-200707

57142ASUPPORT, FRONT BUMPER ARM, LH

main57142-12060iZZE12#200208-200408

main57142-12090iZZE12#200408-200707

57146AREINFORCEMENT, FRONT SIDE MEMBER, REAR LH

main57146-12020iZZE12#200208-200408

57153REINFORCEMENT, FRONT SIDE MEMBER, NO.2 RH

main57016-12080iZZE12#200408-200707

57154REINFORCEMENT, FRONT SIDE MEMBER, NO.2 LH

main57017-12060iZZE12#200208-200408

57197BOX, TORQUE, FRONT RH

main57197-12030iZZE12#200208-200408

SAVP PART

57198BOX, TORQUE, FRONT LH

main57198-12030iZZE12#200208-200408

SAVP PART

57271EXTENSION, STEERING GEAR BOX SUPPORT MEMBER, RH

main57271-12090iZZE12#200208-200408

SAVP PART

57272EXTENSION, STEERING GEAR BOX SUPORT MEMBER, LH

main57272-12090iZZE12#200208-200408

SAVP PART

57411AMEMBER, FLOOR SIDE, INNER RH

main57401-12570iZZE12#200208-200408

SAVP PART

57412AMEMBER, FLOOR SIDE, INNER LH

main57402-12570iZZE12#200208-200408

57535ABRACE, FRONT FLOOR, RH

main57535-13010iZZE12#..SA200208-200408

57536ABRACE, FRONT FLOOR, LH

main57536-13010iZZE12#..SA200208-200408

57601MEMBER SUB-ASSY, REAR FLOOR SIDE, RH

main57601-13910iZZE12#..5D..SA200408-200506

main57601-13911iZZE122,123..5D..ARL200303-200408

main57601-1A909iZZE120,121,122..4D..SA200208-200408

main57601-1A910iZZE122..4D..ARL200303-200408

57602MEMBER SUB-ASSY, REAR FLOOR SIDE, LH

main57602-13908iZZE12#..5D..SA200408-200506

main57602-13909iZZE122,123..5D..ARL200303-200408

main57602-1A909iZZE120,121,122..4D..SA200208-200408

main57602-1A910iZZE122..4D..ARL200303-200408

57605BMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.1

main57605-12230iZZE12#200208-200408

57606DMEMBER SUB-ASSY, REAR ABSORBER MOUNTING

main57606-02060iZZE120,121,122..4D200408-200707

main57606-13180iZZE12#..5D200210-200408

57615AMEMBER, REAR FLOOR SIDE, REAR RH

main57615-12908iZZE120,121,122..4D200208-200408

SAVP PART

main57615-13912iZZE12#..5D200210-200408

57616AMEMBER, REAR FLOOR SIDE, REAR LH

main57616-12911iZZE120,121,122..4D200208-200408

SAVP PART

main57616-13909iZZE12#..5D200408-200707

9011506219

main90115-06219

9011506314

main90115-06314

9033301011

main90333-01011

9033325003

main90333-25003

9033330002

main90333-30002

9033330008

main90333-30008

9095001478

main90950-01478

9095001550

main90950-01550

9095001949

main90950-01949

9095001959

main90950-01959

9095001963

main90950-01963

91641K0816

main91641-K0816

45 parts on this diagram · 1 diagram in section
