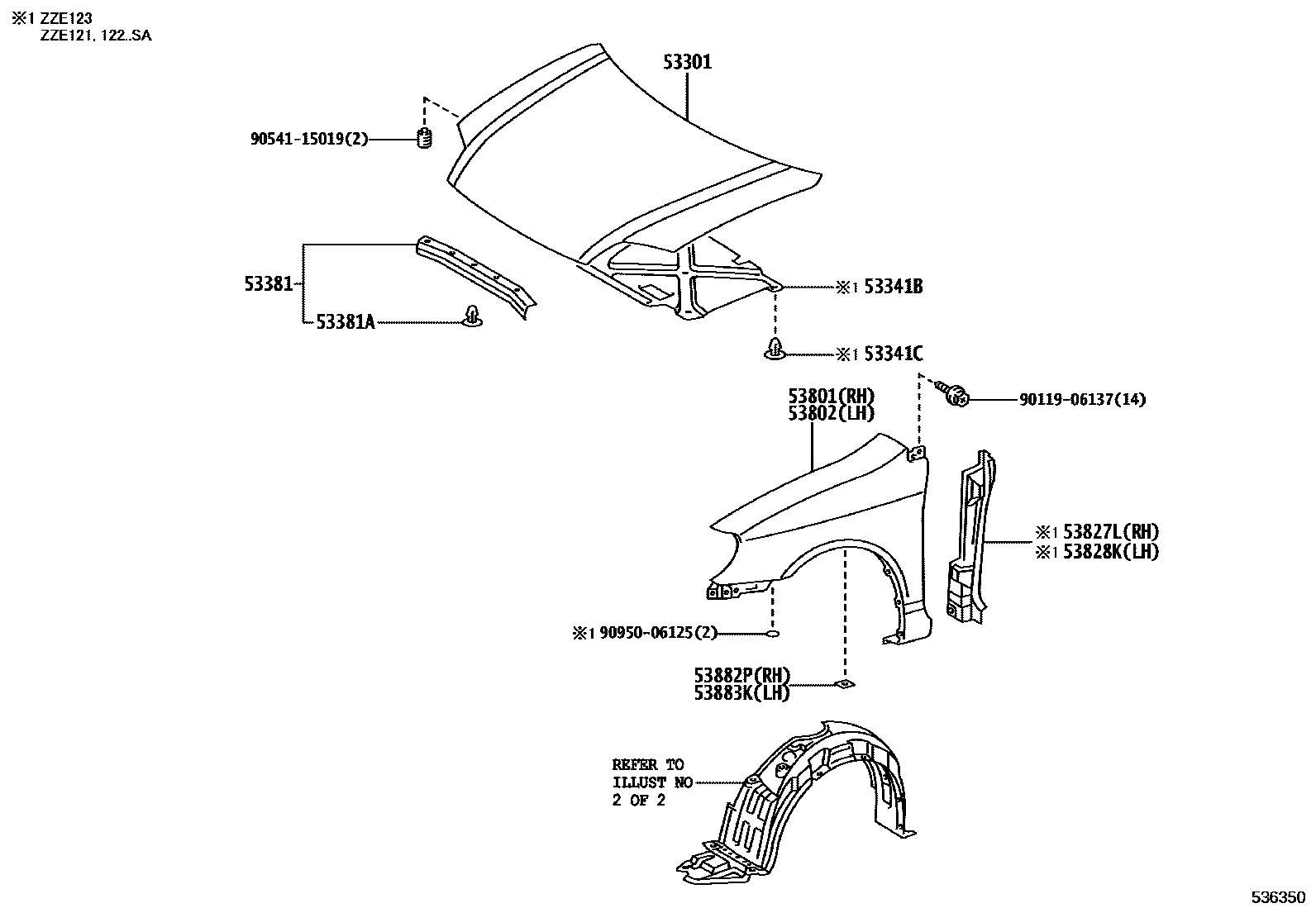

HOOD & FRONT FENDER

0001 1 0002 1FENDER LINER

53301HOOD SUB-ASSY

main53301-02150iZZE12#..5D200408-200707

main53301-1A040iZZE12#200208-200408

53341BINSULATOR, HOOD

main53341-02100iZZE123;ZZE121,122..SA200208-200408

main53341-02120iZZE121,123..5D;ZZE122..SA..STD200408-200707

53341CCLIP(FOR HOOD INSULATOR)

main90467-08124×10iZZE123;ZZE121,122..SA200208-200408

53381SEAL, HOOD TO RADIATOR SUPPORT

main53381-02080iZZE12#200208-200408

main53381-02110iZZE12#..5D200408-200707

53381ACLIP(FOR HOOD TO RADIATOR SUPPORT SEAL)

main90467-08011×8iZZE12#200208-200408

53801FENDER SUB-ASSY, FRONT RH

main53811-02170iZZE12#..5D200408-200707

main53811-1H190iZZE12#200208-200408

SAVP PART

53802FENDER SUB-ASSY, FRONT LH

main53812-02170iZZE12#..5D200408-200707

main53812-1H070iZZE12#200208-200408

SAVP PART

53827LPROTECTOR, FRONT FENDER SIDE PANEL, RH

main53827-02050iZZE123;ZZE121,122..SA200208-200408

53828KPROTECTOR, FRONT FENDER SIDE PANEL, LH

main53828-02050iZZE123;ZZE121,122..SA200208-200408

53882PSEAL, FRONT FENDER, RH

main53882-16030×3iZZE12#200208-200408

53883KSEAL, FRONT FENDER, LH

main53882-16030×3iZZE12#200208-200408

9011906137

main90119-06137

9054115019

main90541-15019

9095006125

main90950-06125

14 parts on this diagram · 2 diagrams in section
