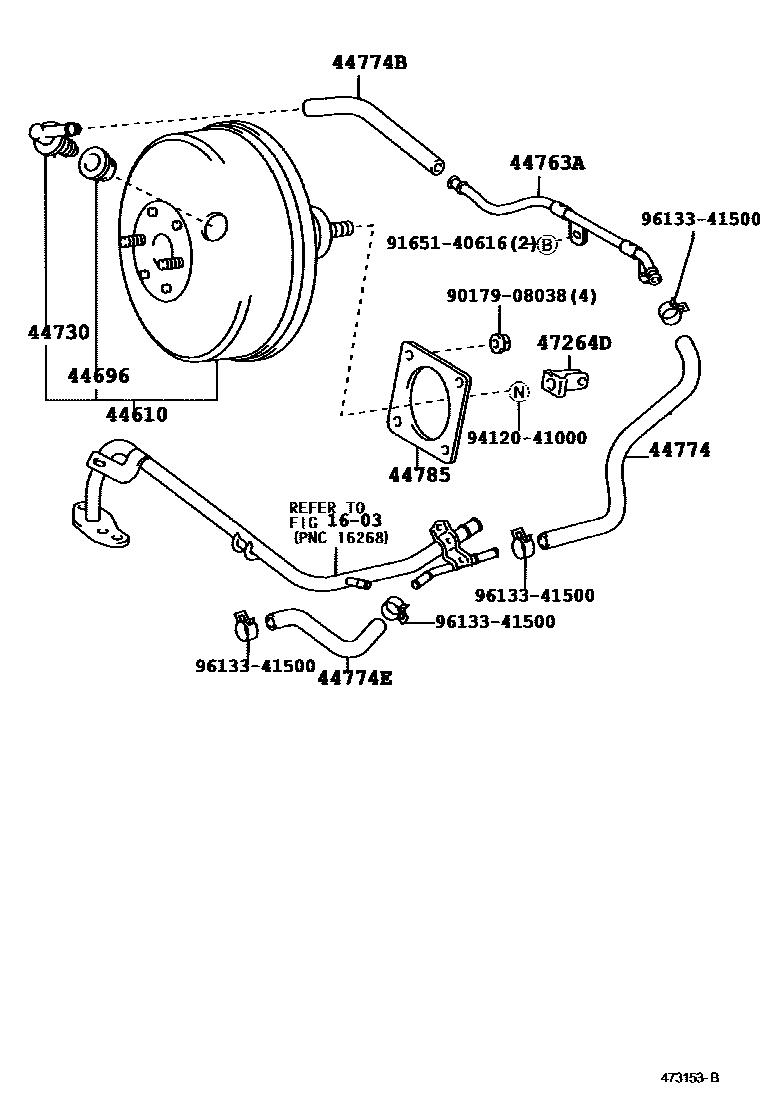

BRAKE BOOSTER & VACUUM TUBE

0001 1TYPE A 0003 1TYPE B 0004 1

1603RADIATOR & WATER OUTLET

→ Go to FIG 16-03

44610BOOSTER ASSY, BRAKE

main44610-02220iZZE120,121,122..SA..STD200208-200408

TYPE B:REFER TO ILLUSTRATION

main44610-02240iZZE120,121..GLE,RT,STD200408-200504

main44610-1E490iZZE123200408-200707

main44610-1E620iZZE120,121;ZZE122..ARL;ZZE122..MTM..SA200208-200408

TYPE A:REFER TO ILLUSTRATION

44696GROMMET, CHECK VALVE

main90480-24439iZZE123200408-200707

44730VALVE ASSY, VACUUM CHECK(FOR BRAKE)

main44730-02030iZZE120,121,122..SA..STD200208-200408

TYPE B:REFER TO ILLUSTRATION

main44730-12070iZZE122..ARL;ZZE120,121,123;ZZE122..MTM..SA200208-200408

TYPE A:REFER TO ILLUSTRATION

44763ATUBE, HOSE TO HOSE, NO.1

main44763-12340iZZE12#200208-200408

44774HOSE, UNION TO CONNECTOR TUBE

main44774-12420iZZE120,121,122200208-200408

main44774-12430iZZE123200210-200408

44774BHOSE, UNION TO CONNECTOR TUBE

main44774-12510iZZE120,121,122..SA..STD200208-200408

TYPE B:REFER TO ILLUSTRATION

main95446-09180iZZE122..ARL;ZZE120,121,123;ZZE122..MTM..SA200208-200408

TYPE A:REFER TO ILLUSTRATION

44774EHOSE, UNION TO CONNECTOR TUBE

main44774-12470iZZE120,121200208-200408

main44774-20310iZZE122200408-200707

44785GASKET, BRAKE BOOSTER

main44785-20020iZZE12#200208-200408

47264DCLEVIS, BRAKE MASTER CYLINDER PUSH ROD

main47264-02040iZZE120,121,122..SA..STD200208-200408

TYPE B:REFER TO ILLUSTRATION

main47264-12060iZZE122..ARL;ZZE120,121,123;ZZE122..MTM..SA200405-200408

TYPE A:REFER TO ILLUSTRATION

main47264-63010iZZE122..ARL;ZZE120,121,123;ZZE122..MTM..SA200208-200405

TYPE A:REFER TO ILLUSTRATION

9017908038

main90179-08038

9165140616

main91651-40616

9412041000

main94120-41000

9613341500

main96133-41500
