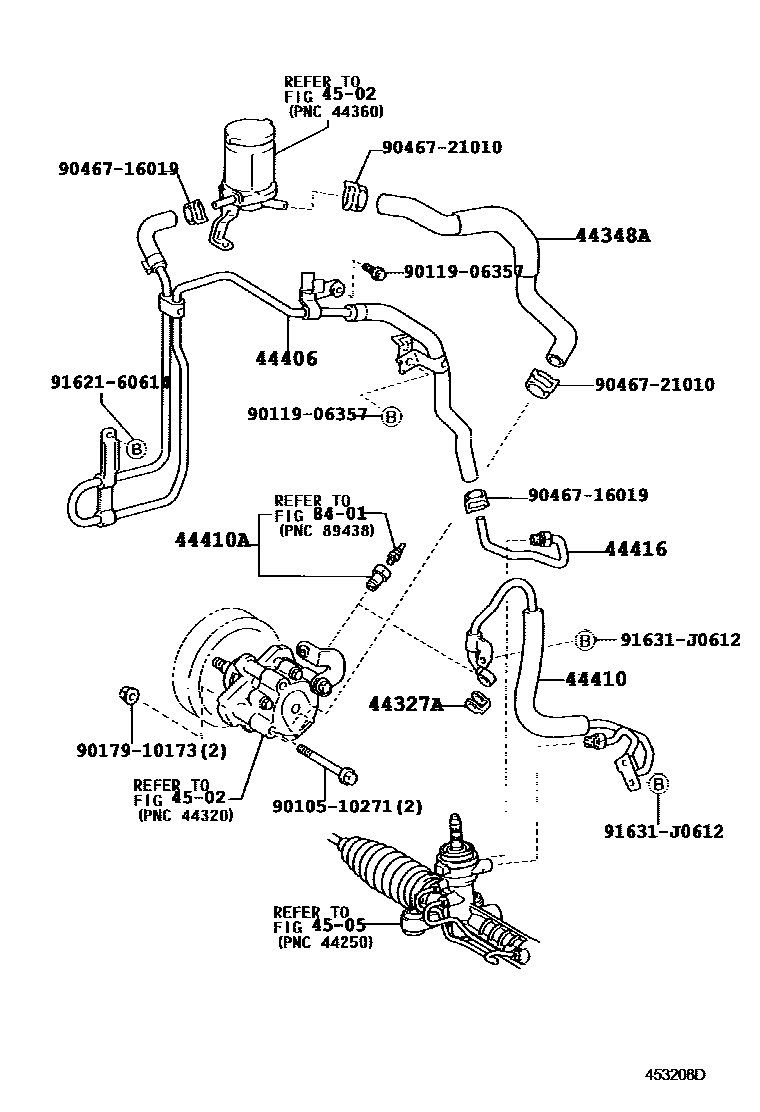

POWER STEERING TUBE

0001 1 0002 1

44327AGASKET, PRESSURE PORT, NO.1

main44327-12010iZZE120,121,122200208-200507

main44327-30030iZZE120,121,122200508-200707

44348AHOSE, OIL RESERVOIR TO PUMP, NO.1

main44348-12091iZZE12#200208-200707

44406TUBE SUB-ASSY, RETURN

main44406-02071iZZE120,121,122200208-200707

main44406-13011iZZE123200210-200707

44410TUBE ASSY, PRESSURE FEED

main44410-02090iZZE120,121,122200208-200707

main44410-13010iZZE123200210-200707

44410ABOLT, UNION(FOR PRESSURE FEED TUBE)

main44338-33090iZZE120,121,122200208-200707

44416TUBE, RETURN(FOR STEERING GEAR OUTLET)

main44416-02040iZZE120,121,122200208-200707

main44416-13010iZZE123200210-200509

main44416-13011iZZE123200510-200707

4502VANE PUMP & RESERVOIR (POWER STEERING)

→ Go to FIG 45-02

4505FRONT STEERING GEAR & LINK

→ Go to FIG 45-05

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9010510271

main90105-10271

9011906357

main90119-06357

9017910173

main90179-10173

9046716019

main90467-16019

9046721010

main90467-21010

9162160614

main91621-60614

91631J0612

main91631-J0612

16 parts on this diagram · 2 diagrams in section
