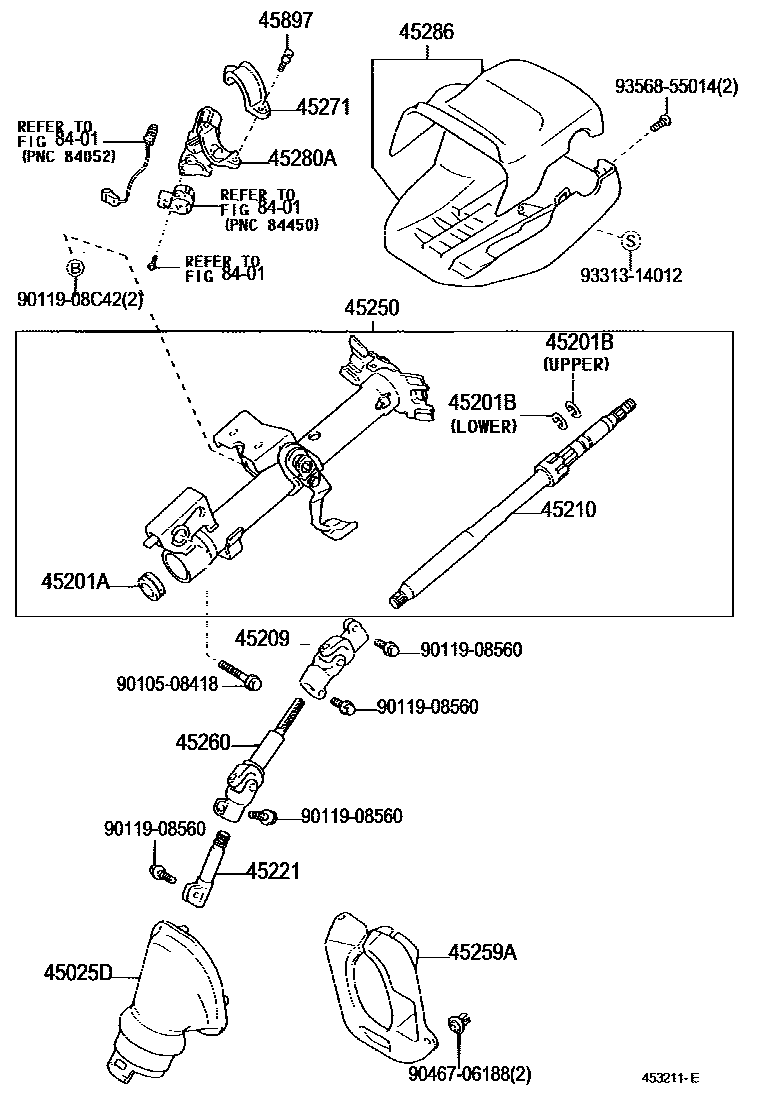

STEERING COLUMN & SHAFT

45025DCOVER SUB-ASSY, STEERING COLUMN HOLE, NO.1

main45025-13020iZZE12#200408-200707

45201ABEARING(FOR STEERING MAIN SHAFT)

main45274-02020iZZE12#..MTM; ZZE121,122..ATM200210-200408

(L)

main45274-42010iZZE120,121,122..4D..MTM..SA; ZZE121,122..ATM200208-200408

(J)

45201BRING, SHAFT SNAP(FOR STEERING MAIN SHAFT)

main90520-17042iZZE120,121,122..4D..MTM..SA; ZZE121,122..ATM;ZZE122..MTM..ARL;ZZE120,121,123..5D200208-200408

T=1.20,LOWER

main90520-17269iZZE120,121,122..4D..MTM..SA; ZZE121,122..ATM;ZZE122..MTM..ARL;ZZE120,121,123..5D200208-200408

T=1.20,UPPER

45209YOKE SUB-ASSY, STEERING SLIDING

main45209-02030iZZE12#200310-200408

main45209-12150iZZE12#200208-200310

45210SHAFT ASSY, STEERING MAIN

main45210-02090iZZE12#200212-200408

(L)

main45210-42020×2iZZE12#..MTM..SA; ZZE121,122..ATM200208-200408

(J)

45221SHAFT, STEERING INTERMEDIATE

main45221-02040iZZE12#200408-200707

main45221-12291iZZE12#200208-200310

45250COLUMN ASSY, STEERING

main45250-02400iZZE12#200408-200707

45259ASHEET, COLUMN HOLE COVER SILENCER

main45259-02060iZZE12#200208-200408

45260SHAFT ASSY, STEERING INTERMEDIATE, NO.2

main45260-02050iZZE12#200310-200408

main45260-12460iZZE12#200208-200310

45271CLAMP, STEERING COLUMN, UPPER

main45271-16020iZZE12#200408-200707

45280ABRACKET ASSY, STEERING COLUMN, UPPER

main45280-02040iZZE121,122..ATM200208-200408

main45280-52020iZZE12#..MTM200408-200707

45286COVER, STEERING COLUMN

main45286-02923iZZE12#200408-200707

45897BOLT, STEERING LOCK SET

main45897-12020×2iZZE12#200408-200707

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9010508418

main90105-08418

9011908560

main90119-08560

9011908C42

main90119-08C42

9046706188

main90467-06188

9331314012

main93313-14012

9356855014

main93568-55014

20 parts on this diagram · 1 diagram in section
