DISC WHEEL & WHEEL CAP

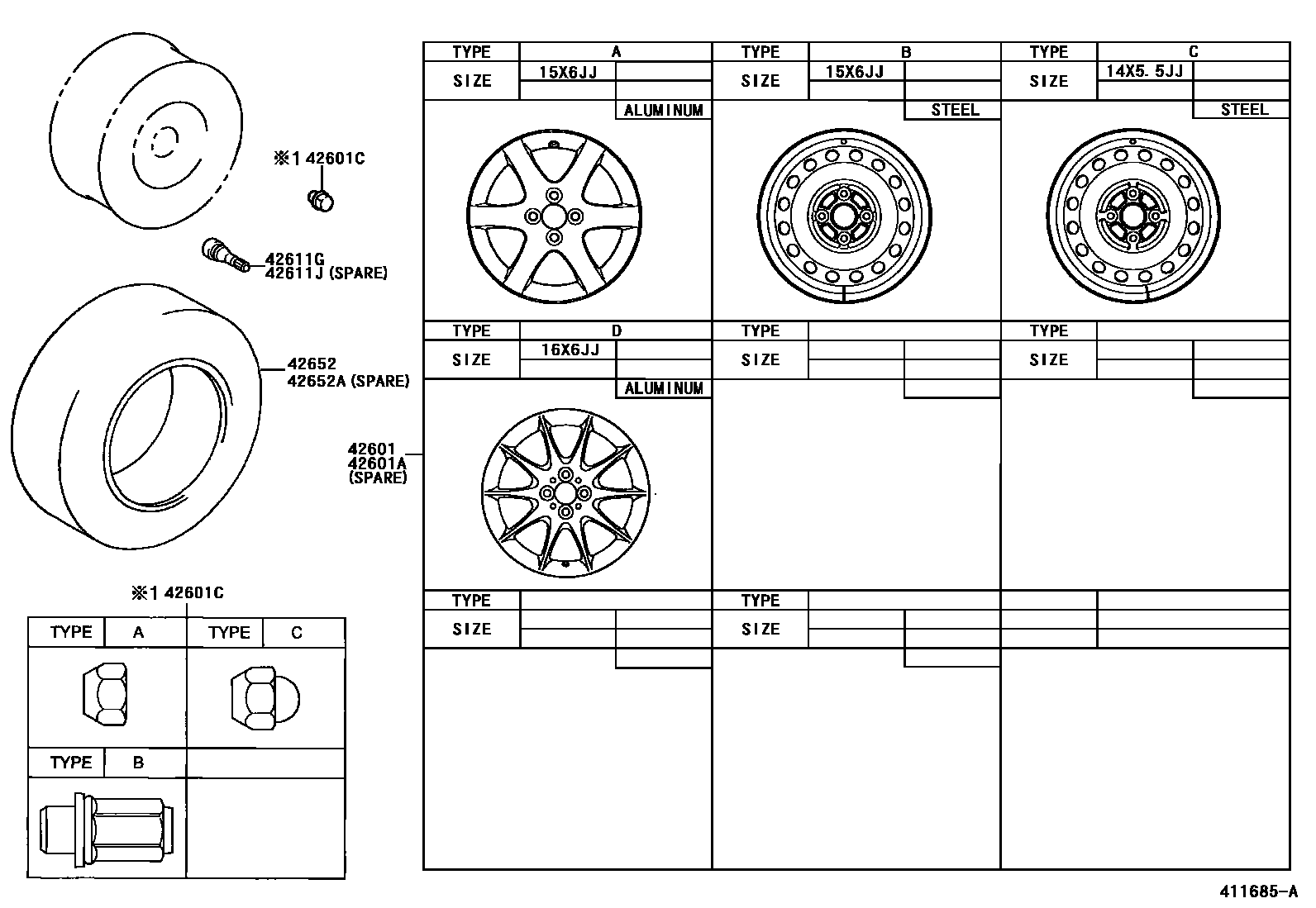

Parts diagram

42601WHEEL, DISC

main42611-02270×4i200208-200408

15X6JJ, #,TYPE B:REFER ILLUST.

main42611-02271×4i200606-200612

15X6JJ, #,TYPE B:REFER ILLUST.

main42611-02530×4i200608-200707

16X6JJ, #,TYPE D:REFER ILLUST.

main42611-02540×4i200408-200608

14X5.5JJ, #,TYPE C:REFER ILLUST.

main42611-02550×4i200408-200608

15X6JJ, #,TYPE A:REFER ILLUST.

42601AWHEEL, DISC (FOR SPARE)

main42611-02270i200612-200707

15X6JJ, #,TYPE B:REFER ILLUST.

main42611-02271i200606-200612

15X6JJ, #,TYPE B:REFER ILLUST.

main42611-02530i200608-200707

16X6JJ, #,TYPE D:REFER ILLUST.

main42611-02540i200408-200608

14X5.5JJ, #,TYPE C:REFER ILLUST.

main42611-02550i200408-200707

15X6JJ, #,TYPE A:REFER ILLUST.

42601CNUT, HUB (FOR AXLE)

main90942-01007×16i200408-200707

TYPE A:REFER TO ILLUSTRATION

main90942-01058×16i200608-200707

TYPE B:REFER ILLUST.

main90942-01082×16i200303-200408

TYPE C:REFER TO ILLUSTRATION

42611GVALVE (FOR TUBELESS TIRE)

main90080-94180×4i200208-200408

42611JVALVE (FOR TUBELESS TIRE SPARE)

main90080-94180i200208-200408

42652TIRE

main42652-02630×4i200210-200404

195/55R16,*B/S

main42652-02631×4i200405-200408

195/55R16,*B/S

main42652-02760×4i200408-200608

195/60R15,*B/S

main42652-02780×4i200408-200707

175/70R14,*B/S

main42652-02820×4i200208-200408

175/70R14,*D/L

main42652-02830×4i200208-200408

195/60R15,*D/L

main42652-20A10×4i200408-200707

195/60R15 *B/S

main42652-2B810×4i200303-200403

195/60R15,*B/S

42652ATIRE (FOR SPARE)

main42652-02630i200210-200404

195/55R16,*B/S

main42652-02631i200405-200408

195/55R16,*B/S

main42652-02760i200408-200707

195/60R15,*B/S

main42652-02780i200208-200408

175/70R14,*B/S

main42652-02820i200208-200408

175/70R14,*D/L

main42652-02830i200408-200707

195/60R15,*D/L

main42652-20A10i200404-200408

195/60R15 *B/S

main42652-2B810i200303-200403

195/60R15,*B/S

7 parts on this diagram · 3 diagrams in section
