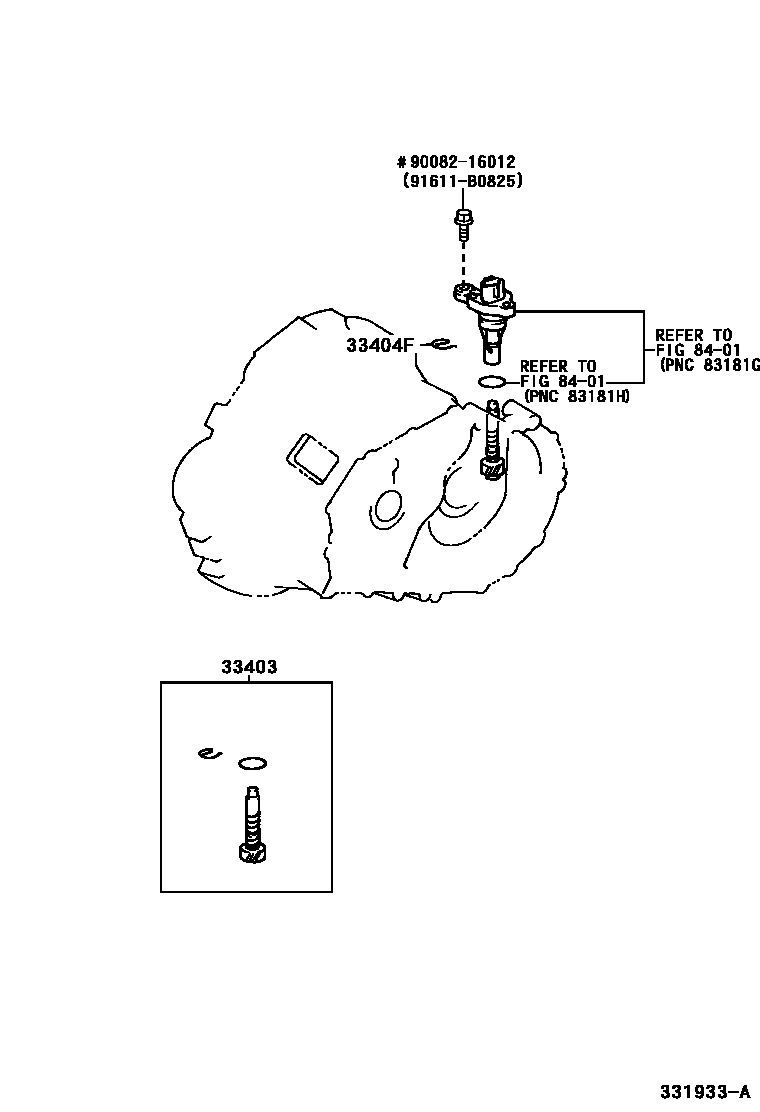

SPEEDOMETER DRIVEN GEAR (MTM)

33403GEAR SUB-ASSY, SPEEDOMETER DRIVEN (MTM)

main33403-19455iZZE120..STD200208-200408

N=30,MARK 30:35

main33403-29395iZZE120..RT;ZZE121,122..MTM200208-200408

N=29,MARK 29:35

33404FCLIP (FOR MTM SPEEDOMETER SHAFT SLEEVE)

main90468-12005iZZE120,121,122..MTM200208-200408

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9008216012

main90082-16012

91611B0825

main91611-B0825

5 parts on this diagram · 1 diagram in section
