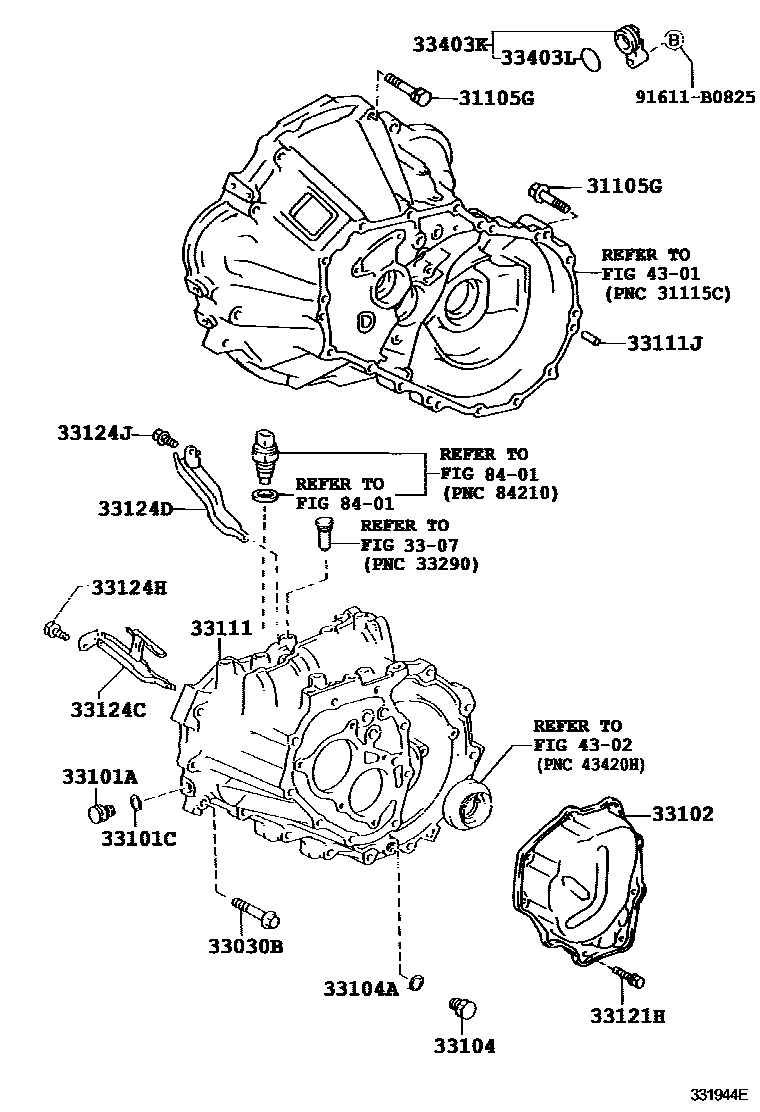

CLUTCH HOUSING & TRANSMISSION CASE (MTM)

0001 1C150 0002 1C50,C52 0003 1C64

31105GBOLT(FOR TRANSAXLE CASE & ENGINE SETTING)

main91619-61255200208-200707

main91642-81055200208-200707

33030BBOLT(FOR TRANSAXLE CASE & TRANSMISSION CASE SETTING)

main90105-08086200208-200607

main90105-08353200208-200707

main90105-08430200407-200707

3307GEAR SHIFT FORK & LEVER SHAFT (MTM)

→ Go to FIG 33-07

33101APLUG(FOR MANUAL TRANSMISSION FILLER)

main90341-18006200208-200506

main90341-18033200506-200707

main90341-18038200210-200707

33101CGASKET(FOR MANUAL TRANSMISSION FILLER PLUG)

main90430-18008200208-200707

33102COVER SUB-ASSY, MANUAL TRANSMISSION CASE

main33102-10023200208-200707

main33102-12021200208-200707

main33102-20050200210-200707

33104PLUG SUB-ASSY, DRAIN(MTM)

main90341-18006200208-200506

main90341-18033200505-200707

33104AGASKET, DRAIN PLUG(MTM)

main90430-18008200208-200707

33111CASE, MANUAL TRANSMISSION

main33111-12230200210-200301

main33111-12231200301-200408

main33111-12232200408-200703

main33111-12250200703-200707

main33111-12280200706-200707

main33111-16053200208-200707

main33111-16063200208-200501

main33111-16064200501-200706

main33111-17100200208-200301

main33111-17101200301-200501

main33111-17102200501-200706

main33111-52110200501-200706

main33111-52140200706-200707

33111JPIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE)

main90250-08054200208-200707

33121HBOLT, W/WASHER(FOR TRANSMISSION CASE COVER)

main90119-08373200208-200707

main90119-08429200505-200707

main90119-08782200603-200707

main91611-60835200208-200603

33124CPIPE, OIL RECEIVER, NO.1(MTM)

main33124-10012200208-200707

main33124-20050200208-200707

33124DPIPE, OIL RECEIVER, NO.2(MTM)

main33124-10021200208-200707

main33124-12021200208-200707

main33124-20060200210-200707

33124HBOLT(FOR OIL RECEIVER PIPE)

main91611-G0820200208-200707

33124JBOLT, W/WASHER

main91611-G0820200208-200707

33403KCOVER SUB-ASSY, SPEEDOMETER DRIVEN HOLE

main33403-35230200208-200707

33403LRING, O

main96711-24030200208-200707

4301FRONT AXLE HOUSING & DIFFERENTIAL

→ Go to FIG 43-01

4302FRONT DRIVE SHAFT

→ Go to FIG 43-02

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

91611B0825

main91611-B0825

21 parts on this diagram · 3 diagrams in section
