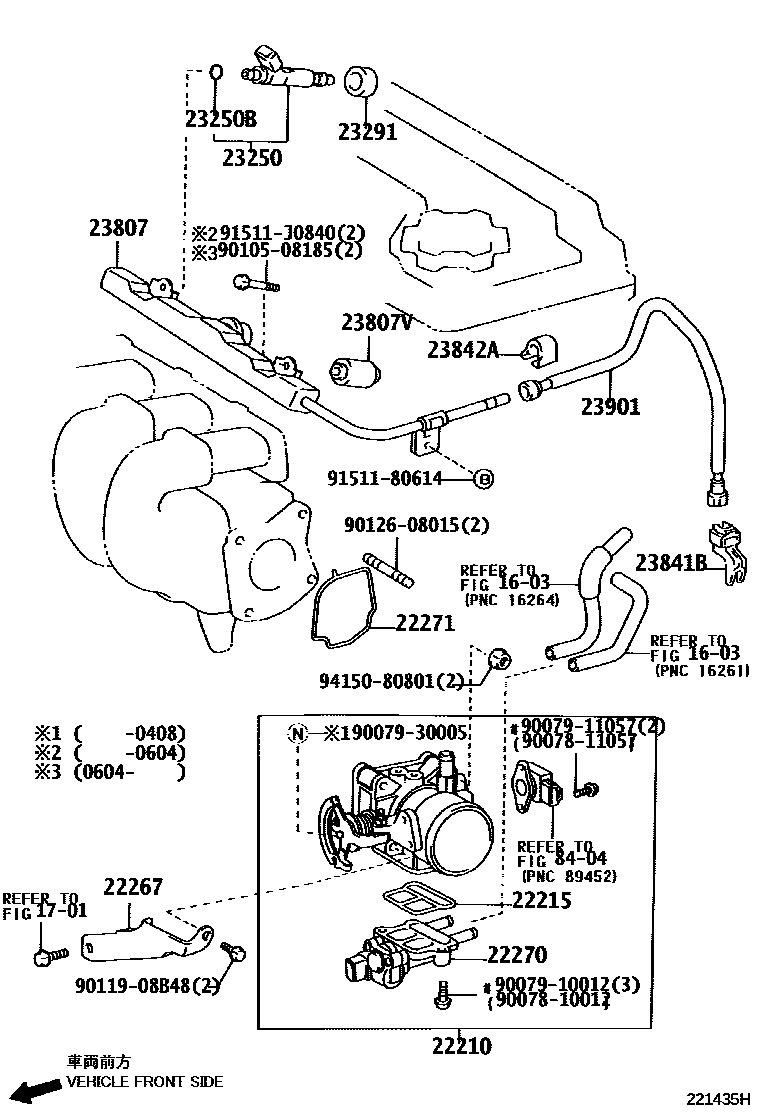

FUEL INJECTION SYSTEM

0001 1 0002 1 0003 1 0004 1

1603RADIATOR & WATER OUTLET

→ Go to FIG 16-03

1701MANIFOLD

→ Go to FIG 17-01

22210BODY ASSY, THROTTLE

main22210-0D070i1ZZFE..ZZE122200408-200707

(L)

main22210-0D080i3ZZFE,4ZZFE..ZZE120,121200208-200408

(L)

main22210-22110i2ZZGE..ZZE123200408-200707

main22210-22130i1ZZFE..ZZE122200408-200707

(J)

main22210-22150i3ZZFE,4ZZFE..ZZE120,121200208-200408

(J)

22215GASKET, THROTTLE BODY COVER

main22215-0D070i1ZZFE..ZZE122200408-200707

(L)

main22215-0D080i3ZZFE,4ZZFE..ZZE120,121200208-200408

(L)

main22215-74400i3ZZFE,4ZZFE..ZZE120,121200208-200408

(J)

main22215-7A680i2ZZGE..ZZE123200210-200408

22267BRACKET, THROTTLE BODY

main22267-22030i1ZZFE..ZZE122200408-200707

22270VALVE ASSY, IDLE SPEED CONTROL(FOR THLOTTLE BODY)

main22270-0D020i1ZZFE..ZZE122200408-200707

(L)

main22270-0D030i3ZZFE,4ZZFE..ZZE120,121200208-200408

(L)

main22270-22021i2ZZGE..ZZE123200210-200408

main22270-22050i3ZZFE,4ZZFE..ZZE120,121200408-200707

(J)

main22270-22060i1ZZFE..ZZE122200208-200303

(J)

main22270-22061i1ZZFE..ZZE122200408-200707

(J)

22271GASKET, THROTTLE BODY

main22271-0D040i3ZZFE,4ZZFE..ZZE120,121200212-200408

(L)

main22271-22040i1ZZFE..ZZE122200408-200707

main22271-22070×2i3ZZFE,4ZZFE..ZZE120,121200212-200408

(J)

main22271-88600i2ZZGE..ZZE123200408-200707

23250INJECTOR ASSY, FUEL

main23209-0D020×4i4ZZFE..ZZE120200208-200408

main23209-0D030×4i3ZZFE..ZZE121200208-200408

main23209-22040×4i1ZZFE..ZZE122200208-200408

main23209-22060-01×4i2ZZGE..ZZE123200408-200707

MARK WHITE

main23209-22060-02×4i2ZZGE..ZZE123200210-200408

MARK BLUE

23250BRING, O(FOR FUEL INJECTOR)

main90301-07024×4i1ZZFE,2ZZGE..ZZE122,123200208-200408

main90301-07030×4i3ZZFE,4ZZFE..ZZE120,121200208-200408

main90301-07037×4i1ZZFE,2ZZGE..ZZE122,123200607-200707

23291INSULATOR, INJECTOR VIBRATION

main23291-22010×4i3ZZFE,4ZZFE..ZZE120,121200208-200408

main23291-22020×4i1ZZFE..ZZE122200408-200707

main23291-41010×4i2ZZGE..ZZE123200210-200408

23807PIPE SUB-ASSY, FUEL DELIVERY

main23807-22030i1ZZFE,3ZZFE,4ZZFE..ZZE120,121,122200408-200707

main23807-88600i2ZZGE..ZZE123200210-200408

23807VSPACER, NO.1(FOR DELIVERY PIPE)

main90561-08055×2i1ZZFE,3ZZFE,4ZZFE..ZZE120,121,122200208-200408

main90561-08059×2i2ZZGE..ZZE123200408-200707

23841BCLAMP, FUEL PIPE, NO.1(FOR EFI)

main23841-21050i1ZZFE,2ZZGE,3ZZFE,4ZZFE..ZZE12#200705-200707

main23841-28010i1ZZFE,2ZZGE,3ZZFE,4ZZFE..ZZE12#200208-200408

23842ACLAMP, FUEL PIPE, NO.2(FOR EFI)

main23842-22020i1ZZFE,3ZZFE,4ZZFE..ZZE120,121,122200208-200408

main23842-28010i1ZZFE,3ZZFE,4ZZFE..ZZE120,121,122200408-200707

23901TUBE SUB-ASSY, FUEL

main23271-88601i2ZZGE..ZZE123200210-200408

main23901-22140i1ZZFE,3ZZFE,4ZZFE..ZZE120,121,122200208-200408

8404ELECTRONIC FUEL INJECTION SYSTEM

→ Go to FIG 84-04

9007810012

main90078-10012

9007811057

main90078-11057

9007910012

main90079-10012

9007911057

main90079-11057

9007930005

main90079-30005

9010508185

main90105-08185

9011908B48

main90119-08B48

9012608015

main90126-08015

9151180614

main91511-80614

91511J0840

main91511-J0840

9415080801

main94150-80801

27 parts on this diagram · 4 diagrams in section
