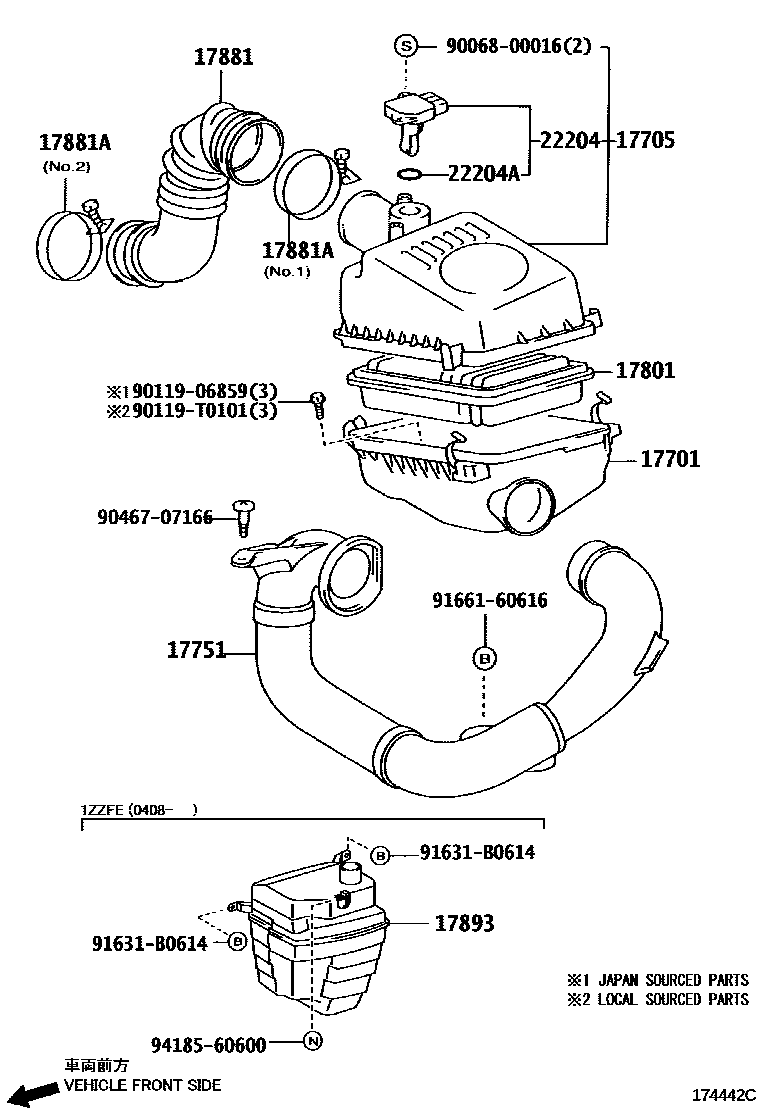

AIR CLEANER

0001 1 0002 1

17701CASE SUB-ASSY, AIR CLEANER

main17701-0D090i1ZZFE,3ZZFE,4ZZFE..ZZE120,121,122200208-200408

17705CAP SUB-ASSY, AIR CLEANER

main17705-0D090i1ZZFE,3ZZFE,4ZZFE..ZZE120,121,122200408-200707

main17705-22130i2ZZGE..ZZE123200210-200405

main17705-22131i2ZZGE..ZZE123200501-200707

17751INLET, AIR CLEANER, NO.1

main17751-0D080i2ZZGE,3ZZFE,4ZZFE..ZZE120,121,123200208-200408

main17751-0D090i1ZZFE..ZZE122200208-200408

main17751-21150i2ZZGE,3ZZFE,4ZZFE..ZZE120,121,123..5D200408-200707

main17751-22140i1ZZFE..ZZE122..5D200408-200707

17801ELEMENT SUB-ASSY, AIR CLEANER FILTER

main17801-22020i2ZZGE..ZZE123200208-200405

17881HOSE, AIR CLEANER, NO.1

main17881-0D040i3ZZFE,4ZZFE..ZZE120,121200408-200707

(L)

main17881-0D050i1ZZFE..ZZE122200408-200707

(L)

main17881-22070i3ZZFE,4ZZFE..ZZE120,121200408-200707

(J)

main17881-22080i1ZZFE..ZZE122200408-200707

(J)

main17881-22090i2ZZGE..ZZE123200210-200408

17881ACLAMP(FOR AIR CLEANER HOSE, NO.1)

main96111-10730i3ZZFE,4ZZFE..ZZE120,121200408-200707

NO.2

main96111-10800i1ZZFE..ZZE122; 2ZZGE,3ZZFE,4ZZFE..ZZE120,121,123200408-200707

NO.1

main96111-10850i2ZZGE..ZZE123200408-200707

NO.2

17893RESONATOR, INTAKE AIR

main17893-22020i1ZZFE..ZZE122200408-200707

main17893-64080i1ZZFE..ZZE122200208-200408

22204METER SUB-ASSY, INTAKE AIR FLOW

main22204-22010i2ZZGE..ZZE123200208-200405

22204ARING, O(FOR INTAKE AIR FLOW METER)

main90099-14141i1ZZFE,2ZZGE,3ZZFE,4ZZFE..ZZE12#200208-200408

9006800016

main90068-00016

9011906859

main90119-06859

90119T0101

main90119-T0101

9046707166

main90467-07166

91631B0614

main91631-B0614

9166160616

main91661-60616

9418560600

main94185-60600

16 parts on this diagram · 2 diagrams in section
