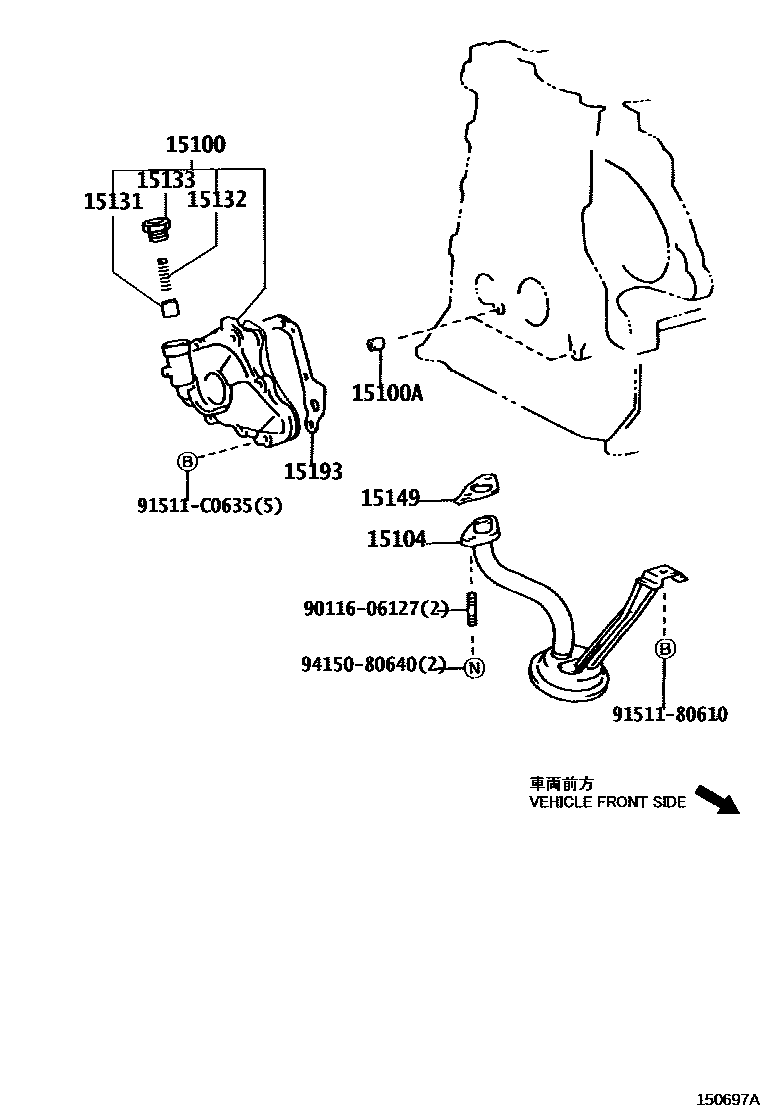

ENGINE OIL PUMP

0001 1 0002 1

15100PUMP ASSY, OIL

main15100-0D041i1ZZFE,3ZZFE,4ZZFE..ZZE120,121,122200208-200408

(L)

main15100-22041i1ZZFE,3ZZFE,4ZZFE..ZZE120,121,122200408-200707

(J)

main15100-88600i2ZZGE..ZZE123200408-200707

15100APIN, RING(FOR OIL PUMP SET)

main90253-09003×2i1ZZFE,2ZZGE,3ZZFE,4ZZFE..ZZE12#200208-200408

15104STRAINER SUB-ASSY, OIL

main15104-0D030i1ZZFE,3ZZFE,4ZZFE..ZZE120,121,122200208-200408

(L)

main15104-22023i1ZZFE,3ZZFE,4ZZFE..ZZE120,121,122200208-200408

(J)

main15104-88600i2ZZGE..ZZE123200608-200707

main15104-88601i2ZZGE..ZZE123200210-200408

15131VALVE, OIL PUMP RELIEF

main15131-03010i1ZZFE,3ZZFE,4ZZFE..ZZE120,121,122200208-200408

(L)

main15131-24010i1ZZFE,3ZZFE,4ZZFE..ZZE120,121,122200408-200707

main15131-46040i2ZZGE..ZZE123200408-200707

15132SPRING, OIL PUMP RELIEF VALVE

main15132-22040i1ZZFE,3ZZFE,4ZZFE..ZZE120,121,122200408-200707

main15132-46020i2ZZGE..ZZE123200210-200408

15133PLUG, OIL PUMP RELIEF VALVE

main15133-17010i2ZZGE..ZZE123200408-200707

main15133-20010i1ZZFE,3ZZFE,4ZZFE..ZZE120,121,122200208-200408

15149GASKET, OIL STRAINER FLANGE

main15149-0D020i1ZZFE,3ZZFE,4ZZFE..ZZE120,121,122200208-200306

(L)

main15149-22010i1ZZFE,3ZZFE,4ZZFE..ZZE120,121,122200306-200408

main15149-88600i2ZZGE..ZZE123200210-200408

15193GASKET, OIL PUMP

main15193-88600i2ZZGE..ZZE123200210-200408

main15197-0D020i1ZZFE,3ZZFE,4ZZFE..ZZE120,121,122200208-200306

(L)

main15197-22010i1ZZFE,3ZZFE,4ZZFE..ZZE120,121,122200208-200408

(J)

9011606127

main90116-06127

9151180610

main91511-80610

91511C0635

main91511-C0635

9415080640

main94150-80640

12 parts on this diagram · 2 diagrams in section
