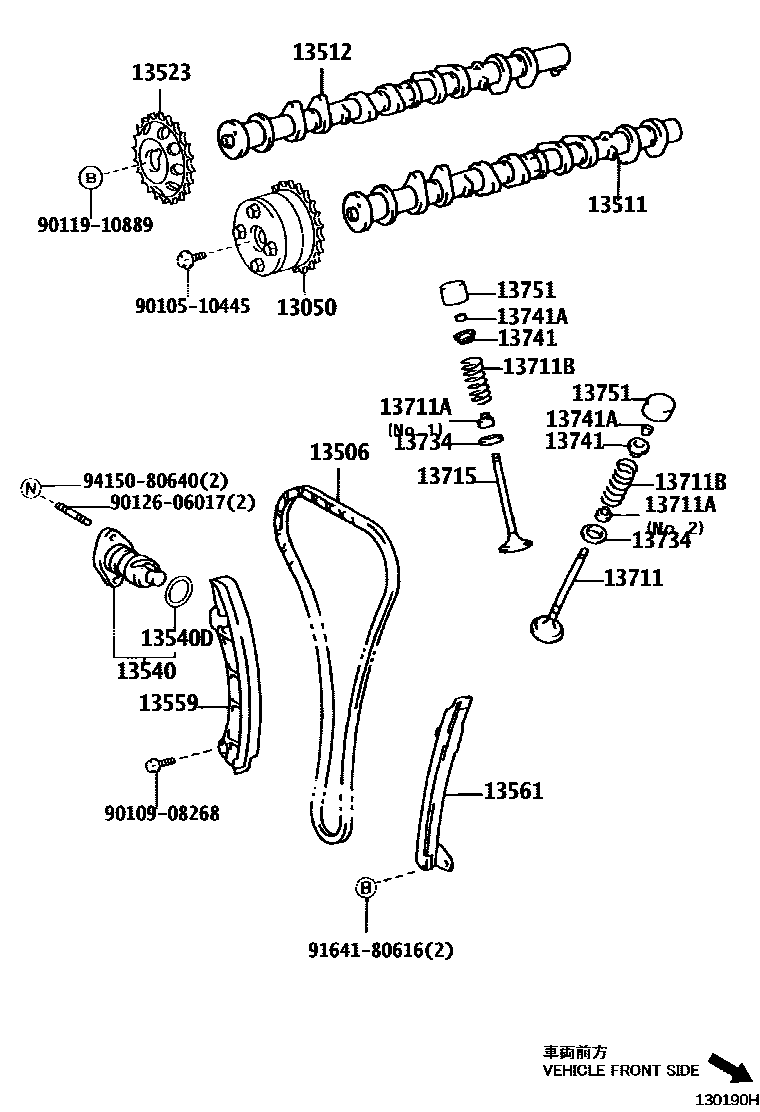

13050GEAR ASSY, CAMSHAFT TIMING
main13050-0D010i1ZZFE,3ZZFE,4ZZFE..ZZE120,121,122200603-200707 (L)
main13050-22011i1ZZFE,3ZZFE,4ZZFE..ZZE120,121,122; 2ZZGE..ZZE123200408-200607 (J)
main13050-22012i1ZZFE,3ZZFE,4ZZFE..ZZE120,121,122; 2ZZGE..ZZE123200607-200707 (J)
13506CHAIN SUB-ASSY
main13506-0D020i1ZZFE,3ZZFE,4ZZFE..ZZE120,121,122200408-200707 (L)
main13506-22030i1ZZFE,3ZZFE,4ZZFE..ZZE120,121,122200408-200707 (J)
13512CAMSHAFT, NO.2
main13502-22010i1ZZFE..ZZE122; 3ZZFE,4ZZFE..ZZE120,121200208-200210 (J)
main13502-22011i1ZZFE..ZZE122; 3ZZFE,4ZZFE..ZZE120,121200210-200408 (J)
13523GEAR OR SPROCKET, CAMSHAFT TIMING
main13523-0D020i1ZZFE,3ZZFE,4ZZFE..ZZE120,121,122200208-200408 (L)
main13523-22020i1ZZFE,3ZZFE,4ZZFE..ZZE120,121,122200208-200408 (J)
13540TENSIONER ASSY, CHAIN, NO.1
main13540-0D020i1ZZFE,3ZZFE,4ZZFE..ZZE120,121,122200208-200408 (L)
main13540-22022i1ZZFE,3ZZFE,4ZZFE..ZZE120,121,122200408-200707 (J)
13540DRING, O(FOR CHAIN TENSIONER)
main90301-22013i1ZZFE,2ZZGE,3ZZFE,4ZZFE..ZZE12#200208-200408 13559SLIPPER, CHAIN TENSIONER
main13559-22011i1ZZFE,3ZZFE,4ZZFE..ZZE120,121,122200208-200408 13561DAMPER, CHAIN VIBRATION, NO.1
main13561-22020i1ZZFE,3ZZFE,4ZZFE..ZZE120,121,122200208-200408 13711ASEAL OR RING, O(FOR VALVE STEM OIL)
main90913-02101×16i3ZZFE,4ZZFE..ZZE120,121200311-200408 NO.2,(J)
main90913-02111×8i1ZZFE..ZZE122; 3ZZFE,4ZZFE..ZZE120,121200408-200707 NO.1; NO.1,(J)
13711BSPRING, COMPRESSION(FOR INNER)
main90080-50253×16i3ZZFE..ZZE121; 4ZZFE..ZZE120200408-200707 (L); (L),L=43.4
main90501-29048×16i1ZZFE..ZZE122; 3ZZFE..ZZE121; 4ZZFE..ZZE120200408-200707 (J); (J),L=43.4
main90905-01084×16i3ZZFE,4ZZFE..ZZE120,121200311-200408 (J),W/O(PAINTED)
13734SEAT, VALVE SPRING
main13734-74010×16i1ZZFE,3ZZFE,4ZZFE..ZZE120,121,122200408-200707 13741RETAINER, VALVE SPRING
main13741-22021×16i3ZZFE,4ZZFE..ZZE120,121200311-200408 13741ALOCK, VALVE SPRING RETAINER
main90080-38115×32i3ZZFE..ZZE121; 4ZZFE..ZZE120200408-200707 (L)
13751LIFTER, VALVE
main13751-22040×16i1ZZFE,3ZZFE,4ZZFE..ZZE120,121,122200408-200707 T=5.06
main13751-22050×16i1ZZFE,3ZZFE,4ZZFE..ZZE120,121,122200408-200707 T=5.08
main13751-22060×16i1ZZFE,3ZZFE,4ZZFE..ZZE120,121,122200208-200408 T=5.10
main13751-22070×16i1ZZFE,3ZZFE,4ZZFE..ZZE120,121,122200208-200408 T=5.12
main13751-22080×16i1ZZFE,3ZZFE,4ZZFE..ZZE120,121,122200208-200408 T=5.14
main13751-22090×16i1ZZFE,3ZZFE,4ZZFE..ZZE120,121,122200208-200408 T=5.16
main13751-22100×16i1ZZFE,3ZZFE,4ZZFE..ZZE120,121,122200408-200707 T=5.18
main13751-22110×16i1ZZFE,3ZZFE,4ZZFE..ZZE120,121,122200408-200707 T=5.20
main13751-22120×16i1ZZFE,3ZZFE,4ZZFE..ZZE120,121,122200408-200707 T=5.22
main13751-22130×16i1ZZFE,3ZZFE,4ZZFE..ZZE120,121,122200408-200707 T=5.24
main13751-22140×16i1ZZFE,3ZZFE,4ZZFE..ZZE120,121,122200208-200408 T=5.26
main13751-22150×16i1ZZFE,3ZZFE,4ZZFE..ZZE120,121,122200208-200408 T=5.28
main13751-22160×16i1ZZFE,3ZZFE,4ZZFE..ZZE120,121,122200208-200408 T=5.30
main13751-22170×16i1ZZFE,3ZZFE,4ZZFE..ZZE120,121,122200208-200408 T=5.32
main13751-22180×16i1ZZFE,3ZZFE,4ZZFE..ZZE120,121,122200408-200707 T=5.34
main13751-22190×16i1ZZFE,3ZZFE,4ZZFE..ZZE120,121,122200408-200707 T=5.36
main13751-22200×16i1ZZFE,3ZZFE,4ZZFE..ZZE120,121,122200208-200408 T=5.38
main13751-22210×16i1ZZFE,3ZZFE,4ZZFE..ZZE120,121,122200208-200408 T=5.40
main13751-22220×16i1ZZFE,3ZZFE,4ZZFE..ZZE120,121,122200208-200408 T=5.42
main13751-22230×16i1ZZFE,3ZZFE,4ZZFE..ZZE120,121,122200408-200707 T=5.44
main13751-22240×16i1ZZFE,3ZZFE,4ZZFE..ZZE120,121,122200208-200408 T=5.46
main13751-22250×16i1ZZFE,3ZZFE,4ZZFE..ZZE120,121,122200408-200707 T=5.48
main13751-22260×16i1ZZFE,3ZZFE,4ZZFE..ZZE120,121,122200408-200707 T=5.50
main13751-22270×16i1ZZFE,3ZZFE,4ZZFE..ZZE120,121,122200208-200408 T=5.52
main13751-22280×16i1ZZFE,3ZZFE,4ZZFE..ZZE120,121,122200408-200707 T=5.54
main13751-22290×16i1ZZFE,3ZZFE,4ZZFE..ZZE120,121,122200208-200408 T=5.56
main13751-22300×16i1ZZFE,3ZZFE,4ZZFE..ZZE120,121,122200408-200707 T=5.58
main13751-22310×16i1ZZFE,3ZZFE,4ZZFE..ZZE120,121,122200408-200707 T=5.60
main13751-22320×16i1ZZFE,3ZZFE,4ZZFE..ZZE120,121,122200208-200408 T=5.62
main13751-22330×16i1ZZFE,3ZZFE,4ZZFE..ZZE120,121,122200208-200408 T=5.64
main13751-22340×16i1ZZFE,3ZZFE,4ZZFE..ZZE120,121,122200408-200707 T=5.66
main13751-22350×16i1ZZFE,3ZZFE,4ZZFE..ZZE120,121,122200208-200408 T=5.68
main13751-22360×16i1ZZFE,3ZZFE,4ZZFE..ZZE120,121,122200208-200408 T=5.70
main13751-22370×16i1ZZFE,3ZZFE,4ZZFE..ZZE120,121,122200408-200707 T=5.72
main13751-22380×16i1ZZFE,3ZZFE,4ZZFE..ZZE120,121,122200208-200408 T=5.74
